Atrix VACBPAI400 Owner's Manual

Ergopro aviation backpack vacuum
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1
Atrix

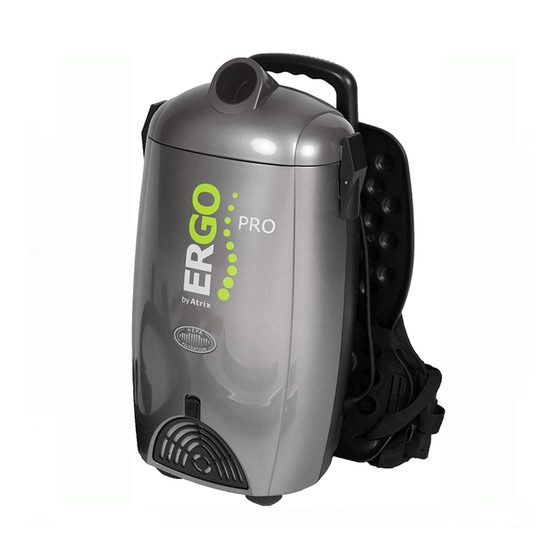

ERGOPRO Aviation
Backpack Vacuum
OWNER'S MANUAL
Model: VACBPAI400
115V, 400 Hertz, 1100W
Atrix International, Inc.
1350 Larc Industrial Blvd.
Burnsville, MN 55337
www.atrix.com
sales@atrix.com
952.894.6154 Tel
800.222.6154 Toll Free Tel
952.894.6256 Fax

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VACBPAI400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Atrix VACBPAI400

Summary of Contents for Atrix VACBPAI400

  • Page 1 Atrix ERGOPRO Aviation Backpack Vacuum OWNER’S MANUAL Model: VACBPAI400 115V, 400 Hertz, 1100W Atrix International, Inc. 1350 Larc Industrial Blvd. Burnsville, MN 55337 www.atrix.com sales@atrix.com 952.894.6154 Tel 800.222.6154 Toll Free Tel 952.894.6256 Fax...

  • Page 2: Important Safety Instructions

    5. Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to Atrix International. 6. Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges of corners.
  • Page 3 GETTING TO KNOW YOUR Ergo Series VACUUM 1. Replacement 1.5” Lid Grey (VACBPAILIDG) 1A Replacement Latch (BP34-38) 1B Replacement Handle, Webbing and Harness Assembly (VACBPHARNESS) 2. Replacement Hose (VACBPAI39) 3. Floor Tool w/Scallops (VACBPAI34) 4. Crevice Tool (VACBPAI36) 5. Round Dusting Brush (VACBPAI33) 6.

  • Page 4: Operating Instructions

    11 and 12. HEPA Pre-Motor Filter and Exhaust Filter (BPFILPACK) 13. Exhaust Filter Cover (BP18) Operating Instructions Warning: To reduce the risk of electric shock, the power cord must be disconnected from the power source before removing and replacing filters or performing maintenance.

  • Page 5: Cleaning The Exhaust Filter

    Cleaning the HEPA Pre-motor Filter 1. Press/pinch both tabs and pull upwards on filter. 2. Tap out the contents of the HEPA filter over a garbage can. 3. If necessary, thoroughly rinse the HEPA filter using regular tap water. Then shake off any excess water and allow to dry completely before reinserting it.
  • Page 6 Assembling Your Vacuum  Push/press fit the hose into the lid opening. (Fig 7) Fig. 8 Fig. 7  To connect the hose and attachment wand, slide the hose over the hose end wand attachment and over the bump by approx. ½”. (Fig. 8) ...
  • Page 7 Using Your Vacuum 1. Connect the extension cord to extension cord relief (BP99) (Fig 12) and connect vacuum plug to extension cord. Plug extension cord into 400 Hz power supply. 2. Connect hose and wand and/or utensil. 3. Correctly place shoulder straps on each shoulder and secure the waist band with hook and loop strips. (Fig.
  • Page 8 (1) year from the date of purchase. Should any failure to conform to this warranty appear within this period, Atrix will, at its option, repair or replace the defective product. It is the user’s responsibility to return the product, freight prepaid, to Atrix International.
