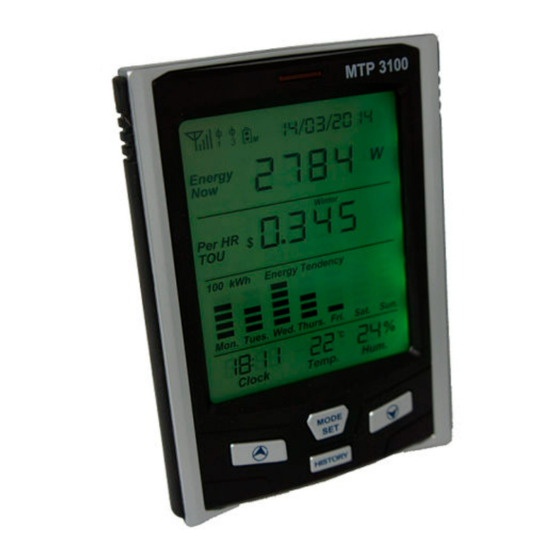

MTP 3100 Instruction Sheet

LINKING THE ENERGY MONITORING SYSTEM
Note : During the linking process, keep the transmitter as close as possible to the monitor.
COMPONENTS
Transmitter
2.
Power the MONITOR with batteries OR using
the power adaptor
4. IMPORTANT
During the Linking process, STEPS #5 and #6 :
Keep the Monitor and Transmitter as close as
possible.
6.
Press and hold down the linking button on the
front of the TRANSMITTER for 15 seconds, then
release. A red LED will flash rapidly on the
transmitter during the linking period.
MTP 3100
(Instruction Sheet)
1.
Monitor
3.
5.
7.
Remove plastic tab on TRANSMITTER
(Found on back of transmitter)
IMPORTANT
During the Linking process, STEPS #5 and #6 must be
performed seconds apart.
Begin by activating the signal search on the monitor,
followed soon after by activating the signal search on
the transmitter. The signal search on the monitor has a
duration of 1 minute.
Press and hold down the linking button on
the MONITOR for approx. 5 seconds, until
the LED light starts blinking then release the
button.
SUCCESSFUL linking is demonstrated by an antenna
in the top left corner of the screen. FAILED Linking will
not display an antenna on the left corner of the screen.
PASS FAIL
