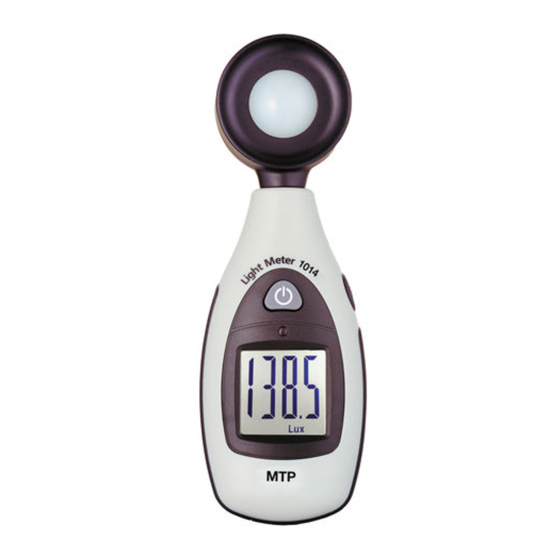

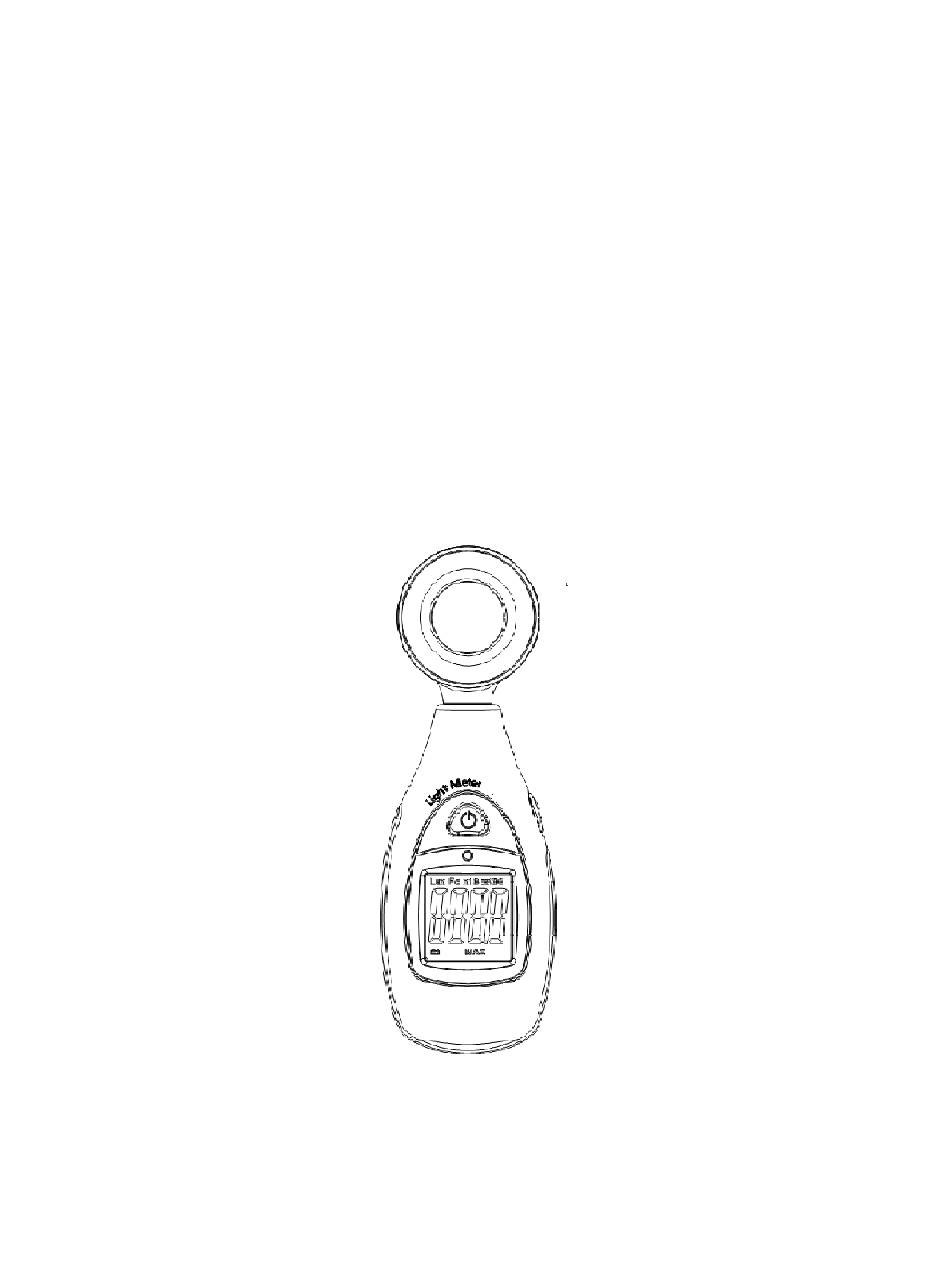

- Page 1 INSTRUCTION MANUAL Digital Light Meter Model MTP-1014 MTP Instruments...
-
Page 2: Table Of Contents
Table of Contents Introduction Features Page 1 Specifications Page 1 Panel description Page 2 Operating instructions Page 3 Recommended illumination Page 4 Battery replacement Page 5... -
Page 3: Features
Introduction Congratulations on your purchase of the MTP-1014 digital light meter. If used correctly and in accordance with this instruction manual, this meter will provide years of reliable service. 1. Features Easy to use, pocket size and light weight ... -
Page 4: Panel Description
3. Panel description 1. Photodetector Long life silicon photodiode inside the meter. 2. MAX and lux/fc function button Press this button briefly, the max reading will be displayed. Pressing it once again will release the hold function and allow another measurement. Pressing this function button for 2 seconds will change the display between lux and fc measurement units. -
Page 5: Operating Instructions
4. Operating instructions 1) Press the power button to start normal measurement. 2) Remove the photodetector cap and place the meter towards a light source in a horizontal position. 3) Read the illuminance value on the LCD display. If the environment is dark, the backlight will automatically turn on. -
Page 6: Recommended Illumination
10. Recommended Illumination Location Office Conference, reception room 200 ~ 750 Clerical work 700 ~ 1,500 Typing drafting 1,000 ~ 2,000 Packing work, entrance passage 150 ~ 300 Visual work at production line 300 ~ 750 Factory Inspection work 750 ~ 1,500 Electronic parts assembly line 1500 ~ 3000 Public room, checkroom... - Page 7 MTP Warranty MTP Instruments warrants this instrument to be free of defects in parts and workmanship for one (1) year from date of shipment. This warranty does not apply to defects resulting from action of the user such as misuse, improper wiring, operation outside of specifications, improper maintenance or repair, or unauthorized modifications.
- Page 8 Les Instruments Instruments Head Office 4409, Charleroi street Montreal-North, Quebec H1H 1T6 Telephone: (514) 326-7167 Fax: (514) 326-7835 Toll free number: 1-888-326-7167 Web site : www.mtpinc.com E-mail : info@mtpinc.com Distributed by...
