Safety International Safety Symbols This symbol, adjacent to another symbol or terminal, indicates that the user must refer to the manual for further information. This symbol, adjacent to a terminal, indicates that, under normal use, hazardous voltages may be present Double insulation SAFETY NOTES ...
Page 3
CAUTIONS Improper use of this meter can cause damage, shock, injury or death. Read and understand this user manual before operating the meter. Always remove the test leads before replacing the battery. Inspect the condition of the test leads and the meter itself for any damage before operating the meter.
Page 4

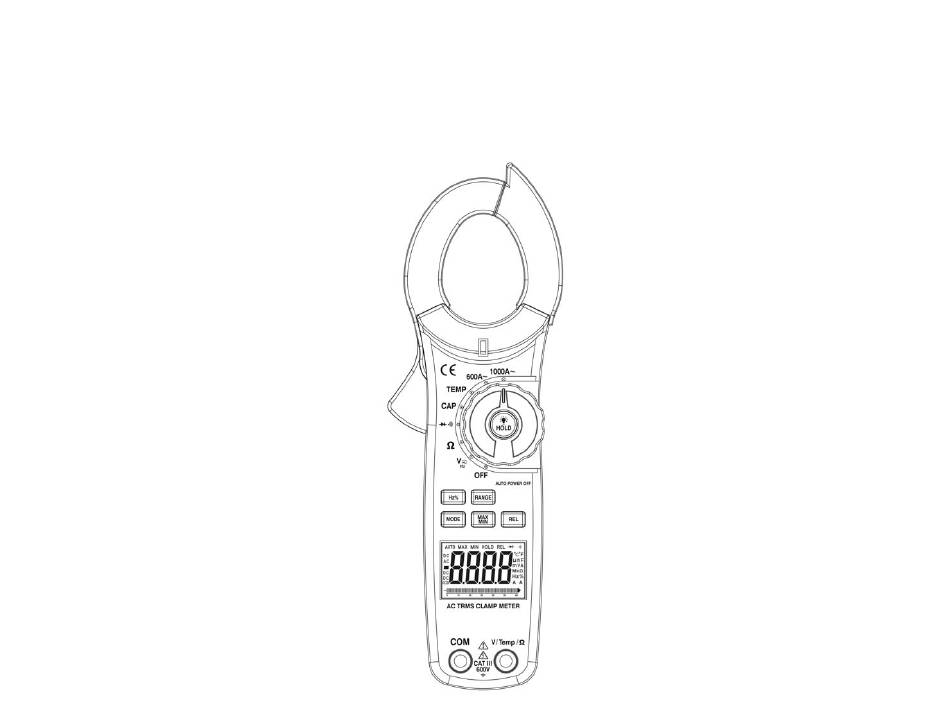

Frequency, Resistance, Diode, 1000V DC/AC Continuity , Capacitance Test Temperature (°C/°F) 1000V DC/ AC Meter Description 1. Current clamp 2. Non-contact AC voltage indicator light 3. Clamp trigger 4. Data Hold and Backlight button 5. Rotary Function swith 6. Hz% Hold button 7.
Page 5
8. HOLD Data Hold mode 9. °C,°F, ,m,V,A,K,M,Ω, Units of measure list 10. MAX MIN MAX/MIN mode 11. Hz % Frequency/duty cycle mode Specifications Function Range & Accuracy (% of reading) Resolution 600.0 AAC ± (2.8 % + 8 digits) AC Current (50/60Hz) 1000 AAC...
Page 6
(type-K) -4.0 to1400.0F ±(3%rdg+9F) (probe accuracy not included) Clamp size Opening 1.5" (40mm) approx Diode Test Test current of 0.3mA typical; Open circuit voltage 1.5V DC typical. Continuity Check Threshold <40; Test current < 0.5mA Low Battery Indication “ ” is displayed Over range Indication “OL”...
Page 7
level, appliance, portable equipment, etc., with transient overvoltages less than Overvoltage Cat. III Operation NOTICES: Read and understand all warning and precaution statements listed in the safety section of this operation manual prior to using this meter. Set the function select switch to the OFF position when the meter is not in use.
Page 8
4. Connect the test leads in parallel to the circuit under test. 5. Read the voltage measurement on the LCD display. Resistance Measurements Insert the black test lead into the negative COM terminal and the red test lead into the positive terminal. Set the function switch to the ...
Page 9
Capacitance Measurements WARNING: To avoid electric shock, disconnect power to the unit under test and discharge all capacitors before taking any capacitance measurements. Remove the batteries and unplug the line cords. 1. Set the rotary function switch to the cap position. 2.
(about 30 seconds). Read the temperature on the display. The digital reading will indicate the proper decimal point and value. WARNING: avoid electric shock, sure thermocouple has been removed before changing to another measurement function Non-Contact AC Voltage Measurements WARNING: Risk of Electrocution. Before use, always test the Voltage Detector on a known live circuit to verify proper operation 1.
REL BUTTON For Offset adjustment. Data Hold Button To freeze the LCD meter reading, press the data hold button. The data hold button is located on the left side of the meter (top button). While data hold is active, the HOLD display icon appears on the LCD.
Page 12
3. Replace the Requires One 9V battery 4. Re-assemble the meter MTP Warranty MTP Instruments warrants this instrument to be free of defects in parts and workmanship for one (1) year from date of shipment. This warranty does not apply to defects...
