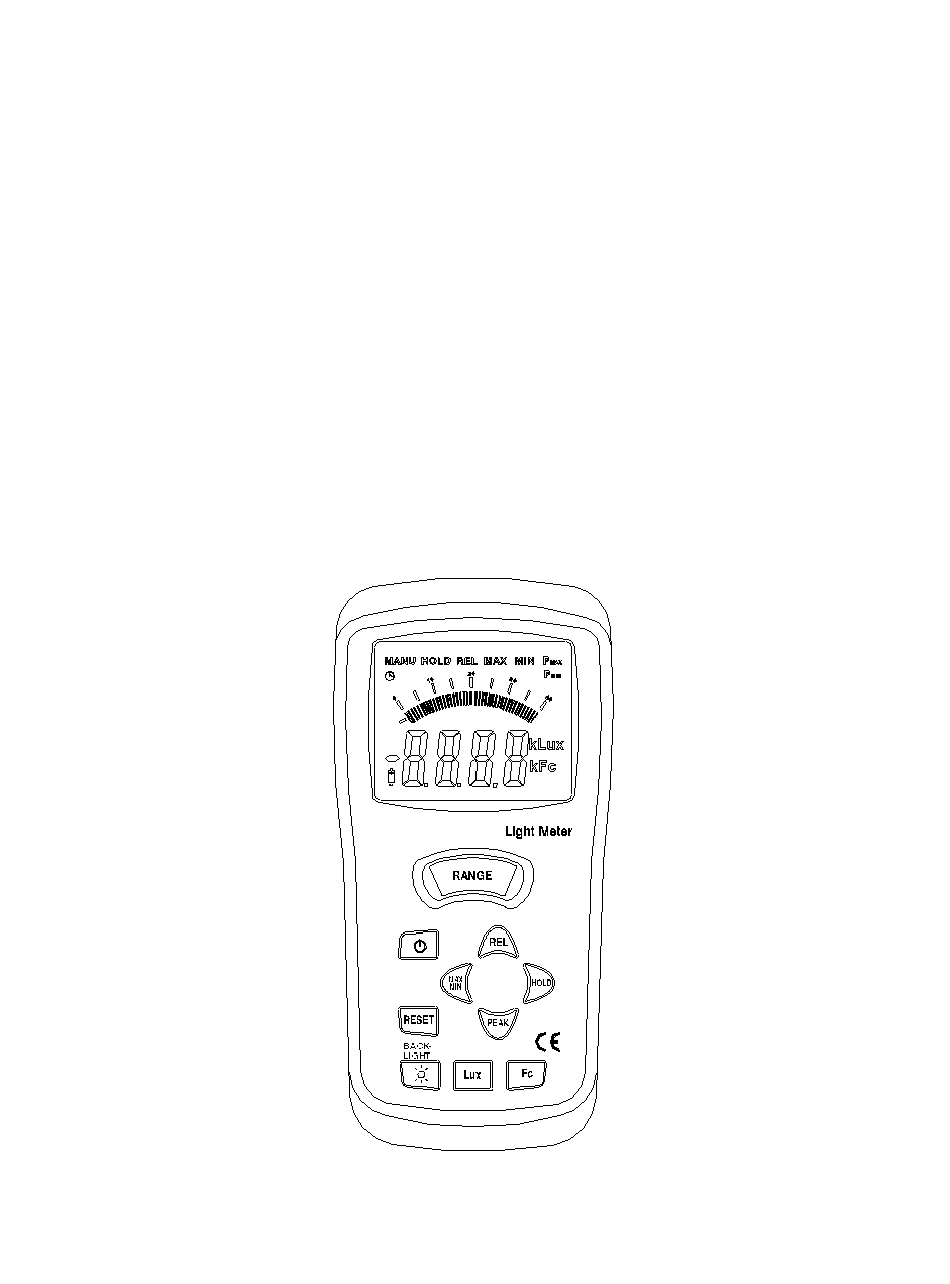

- Page 1 INSTRUCTION MANUAL DIGITAL ILLUMINANCE METER MODEL MTP-1210 MTP Instruments...
- Page 2 Ⅰ INSTRUCTION Congratulations on the purchase of your digital illuminance meter model MTP-1210. Proper use and care of this meter will provide many years of reliable service. The digital illuminance meter is a precision instrument used to measure illuminance (lux, footcandle) in the field.
- Page 3 Ⅱ FEATURES Light-measuring levels ranging form from: 0.01lux~0.1klux/0.01fc~0.01kfc,repeatedly. High accuracy and fast response. Data-hold function for holding measuring values. Unit and sign display for easy reading. Automatic zeroing. Meter corrected for spectral relative efficiency. ...
- Page 4 Ⅲ SPECIFICATIONS Display : 3-3/4 digit LCD with high speed 42 segment bargraph. Measuring Range: 40.00 lux,400.0 lux,4000 lux,40.00 Kkux and 300.0 klux /40.00 fc,400.0 fc,4000 fc,30.00 kfc. NOTE: 1fc=10.76lux, 1Klux=1000lux,1Kfc=1000fc Overrange Display: LCD will show “OL” symbol. ...
- Page 5 Sampling Rate: 13.3 times/sec of analog bar-graph indication; 1.3times/sec of digital display. Photo Detector: One silicon photo diode and spectral response filter. Operating temperature & Humidity : 0℃ to 40℃ (32℉to 104℉) & 0% to 80% RH. ...
- Page 6 Ⅳ NAME OF PARTS AND POSITIONS...
- Page 7 LCD Display: 3-3/4 digit displays with a maximum reading of 3999, and the indicating signs of measured values, unit function symbols and decimal points etc., are displayed. Range Selector key: It indicates 40.00 lux, 400.0 lux, 4000 lux, 40.00 Klux and 300.0 Klux /40.00 fc,400.0 fc,4000...
- Page 8 illuminance meter ON or OFF. MAX/MIN key: Maximum and minimum reading recorder control key. RESET key: Push function reset control key. BACKLIGHT key: Back ight control key. REL key: Relative reading control key. Data-Hold key: Data Hold control key. Peak Hold key: Peak Hold recorder control key. 10.
- Page 9 Remove the photo detector cap and face it light source in a horizontal position. Read the illuminance nominal from the LCD display. Overrange: If the instrument only displays “OL”, the input signal is too strong, and a higher range should be selected.
- Page 10 Maximum Minimum recorder mode: Press MAX/MIN key to cycle through Maximum(MAX) reading, Minimum(MIN) reading and current reading(MAX/MIN blink) recorder mode. Press MAX/MIN key two seconds to exit this mode. Relative reading mode: Press REL key to enter Relative mode. The display shows zero value and the current reading will be stored as a zero-in value.
- Page 11 Ⅵ BATTERY CHECK-UP & REPLACEMENT When the battery power is not sufficient, LCD will display low battery, and replacement of one new battery is required. After turning off the meter, remove the battery cover with a screwier. Disconnect the battery from the instrument and replace it with a standard 9V battery and replace the cover.
- Page 12 Ⅷ MAINTENANCE The white plastic disc on the top of the detector should be cleaned with a damp cloth when necessary. Do not store the instrument where temperature or humidity is excessively high. The reference level, as marker on the face plate, is the tip of the photo detector globe.
- Page 13 Ⅸ RECOMMENDED ILLUMINATION 1fc=10.76Lux LOCATIONS Conference, 200~750 18~70 OFFICE Reception room Clerical work 700~1,500 65~140 Typing drafting 1,000~2,000 93~186 Visual work at 300~750 28~70 FACTORY production line Inspection work 750~1,500 70~140 Electronic parts 1,500~3,000 140~279 assembly line Packing work, 150~300 14~28 Entrance passage Public room,...
- Page 14 Indoors Stairs 150~200 14~18 STORE Corridor Show window, 750~1,500 70~140 Packing table Forefront of show 1,500~3,000 140~279 window Sickroom, 100~200 9~18 HOSPITAL Warehouse Medical Examination 300~750 28~70 Room Operating room, 750~1,500 70~140 emergency treatment Auditorium, Indoor 100~300 9~28 SCHOOL Gymnasium Class room 200~750 18~70...
- Page 15 Warranty Clause MTP Instruments warrants this instrument to be free of defects in parts and workmanship for one (1) year from date of shipment. This warranty does not apply to defects resulting from action of the user such as misuse,...
- Page 16 Les Instruments Instruments Head Office 4409, Charleroi street Montreal-North, Quebec H1H 1T6 Telephone: (514) 326-7167 Fax: (514) 326-7835 Toll free number: 1-888-326-7167 Website: www.mtpinc.com E-mail: info@,mtpinc.com Distributed by:...
