MTP -3094 Instruction Manual

Ac/dc clamp meter
Hide thumbs
Table of Contents

Advertisement

Quick Links

MTP

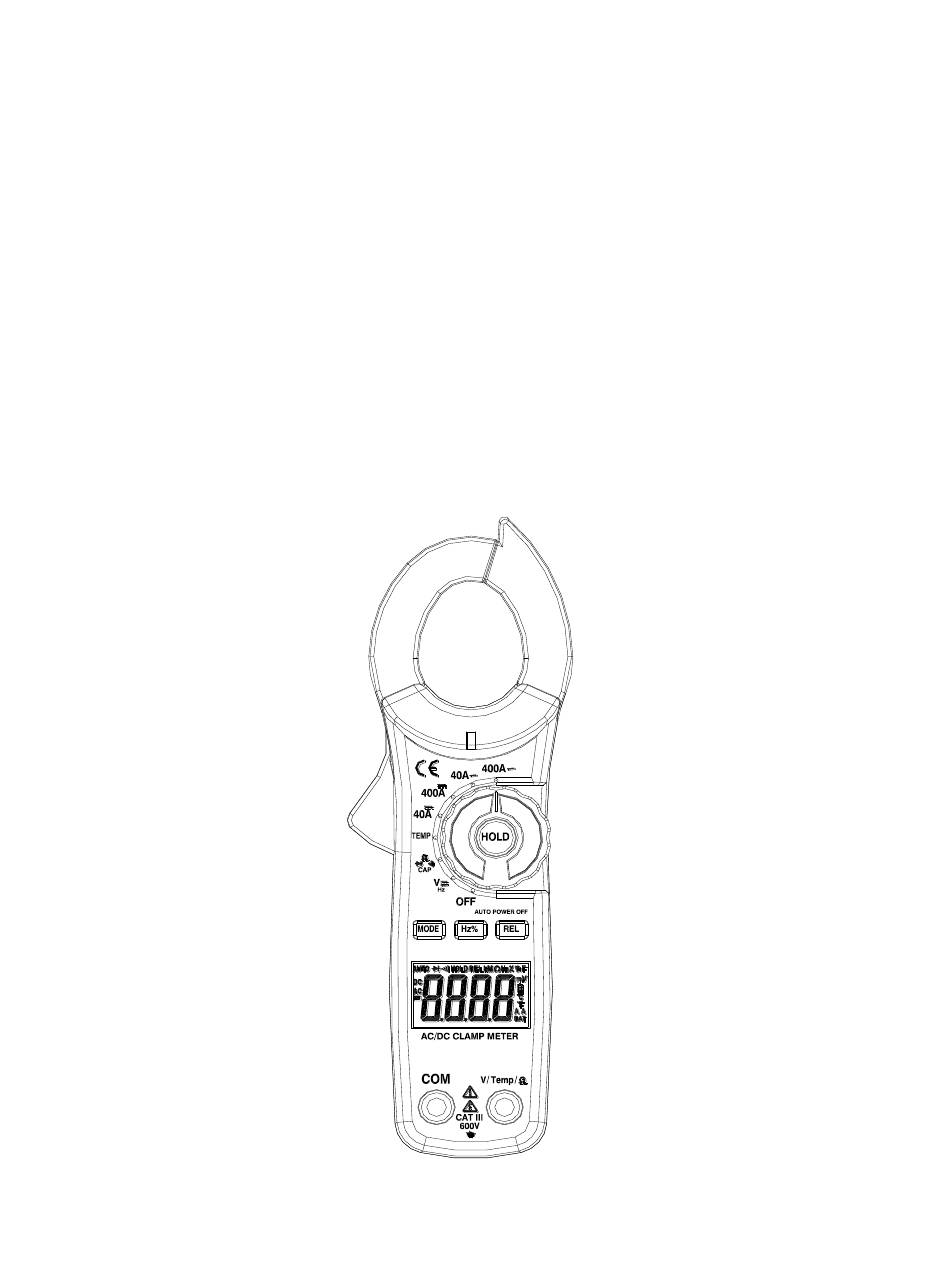

Instruction Manual
AC/DC Clamp Meter
Model MTP-3094
MTP Instruments

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MTP-3094 and is the answer not in the manual?

Questions and answers

Related Manuals for MTP MTP-3094

Summary of Contents for MTP MTP-3094

  • Page 1 Instruction Manual AC/DC Clamp Meter Model MTP-3094 MTP Instruments...

  • Page 2: Table Of Contents

    Table of Contents Introduction Page 1 International Safety Symbols Page 1 Safety Notes Page 1 Warnings Page 1 Caution Page 2 Meter Description Page 3 Meter’s Specifications Page 4 Operation Page 6 AC/DC Current Measurement Page 6 AC/DC Voltage Measurement Page 6 Resistance Measurement Page 7...

  • Page 3: Introduction

    Introduction Congratulations on your purchase of our AC/DC Clamp Meter, Model MTP-3094. Careful use of this meter will provide years of reliable service. International Safety Symbols This symbol, adjacent to another symbol or terminal, indicates that the user must refer to the manual for further information.

  • Page 4: Caution

    CAUTION  Improper use of this meter can cause damage, shock, injury or death. Read and understand this user’s manual before operating the meter.  Always remove the test leads before replacing the battery.  Inspect the condition of the test leads and the meter itself for any damage before operating the meter.

  • Page 5: Meter Description

    Meter Description 1. Current clamp 2. Non-contact AC voltage indicator light 3. Clamp trigger 4. Data Hold button 5. Rotary function switch 6. MODE select button 7. HZ% Hold button 8. Relative button 9. LCD display 10. COM input jack 11.

  • Page 6: Meter's Specifications

    Meter’s Specifications Functions Range & Resolution Accuracy (% of reading)  (2.5% of reading + 8 digits) 40.00 A AC AC Current (50/60Hz) 400.0A AC  (2.8% of reading + 8 digits) 40.00A DC  (2.5% of reading + 5 digits) DC Current ...
  • Page 7 Meter’s Specifications Clamp size : opening 1.2" (30mm) approx. Diode test : test current of 0.3mA typical ; open circuit voltage 1.5V DC typical Continuity check: treshold <150Ω ; test current <0.5mA Low battery indication: is displayed Over range indication: is displayed "OL"...

  • Page 8: Operation

    Operation Note: Read and understand all warning and precaution statements listed in the safety section of this instruction manual prior to using the meter. Set the function select switch to the OFF position when the meter is not in use. AC/DC Current Measurement WARNING : Ensure that the test leads are disconnected from the meter before making current clamp measurements.

  • Page 9: Resistance Measurement

    Resistance Measurement 1. Insert the black test lead into the negative (COM) terminal and the red test lead into the positive (V/Ω/Temp) terminal. 2. Set the function switch to the "Ω " position. 3. Touch the test probe tips across the circuit or component under test. It is best to disconnect one side of the device under test so the rest of the circuit will not interfere with the resistance reading.

  • Page 10: Capacitance Measurement

    Capacitance Measurement WARNING: To avoid electric shock, disconnect power to the unit under test and discharge all capacitors before taking any capacitance measurements. Remove the batteries and unplug the line cords. Switch the rotary function switch to the "Ω " position.

  • Page 11: Non-Contact Ac Voltage Measurement

    Non-Contact AC Voltage Measurement WARNING: Risk of electrocution. Before use, always test the voltage detector on a known live circuit to verify proper operation. 1. Touch the probe tip to the hot conductor or insert into the hot side of the electrical outlet. 2.
  • Page 12 Warranty MTP Instruments warrants this instrument to be free of defects in parts and workmanship for one (1) year from date of shipment. This warranty does not apply to defects resulting from action of the user such as misuse, improper wiring, operation outside of specification, improper maintenance or repair, or unauthorized modification.
  • Page 13 Les Instruments Instruments Head Office 4409, Charleroi street Montreal-North, Quebec H1H 1T6 Telephone : (514) 326-7167 Fax : (514) 326-7835 Toll Free Number: 1-888-326-7167 Web Site : www.mtpinc.com E-mail : info@mtpinc.com Distributed by :...
