Summit SP6DS2D7 Quick Start Manual

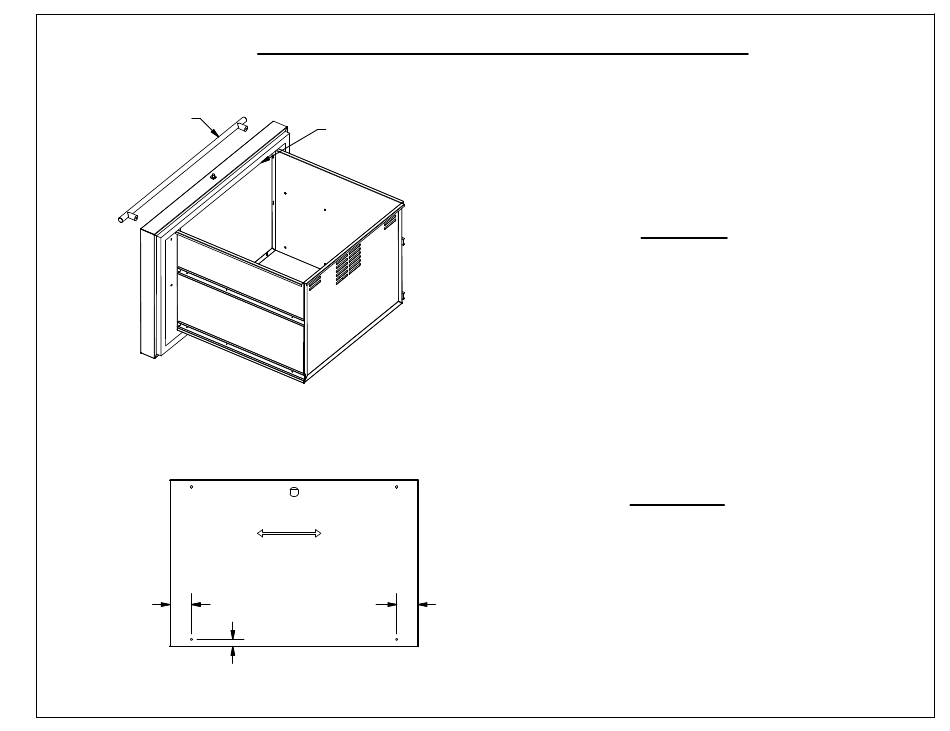

Directions for Applying Overlay Panel

Handle
2 3/4
11/16
Gasket
2 3/4

Materials Supplied:

1 - Drill Bit 3/16"
4 - Screws M4 x 25 Flat Hd Phillips (For Handle)
8 - Screws #10 x 2.25" Phillips

Step 1

1) Remove both drawers from unit by opening drawers
and pushing in black tabs on either side of the slides.
You must hold in tabs to disengage slide.
2) Peel back gasket (Fig A) and remove 2 screws to
remove handle.
3) Throw out the 2 screws that attach the handle.

Step 2

1) Drill the bottom 2 holes shown in the drawing
using the supplied drill bit on the drawer front.
2) Cut overlay panels as follows:
Top (outdoor unit):
Top (indoor unit):
Bottom (outdoor unit): 23-7/16 x 13-3/16
Bottom (indoor unit): 23-7-16 x 12-9/16
23-7/16 x 16-5/16
23-7/16 x 15-11/16
