Step 3; Step 4 - Summit SP6DS2D7 Quick Start Manual

19 3/8
M4 x 25
Flat Head
2 Places
#10 x 1.75"
2 Bottom
1 1/4
Overlay
Panel
#10 x 1.75"
2 Top

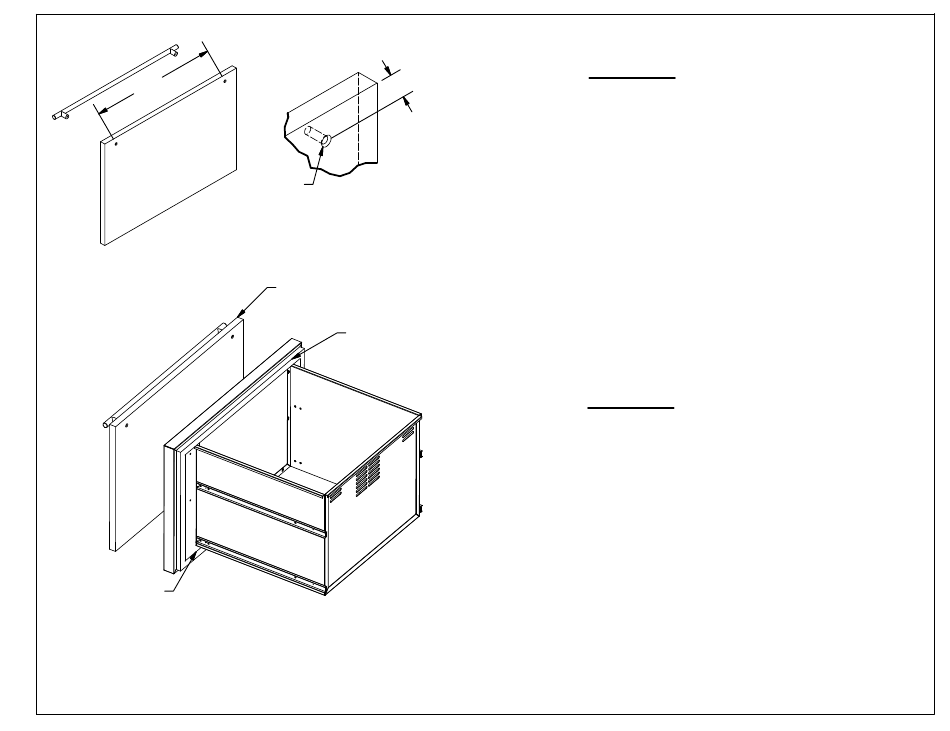

Step 3

1) If reusing the handle that came with the unit, drill two
holes 19 3/8" apart and a minimum of 1 1/4" from the
top.
2) Screw handle on using the supplied screws. Drive screws
flush with panel. Screws are designed for 3/4" overlay panel.
If thickness other than this is used, customer will supply.

Step 4

1) Peel back the gasket and attach the overlay panel
to the drawer face using the 4 supplied screws and
thru the 4 existing clearance holes.
2) Install both drawers back into unit.
2 of 2
Q119
01/04/17
