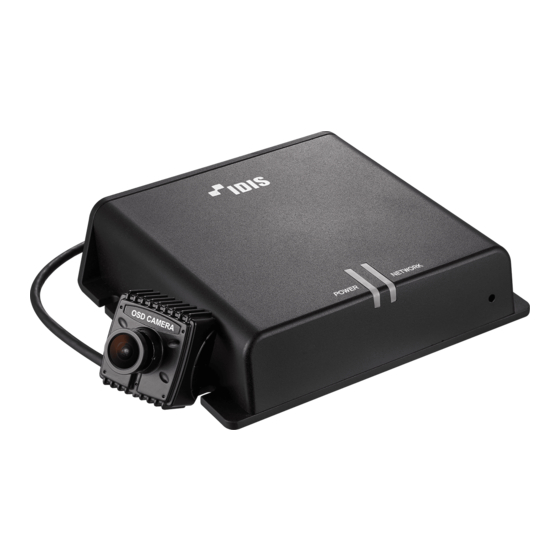

Idis DC-V3213XJ Operation Manual
  1. Manuals
  2. Brands
  3. Idis Manuals
  4. Security Camera
  5. DC-V3213XJ
  6. Operation manual

Idis DC-V3213XJ Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Network
Camera
Operation Manual
DC-V3213XJ
Powered by

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DC-V3213XJ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Idis DC-V3213XJ

Summary of Contents for Idis DC-V3213XJ

  • Page 1 Network Camera Operation Manual DC-V3213XJ Powered by...
  • Page 2 Before reading this manual This is a basic operation manual for use of an IDIS camera module and a main unit. Users who are using this product for the first time, as well as users with experience using comparable products, must read this operation manual carefully before use and heed to the warnings and precautions contained herein while using the product.
  • Page 3 Before reading this manual Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1.
  • Page 4 IDIS Co., Ltd. reserves all rights concerning this manual. Use or duplication of this manual in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this manual are subject to change without prior notice for reasons such as functionality enhancements.

  • Page 5: Table Of Contents

    Table of Contents Part 1 - Remote Setup ........7 Remote Setup .
  • Page 6 Part 2 - IDIS Web ........

  • Page 7: Part 1 - Remote Setup

    Configure basic network camera settings and all other system settings. Screen images may vary depending on the model. Launch the IDIS Discovery program and then from the main screen, select a network camera whose settings you wish to change. Click on the Setup icon.

  • Page 8: Quick Setup

    Part 1 - Remote Setup Quick Setup From the Remote Setup screen, select the menu on the left to display the current settings. Select an option under the menu to change the corresponding settings. Once you have changed Quick Setup allows you to set up System, Network, the settings, click Save to apply the settings.

  • Page 9: General

    There may be some more settings that cannot be changed, too. If you want to change those settings, connect to the camera by using the IDIS Discovery program. - ONVIF Event Type •...

  • Page 10: Date/Time

    Part 1 - Remote Setup Date/Time User/Group • Date/Time: Change the camera’s date/time settings and display formats and configure the time zone and • User/Group: Change remote camera control daylight saving time settings. Click Save to apply the permission settings for users and user groups. changes right away.

  • Page 11: Network

    Part 1 - Remote Setup Network • User/Group settings can only be configured by users belonging to the Administrator group. • There is no default password for the Administrator group's admin user. • Standard groups (Administrator, Operator, and User) cannot be edited or deleted. Authorities assigned here apply identically to ONVIF protocol user groups.

  • Page 12: Ip Address

    Part 1 - Remote Setup IP Address Select Use FEN to enable the FEN feature. • Type: Select the type of network you are using. If this option has been changed, click Save to apply the current settings, and then restart Remote Setup. If you •...

  • Page 13: Port/Qos

    By enabling IDIS Web and RTSP ports, you has been configured under Network setup, you can will be able to use the IDIS Web program or a media enter the FEN Server’s domain name instead of its IP player that supports RTSP (Real-Time Streaming address for the FEN Server setting.
  • Page 14 Part 1 - Remote Setup • Use UPnP: If the camera is connected to the network via an IP router (or NAT), select this option to connect • Port numbers of the remote program must be to the camera without setting up port forwarding. updated whenever the camera's port numbers are The IP router (or NAT) must be enabled with UPnP in changed.

  • Page 15: Bandwidth Control

    Part 1 - Remote Setup Bandwidth Control Security Regulates the camera’s network bandwidth use based on network traffic fluctuations. • IP Filtering: Select this option to enable IP Filtering. IP Filtering allows camera access from certain IP addresses and blocks access from others. Select Network Bandwidth limit and then specify - Add: Add new IP addresses to Allow List or Deny the maximum bandwidth.

  • Page 16: Ieee 802.1X

    Part 1 - Remote Setup Video IEEE 802.1X Select the IEEE 802.1X option to enable IEEE 802.1X network connection authentication. Configure Camera, Streaming, Webcasting, MAT, and Privacy Masking options. • Certificates: Upload a certificate or a private key. You may be prompted to enter a password for the private key.

  • Page 17: Camera

    Part 1 - Remote Setup Camera Exposure Configure Exposure settings. Image Sensor Configure Image Sensor settings. • AE Target Gain: Specify exposure compensation’s target gain. Exposure is compensated automatically based on the specified target gain. Higher the gain, brighter the images. •...

  • Page 18: Streaming

    Part 1 - Remote Setup Streaming Day & Night Configure Day & Night settings. • Primary/Secondary/Tertiary/Quaternary: • B&W Mode: Display the images in greyscale for Multistreaming is supported. Enable/disable greater clarity in low-lighting conditions. streaming use. The stream you set first has priority. - On/Off: Enable/disable B&W Mode.

  • Page 19: Webcasting

    Part 1 - Remote Setup • Intelligent Codec: Analyze real-time video Webcasting intelligently to minimize bitrate while maintaining frame rate and image quality. Use the webcasting service to view live images from the In environments where there are many video changes, camera on a web site.

  • Page 20: Mat

    Part 1 - Remote Setup Privacy Masking Select the MAT option to use the MAT (Motion Adaptive Select Privacy Masking to set up a privacy mask over Transmission) feature during video transmission and a specific area. The section on which a privacy mask is recording.

  • Page 21: Audio

    Part 1 - Remote Setup Audio Input/Output Configure audio in/out settings. • Audio Codec: Select an audio codec. • Input: Select an option and then adjust the volume. • Output: Select an option and then adjust the volume. Cameras do not feature built-in audio amplifier units and therefore require the user to purchase a speaker system with a built-in amplifier separately.

  • Page 22: Event Action

    Part 1 - Remote Setup Event Action Alarm out Designate event detection alert actions. Select Alarm Out to enable alarm out. • Dwell Time: Designate the alarm out duration. When an event occurs, alarm out will be generated for the specified duration.

  • Page 23: Email

    Select Email to send out emails. Select Remote Callback to send callback messages to a remote system. • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback feature.

  • Page 24: Audio Alarm

    Part 1 - Remote Setup Audio Alarm FTP Upload Select Audio Alarm to generate audio. Select FTP Upload to upload .jpg image of the event detected to an FTP server. • List: Displays a list of audio files to playback. Click Add or Remove to add/remove audio (.wav, files.
  • Page 25 Part 1 - Remote Setup • When specifying the Upload Path or Base File Name, you cannot use special characters such as \, /, #, *, |, :, ", <, >, and ?. • The resolution of FTP upload image can change depending on the resolution setting applied under Video >...

  • Page 26: Record

    Part 1 - Remote Setup Record Schedule Select the Schedule tab and set up a recording schedule. Select Record to record video on the SD memory card. First, make sure that an SD memory card (Class 6 or • Mode: Choose a recording mode. higher) has been properly inserted.

  • Page 27: Event

    - Event: Designate the stream to use for recording in event mode (post-event). • Recordings saved on the SD memory card can be searched and played back from the IDIS Solution Suite Compact program or remotely from the remote program. For more information, refer to each program's operation manual.

  • Page 28: Alarm In

    • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback feature.

  • Page 29: Motion Detection

    • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback feature.

  • Page 30: Trip-Zone

    • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback feature.

  • Page 31: Audio Detection

    • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback feature.

  • Page 32: Tampering

    • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback feature.

  • Page 33: Video Loss

    • Alarm In Bad: Select to check the alarm in status and then set up a schedule. • Not supported from the IDIS Web program. - Send Email: Select to send out an email if no • The camera must be registered to the remote change is detected in the alarm in status.
  • Page 34 Action must be configured correctly in order to send out emails and messages. • Remote Callback is not supported on IDIS Web. • The camera must be registered to the remote system in order to use the Remote Callback feature.

  • Page 35: Part 2 - Idis Web

    – Tools → Internet Options → Advanced → Security → Use TLS 1.0 (select) • If connecting by entering an IP address and a port number, you can connect by entering just the IP address if IDIS Web connection port number has been set to 80 (443 when entering https).
  • Page 36 Run as administrator option. Otherwise, certain IDIS Web functions might not be available. • When running IDIS Web, the bottom section of the screen may get cut off if the address bar or the status bar is shown.

  • Page 37: Web Live Mode

    A remote web monitoring program that allows you to monitor images from remote locales in real-time. & Press to terminate IDIS Web. Place the mouse pointer on the logo to check IDIS Web's version. TYPE 1 Displays the current time. Click to view the video in full screen.
  • Page 38 Part 2 - IDIS Web Used to adjust live video quality. Click to control the alarm out device connected to the camera. Event status window at the bottom of the screen displays a list of events detected at remote locales.

  • Page 39: Web Search Mode

    113.49 NC-D320-IP & Press to terminate IDIS Web. Place the mouse pointer on the logo to check IDIS Web's version. TYPE 1 Displays time information of the video recording from the remote locale. Click to view the video in full screen. Press the ESC key on the keyboard to return to the previous screen.
  • Page 40 Part 2 - IDIS Web Zoom in or out on the video. Adjust image brightness. Apply image filters (Sharpen, Blur, Equalizer, Interpolation, and Revert) to the images. Image calibration is applied only during the paused state. TYPE 1 Use the calendar to search for video recordings by specific dates.

  • Page 41: Part 3 - Appendix

    Part 3 - Appendix Setup Menu Tree (Remote Setup) Remote Setup Quick Setup System Network Video Audio System General Date/Time User/Group Network IP Address Port/QoS Bandwidth Control Security IEEE 802.1X Video Camera Streaming Webcasting Privacy Masking Audio In/Out Event Action Alarm Out Email Remote Callback...

  • Page 42: Index

    Part 3 - Appendix Index Quality Bitrate Control Remote Port Resolution RTSP Port Camera Name Date/Time DSCP Time Sync FEN Name FEN Server Use FEN Frame Rate Use HTTPS User/Group Use UPnP IDIS Web port IPFiltering Network Bandwidth Limit ONVIF Protocol V2.2...
  • Page 43 IDIS Co., Ltd. For more information, please visit at www.idisglobal.com...
