- Page 1 Network Camera Quick Guide DC-V4212XJ(-A) Powered by...
-
Page 2: Safety Precautions
Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1. Read Instructions 10. Overloading All the safety and operating instructions should be read before the Do not overload wall outlets and extension cords as this can result appliance is operated. -
Page 3: Fcc Compliance Statement
IDIS Co., Ltd. reserves all rights concerning this document. Use or duplication of this document in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this document are subject to change without prior notice for reasons such as functionality enhancements. -
Page 4: Camera Module

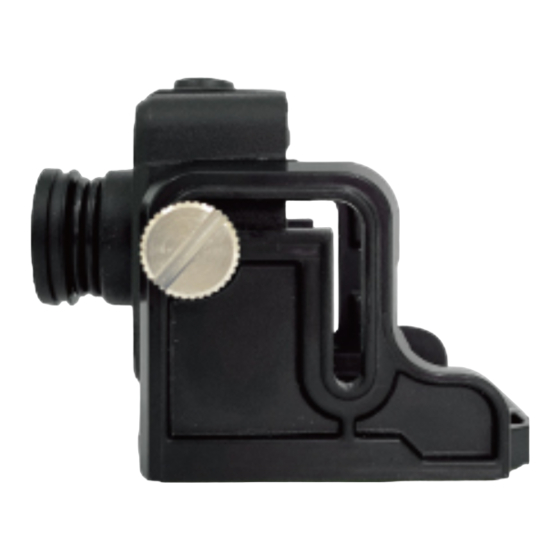

Overview • Product color and design may vary depending on the model. • For more details on each part name, refer to the manual. Camera Module Main Unit DC-V4212XJ(-A)-2.4mm Front Back DC-V4212XJ(-A)-4.3mm Status LED SD Memory Card Slot Factory Reset Switch... -
Page 5: Camera Installation
Camera Installation Installation Remove a sheet on the double-sided tape on the bracket, and attach the bracket to a wall by matching the hole. When attaching the bracket, remove dust or oil and Inserting a SD Memory Card moisture from the installation surface and apply sufficient pressure to ensure that the applied face Pull and lift the cover to open. - Page 6 Check the location of the arrow as shown below. And assemble the camera to the bracket so that the arrow is located upwards. Fix the camera using left and right screws and connect the cable. • The area with the arrow corresponds to the top part of the image.
- Page 7 Fix the main unit to a wall or ceiling using screws. Connect the main unit with the cable of the camera module. Connect external devices, the network, and the power adapter. Connect the power.
-
Page 8: Specifications
Specifications Exterior Camera Body only : 37mm x 37mm x 26.3mm (1.45” x 1.45” x 1.03”) Dimensions (W Module V4212XJ(-A) With bracket : 58mm x 45mm x 55.3mm (2.28” x 1.77” x 2.17”) x H x D)* 4.3mm Body only : 37mm x 37mm x 30.5mm (1.45” x 1.45” x 1.2”) V4212XJ(-A) With bracket : 58mm x 45mm x 59.5mm (2.28”... - Page 12 IDIS Co., Ltd. For more information, please visit www.idisglobal.com...
