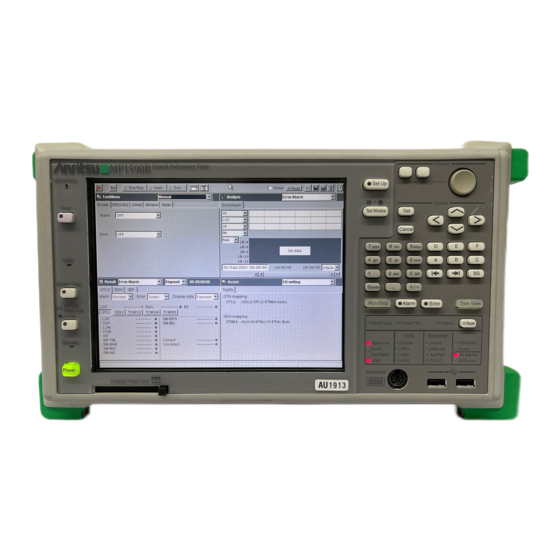

MP1590B-30
High Precision
Jitter Analysis
Operation Manual
Fourth Edition
• For safety and warning information, please read this
manual before attempting to use the equipment.
• Additional safety and warning information is pro-
vided within the MP1590B Network Performance
Tester Operation Manual. Please also refer to this
document before using the equipment.
• Keep this manual with the equipment.
ANRITSU CORPORATION
Document No.: M-W2352AE-4.0
Advertisement
Related Manuals for Anritsu MP1590B-30
Summary of Contents for Anritsu MP1590B-30
- Page 1 MP1590B-30 High Precision Jitter Analysis Operation Manual Fourth Edition • For safety and warning information, please read this manual before attempting to use the equipment. • Additional safety and warning information is pro- vided within the MP1590B Network Performance Tester Operation Manual. Please also refer to this document before using the equipment.
- Page 2 Insure that you clearly understand the meanings of the symbols BEFORE using the equipment. Some or all of the following five symbols may not be used on all Anritsu equipment. In addition, there may be other labels attached to products which are not shown in the diagrams in this manual.
- Page 3 In addition, this warranty is valid only for the original equipment pur- chaser. It is not transferable if the equipment is resold. Anritsu Corporation shall assume no liability for injury or financial loss of the customer due to the use of or a failure to be able to use this equipment.
- Page 4 Notes On Export Management This product and its manuals may require an Export License/Approval by the Government of the product's country of origin for re-export from your country. Before re-exporting the product or manuals, please contact us to confirm whether they are export-controlled items or not. When you dispose of export-controlled items, the products/manuals are needed to be broken/shredded so as not to be unlawfully used for military purpose.
- Page 5 CE Conformity marking Anritsu affixes the CE Conformity marking on the following product (s) in accordance with the Council Directive 93/68/EEC to indicate that they conform to the EMC and LVD directive of the European Union (EU). CE marking 1. Product Model...
- Page 6 C-tick Conformity marking Anritsu affixes the C-tick marking on the following product (s) in accor- dance with the regulation to indicate that they conform to the EMC framework of Australia/New Zealand. C-tick marking 1. Product Model Option: MP1590B-30 High Precision Jitter Analysis 2.
-
Page 7: About This Manual
About This Manual The MP1590B Network Performance Tester operation manual contains those of the main unit, control software, remote control and options as shown below. MP1590B Network Performance Tester Operation Manual Explains MP1590B basic operations MX159001B Network Performance Tester Control Software Operation Manual SDH Edition Explains operations for the MP1590B control software (SDH Edition). - Page 8 MP1590B Network Performance Tester Remote Control Operation Manual Explains the remote control via RS-232C, GPIB and Ethernet Interfaces. MP1590B-30 High Precision Jitter Analysis Operation Manual Explains specification for MP1590B-30. Application Traffic Monitor Operation Manual Explains operation for the software that monitors...
- Page 9 This Operation Manual supports MP1590B-30 High Precision Jitter Analysis (for MP1590B). It is explained in the text in the case of MP1590B-30 High Precision Jit- ter Analysis.
-
Page 10: Table Of Contents
Table of Contents About This Manual........Chapter 1 Overview........Overview ............... O.172 New Recommendation and Verification Method for Jitter Measurement Accuracy ..... Product Configuration ........... Chapter 2 Specifications ......Specifications.............. -
Page 11: Chapter 1 Overview
Chapter 1 Overview This chapter provides an overview and describes the product configura- tion of the MP1590B-30 High Precision Jitter Analysis. Overview ..............1-2 O.172 New Recommendation and Verification Method for Jitter Measurement Accuracy....1-2 Product Configuration ..........1-4... - Page 12 Jitter Genera- tion Measurement. The Jitter measurement accuracy of MP1590B with- out MP1590B-30 High Precision Jitter Analysis is correctly calibrated by the Phase Analysis Calibration Method, and is guaranteed. And fur- thermore, MP1590B-30 High Precision Jitter Analysis gives highly pre- cise tuning to the MP1590B.
- Page 13 O.172 New Recommendation Verification Method for Jitter Measurement Accuracy Sampling oscilloscope Ch3: Optical data Ch4: Reference clock Clock Data MP1590B GPIB Trigger: Pattern sync signal Pulse pattern generator O.172 Phase Analysis Method...
-
Page 14: Product Configuration
Chapter 1 Overview 1.3 Product Configuration The MP1590B-30 option can only be installed in one of the following set- ups. Once installed, the setup cannot be changed. You cannot add this option once it is shipped, as this option is selected when the MP1590B and the unit is delivered. -
Page 15: Chapter 2 Specifications
Chapter 2 Specifications This chapter provides the specifications of the MP1590B-30 High Preci- sion Jitter Analysis. Specifications............. 2-2... -
Page 16: Specifications
10 G: 20 kHz to 80 MHz, 50 kHz to 80 MHz 2.5 G: 5 kHz to 20 MHz, 12 kHz to 20 MHz Transmitter: MU150121A/B, MU150134A, or an optical transmitter specified by Anritsu Pattern: OC-192c/STM-64c (J0/Z0 = “AA” + “CC”) OC-48c/STM-16c (J0/Z0 = “AA” + “CC”) - Page 17 Specifications Item Specifications Pattern dependent jitter of Reference value based on Phase Analysis Method in ITU-T O.172 transmitter (April,2005) Appendix Ⅷ.) Jitter Generation of Trans- MU150121A/B: 60 mUIpp or less mitter MU150134A: 50 mUIpp or less The amount of the pattern dependent jitter generated within the range above will be attached as a reference value for the meas- urement accuracy (Item 1).
- Page 18 Optical input power: −10 to −12 dBm Measurement system See Item 1.2. Other Temperature: 20 to 30°C Calibration cycle: One year A fee will be charged for calibration. MP1590B-90 (extended 3-year warranty service) does not apply to the functions and performance of the MP1590B-30. 2-4.
