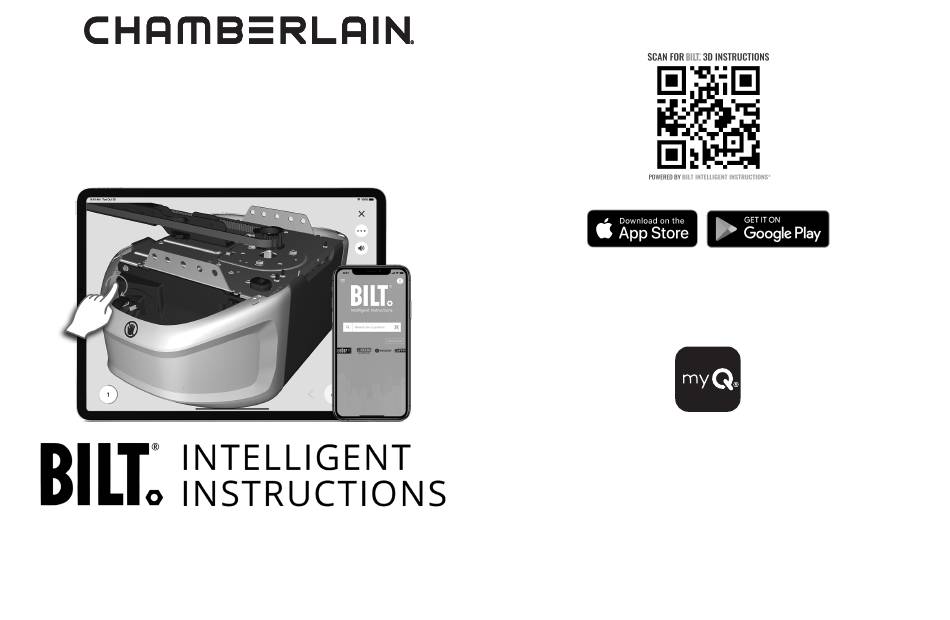

- Page 1 DOWNLOAD THE FREE APP Easy step-by-step interactive 3D instructions for this product can be found in Available on most iOS and Android Devices AFTER YOUR ASSEMBLY WITH BILT, DOWNLOAD THE myQ® APP Installation Manual Inside...
- Page 3 PRE PROGRAMMED REMOTE CONTROL INCLUDED To register your garage door opener to receive updates and offers from Chamberlain, visit chamberlain.registria.com or use the icon below: • Please read this manual and the enclosed safety materials carefully! • Fasten the manual near the garage door after installation.
-
Page 4: Table Of Contents
Installation Parts close without being in the line of sight of the door is considered unattended close. The Timer-to-Close (TTC) Model C2212T feature, the myQ® App, and any other myQ® devices are to be used ONLY with sectional doors. Model C2405 The images throughout this manual are for reference only and your product may look different. -
Page 5: Preparation
Preparation Check the Door Before You Connect with Your Smartphone Monitor and control your garage door from anywhere using the myQ® App. You will need a router with Wi-Fi® and a smartphone or other mobile device. Make sure your mobile device is connected to your Wi-Fi® network. Hold your mobile device in the place where your garage door opener will be installed and check the Wi-Fi®... - Page 6 Preparation Tools Needed Additional Items You May Need: Survey your garage area to see if you will need any of the following items: (2) 2X4 Pieces of wood : May be used to fasten the header bracket to the structural supports. Also used to position the garage door opener during installation and for testing the safety reversing sensors.
- Page 7 Remote control 14 x1 Wireless keypad - Model C2405 9 x2 Push Button Door Control - Models C2202 and C2212T Multi-Function Control Panel - Model C2405 White and red/white wire Installation manual and all warning labels Sprocket cover - Model C2212T See Hardware page 8.
- Page 8 Screw 6-32x1" (2) Threaded Clevis Pin 5/16"x1-1/2" Clevis Pin 5/16"x1" Shaft Screw 6ABx1" (2) Clevis Pin 5/16"x1-1/4" Hex Bolt 5/16"-18x7/8" (4) Model C2212T Master Link (2) Lock Nut 1/4"-20 Wing Nut (2) Hex Screw 10-24 (2) Drywall Anchors (2) Nut 3/8"...
-
Page 9: Assembly
Assembly STEP 1 Assemble the Rail and Install the Trolley Slide to stops To prevent INJURY from pinching, keep hands and fingers away from the joints while assembling the rail. on top and sides of “U” bracket To avoid installation difficulties, do not run the garage door opener until instructed to do so. The front rail has a cut out “window”... - Page 10 Assembly STEP 2 Fasten the Rail to the Motor Unit HARDWARE MODEL C2405 Lock Nut Bolt 1/4"-20 1/4"-20x1-3/4" To avoid SERIOUS damage to garage door opener, use ONLY those bolts/fasteners mounted in the top of the opener. Hex Screws 8-32x7/16 Insert a 1/4"-20 x 1-3/4"...
- Page 11 Assembly STEP 3 Install the Idler Pulley HARDWARE Nut 3/8" Lock Washer 3/8" Bolt Lay the chain/cable beside the rail, as shown. Grasp the end of the cable and pass approximately 12" (30 cm) of cable through the window. Allow it to hang until Assembly Step 4. Remove the tape from the idler pulley.
- Page 12 Assembly STEP 4 Install the Chain HARDWARE Pull the cable around the idler pulley and toward the trolley. Master Connect the cable to the retaining slot on the trolley, as shown. (Figure 1) Link Threaded Shaft Push pins of master link bar through cable link and trolley slot. Push master link cap over pins and past pin notches.
- Page 13 STEP 6 Install the Sprocket Cover Spin the inner nut and lock washer down the trolley threaded shaft, away from the trolley. MODEL C2212T To tighten the chain, turn the outer nut in the direction shown. When the chain is approximately 1/4" (6 mm) above the base of the rail at it's midpoint, retighten the inner nut to secure the adjustment.
-
Page 14: Installation
Installation IMPORTANT INSTALLATION INSTRUCTIONS To reduce the risk of SEVERE INJURY or DEATH: READ AND FOLLOW ALL INSTALLATION WARNINGS AND INSTRUCTIONS. Install wall-mounted garage door control: within sight of the garage door. Install garage door opener ONLY on properly balanced and lubricated garage door. An improperly balanced door may NOT reverse when required and could result in SEVERE INJURY or DEATH. - Page 15 Installation STEP 1 Determine the Header Bracket Location OPTIONAL CEILING MOUNT Header Wall FOR HEADER BRACKET Vertical Centerline of Garage Door Structural Supports Unfinished Ceiling To prevent possible SERIOUS INJURY or DEATH: Header bracket MUST be RIGIDLY fastened to structural support on header wall or ceiling, otherwise garage door might NOT reverse when required.
- Page 16 Installation STEP 2 Install the Header Bracket WALL INSTALLATION Header Wall You can attach the header bracket either to the wall above the garage door, or to the ceiling. Follow the Vertical instructions which will work best for your particular requirements. Do not install the header bracket over Centerline of drywall.
- Page 17 Installation STEP 3 Attach the Rail to the Header Bracket STEP 4 Position the Garage Door Opener Position the opener on the garage floor below the header bracket. Use packing material as a protective base. NOTE: If the door spring is in the way, you will need help. Have someone hold the opener securely on a temporary support to allow the rail to clear the spring.
- Page 18 Installation STEP 5 Hang the Garage Door Opener HARDWARE Lag Screw 5/16"-18 5/16"-9x1-5/8" To avoid possible SERIOUS INJURY from a falling garage door opener, fasten it SECURELY to structural supports of the garage. Concrete anchors MUST be used if installing ANY brackets into masonry. Lock Washer Hex Bolt 5/16"-18...
- Page 19 DO NOT use short neck or specialty light bulbs. LED bulbs may cause remote control radio interference. Use ONLY LED bulbs recommended here: chamberlain.com/bulb. Insert one end of the emergency release rope through the handle. Make sure that “NOTICE” is right side up.
- Page 20 Installation STEP 8 Install the Door Bracket HARDWARE Self-Threading Screw 1/4"-14x5/8" Fiberglass, aluminum or lightweight steel garage doors WILL REQUIRE reinforcement BEFORE installation of door bracket. Contact the garage door manufacturer or installing dealer for opener reinforcement instructions or reinforcement kit. Failure to reinforce the top section as required according to the door manufacturer may void the door warranty.
- Page 21 Installation Header Wall STEP 8 Install the Door Bracket (continued) 2x4 Support (Finished Ceiling) OPTION B - ONE-PIECE DOORS Center the door bracket on the top of the door, in line with the header bracket as shown. Header Bracket Mark either the left and right, or the top and bottom holes. Metal Doors: Drill 3/16"...
- Page 22 Installation STEP 9 Connect the Door Arm to the Trolley HARDWARE Installation will vary according to the garage door type. Follow the instructions which apply to your door. OPTION A - SECTIONAL DOORS IMPORTANT: The groove on the straight door arm MUST face away from the curved door arm. Clevis Pin 5/16"x1-1/4"...
- Page 23 Installation STEP 9 Connect the Door Arm to the Trolley (continued) OPTION B - ONE-PIECE DOORS IMPORTANT: The groove on the straight door arm MUST face away from the curved door arm. Straight Door Arm (Groove facing out) Close the door. Disconnect the trolley by pulling the emergency release handle. Fasten the straight door arm and the curved door arm together to the longest possible length (with a 2 or 3 hole overlap) using the bolts, nuts, and lock washers.
-
Page 24: Install The Door Control
Installation Strip 1/4" (6 mm) of insulation from one end of the wire and separate the wires. STEP 10 Install the Door Control Connect one wire to each of the two screws on the back of the door control. The wires can be connected to either screw. - Page 25 ALWAYS keep garage door in sight until completely closed. NEVER permit anyone to cross path of closing garage door. INTRODUCTION Older Chamberlain door controls and third party products are not compatible. Install door control within DRYWALL GANG BOX sight of garage door, out of reach of small children at a minimum height of 5 feet (1.5 m) above floors, landings, steps or any other adjacent walking surface, and away from ALL moving parts of door.
- Page 26 Installation STEP 11 Wire the Door Control to the Garage Door Opener STEP 12 Attach the Warning Labels Run the white and red/white wire from the door control to the garage door opener. Attach the wire to Attach the entrapment warning label on the wall near the door control with tacks or staples. the wall and ceiling with the staple (not applicable for gang box or pre-wired installations).
-
Page 27: Install The Protector System
Installation ® STEP 13 Install the Protector System HARDWARE Hex Screw 10-24 (2) Wing Nut (2) Be sure power is NOT connected to the garage door opener BEFORE installing the safety reversing sensor. To prevent SERIOUS INJURY or DEATH from closing garage door: The safety reversing sensors are designed to clip onto the door track with the provided sensor brackets. - Page 28 Installation STEP 13 Install the Protector System (continued) FLOOR OPTION Measure the position of both sensor brackets so they will be the same distance from the wall and WALL OPTION unobstructed. Make sure the brackets on each side are clear of the door track and have the same amount of clearance so the Attach the bracket to the floor with concrete anchors (not provided).
- Page 29 Installation STEP 14 Wire the Safety Reversing Sensors HARDWARE If your garage has pre-installed wiring for the safety reversing sensors, see OPTION B - PRE-WIRED Insulated Staple (Not Shown) INSTALLATION page 30. OPTION A - INSTALLATION WITH NO PRE-WIRING Run the wire from both sensors to the garage door opener. Attach with staples, but DO NOT puncture the wire.
- Page 30 Installation STEP 14 Wire the Safety Reversing Sensors (continued) Pre-installed wires OPTION B - PRE-WIRED INSTALLATION 7/16" (11 mm) Cut the sensor wires, making sure there is enough wire to reach the pre-installed wires from the wall. Separate the sensor wires and strip insulation from each end. Choose two of the pre-installed wires and strip insulation from each end.
-
Page 31: Connect Power
Installation THERE ARE TWO OPTIONS FOR CONNECTING POWER: STEP 15 Connect Power OPTION A - TYPICAL WIRING Plug in the garage door opener into a grounded outlet. DO NOT run garage door opener at this time. To prevent possible SERIOUS INJURY or DEATH from electrocution or fire: Be sure power is NOT connected to the opener, and disconnect power to circuit BEFORE removing OPTION B - PERMANENT WIRING cover to establish permanent wiring connection. - Page 32 Installation STEP 16 Align the Safety Reversing Sensors SAFETY SENSOR TROUBLESHOOTING If either of the sensor LEDs are off, there is no power to the sensor: IMPORTANT: The safety reversing sensors MUST be connected and aligned correctly before the garage Check that you have power to the garage door opener.
-
Page 33: Adjustments
Adjustments Introduction ONE-PIECE DOORS ONLY When setting the UP travel for a one-piece door ensure that the door does not slant backwards when fully open (UP). If the door is slanted backwards this will cause unnecessary bucking and/or jerking when the door is opening or closing. - Page 34 Adjustments STEP 1 Program the Travel UP Button Adjustment Button Without a properly installed safety reversal system, persons (particularly small children) could be DOWN Button SERIOUSLY INJURED or KILLED by a closing garage door. Incorrect adjustment of garage door travel limits will interfere with proper operation of safety reversal system.
- Page 35 Adjustments STEP 2 Test the Safety Reversal System STEP 3 Test the Protector System® Without a properly installed safety reversal system, persons (particularly small children) could be Without a properly installed safety reversing sensor, persons (particularly small children) could be SERIOUSLY INJURED or KILLED by a closing garage door.
-
Page 36: Battery Backup
The opener beeps every 2 seconds while operating on battery power. Red battery status LED: The battery needs to be replaced. A solid red LED indicates the battery will no longer hold a charge. Go to chamberlain.com to purchase a Battery Status LED replacement battery to allow your system to operate during a power outage. -
Page 37: Myq® App Control
® App Control Connect With Your Smartphone YOU WILL NEED: Learn Button Wi-Fi® enabled smartphone, tablet or laptop Broadband Internet connection Wi-Fi® signal in the garage (2.4 GHz, 802.11b/g/n required), see page 5 Password for your home network (router's main account, not guest network) myQ®... -
Page 38: Operation
Operation IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of SEVERE INJURY or DEATH: READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS. After ANY adjustments are made, the safety reversal system MUST be tested. ALWAYS keep remote controls out of reach of children. NEVER permit children to operate or play with Safety reversal system MUST be tested every month. -
Page 39: Using Your Door Control
Operation LOCK: Prevents remote controls from working, while still allowing Using your Door Control PUSH BUTTON DOOR CONTROL activation from the door control and keyless entry. (Factory setting is OFF.) MULTI-FUNCTION CONTROL PANEL Turn ON: Press and hold the LOCK button for 2 seconds. The command LED will flash as long as the lock feature is on. -
Page 40: Remote Control And Keyless Entry
Press and immediately release the LEARN button. The LEARN LED will glow steady for 30 seconds. REMOTE. Within 30 seconds... To add or reprogram a remote control, follow the instructions below. Older Chamberlain remote controls are Remote Control: Press and hold the button on the remote control that you wish to use. NOT compatible. -
Page 41: Erase The Memory
Operation Erase the Memory To Open the Door Manually ERASE ALL REMOTE CONTROLS AND KEYLESS ENTRIES Press and hold the LEARN button on garage door opener until the learn LED goes out (approximately 6 seconds). All remote control and keyless entry codes are now erased. Reprogram any accessory you wish to use. -
Page 42: Maintenance
Maintenance Maintenance Schedule NOTICE: This device complies with part 15 of the FCC rules and Innovation, Science and Economic Development EVERY MONTH Canada license-exempt RSSs. Operation is subject to the following two conditions: (1) this device may not cause Manually operate door. If it is unbalanced or binding, call a trained door systems technician. harmful interference, and (2) this device must accept any interference received, including interference that may cause Check to be sure door opens and closes fully. -
Page 43: Troubleshooting
Troubleshooting Diagnostic Chart Your garage door opener is programmed with self-diagnostic capabilities. The UP and DOWN arrows on the garage door opener flash the diagnostic codes. DIAGNOSTIC CODE SYMPTOM SOLUTION Flashes Flashes The garage door opener will not close and the lights flash. Safety reversing sensors are not installed, connected, or wires may be cut. Inspect sensor wires for a disconnected or cut wire. There is a short or reversed wire for the safety reversing sensors. - Page 44 My vehicle's Homelink® is not programming to my garage door opener: Verify the lock feature is not activated on the door control. Compatibility Bridge (not included) may be necessary for certain vehicles. Visit bridge.chamberlain.com to Reprogram the remote control. find out if a Bridge is needed.
-
Page 45: Warranty
Contact Information CHAMBERLAIN® LIMITED WARRANTY The Chamberlain Group, Inc.® (“Seller”) warrants to the first retail purchaser of this product, for the residence in which this product is STOP! originally installed, that it is free from defects in materials and/or workmanship for a specific period of time as defined below (the “Warranty Period”). -
Page 46: Automatic Garage Door Opener Safety & Maintenance Guide
Automatic Garage Door Opener Safety & Maintenance Guide Garage Door Opener Safety – An Automatic Decision A garage door is the largest moving object in the home. An improperly adjusted garage door and opener can exert deadly force when the door closes – which could lead to entrapment of children or adults and subsequent injury or death. - Page 47 Routine Maintenance Can Prevent Tragedies Make monthly inspection and testing of your garage door and opener system a part of your regular routine. Review your owner’s manual for both the door and door opener. If you don’t have the owner’s manuals, contact the manufacturer(s) and request a copy for your specific model(s).
-
Page 48: Repair Parts
Repair Parts Rail Assembly Parts Installation Parts Description Part Number Description Part Number Chain and cable 041A5807 Curved door arm 041B0035B Pulley K144C0056 Door bracket with clevis pin and fastener 041A5047 Master link 004A1008 Emergency release rope and handle 041A2828 Rail 041A5665 Header bracket with clevis pin and fastener... -
Page 49: Model C2212T
Repair Parts Garage Door Opener Parts - Model C2212T Description Part Number Sprocket and sprocket cover 041B5348-2 Front end panel 041A7618 Light lens 041-0144 Light socket 041C0279 Cover 041-0229-000 Motor with travel module 041D8006-1 Travel module 041D8071-4 End panel for receiver logic board... -
Page 50: Model C2405
Repair Parts Garage Door Opener Parts - Model C2405 Description Part Number Chain spreader 041A5615 Gear and sprocket 041C4220A End panel with light socket 041D0207 Light socket 041C0279 Light lens 041-0144 Capacitor 030B0532-1 Capacitor bracket K012A0373 Travel module 041D7742-7 Cover 041-0229-000 Logic board 050ACTWF... - Page 52 © 2021, The Chamberlain Group, Inc. All Rights Reserved The Chamberlain Group, Inc. Wi-Fi® is a registered trademark of Wi-Fi Alliance 300 Windsor Drive 114-5554-000 HomeLink® is a registered trademark of Gentex Corporation Oak Brook, IL 60523...
