Sunny MCU Series User Manual

USER MANUAL

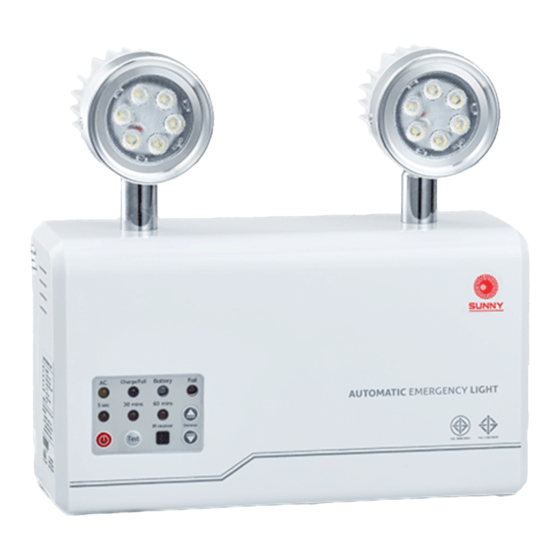

Self-Contained Emergency Light
MCU HZ Type
MCU NC Type

Features

1. Controlled by a highly intelligent 8-bit micro controller.
2. Automatic self-test system that is able to be set for every 1 or 6 months. The time,
date and duration of the automatic test can be set as desired. This will help to extend
the life of the battery as well as lower the burden of maintenance on the user.
3. Testing can be activated remotely using the infrared remote.
4. The unit has a quick self-test function with durations of 5 seconds, 30 minutes and
60 minutes.
5. The brightness of the unit can be adjusted to 3 di erent levels for optimum
brightness
and operational time (only supported for units with the HZ lamp type).
6. Using high quality LEDs with a lifetime of over 50,000 hours, providing bright and
constant illimitation throughout its operation.
7. The unit's outer case is made from ABS UL94 V-O Flame Retardant plastic that is
highly resistant to impact and corrosion.
LED AC Indicate that the unit is receiving power.
LED Charge/Full Gives information on battery charging.
LED Battery Indicate battery voltage range
LED Fail Indicate error status.
LED 5 sec Indicate the unit is performing a 5 second test.
LED 30 mins Indicate the unit is performing a 30-minute test.
LED 60 mins Indicate the unit is performing a 60-minute test.
Switch ON/OFF Press to turn ON/OFF the lamp. (while the unit is not plugged in)
Switch Test For testing the device's availability. (during normal circumstance)
IR Receiver Infrared signal sensor used to receive signal from
the infrared remote.
Dimmer Press to adjust the brightness level
(only supported in the HZ models).

Status Indicators and Testing Buttons

MCU Series
5 30
secs mins
Remote Testing
60
mins
