Victaulic FireLock Series Manual

Victaulic FireLock
®
Specific Application Low Flow Attic Scheme, Quick Response
Upright, K5.6 (8.0)
1.0 PRODUCT DESCRIPTION
SIN
ORIENTATION
K-FACTOR 1
CONNECTION
MAX. WORKING PRESSURE
GLOBE RE-DESIGNATION
AVAILABLE WRENCHES
SPRINKLER
Upright
Factory Hydrostatic Test: 100% @ 500 psi/3447 kPa/34 bar
Min. Operating Pressure: UL: 12.8 psi/88 kPa/0.9 bar
Temperature Rating: See tables in section 2.0
1 For K-Factor when pressure is measured in bar, multiply S.I. units by 10.0.
2.0 CERTIFICATION/LISTINGS
Sprinkler Model SIN
RE V5620
DS V5621
NOTE
• Listings and approval as of printing.
• Listed to be utilized per NFPA 13 in conformance with the New Technology and Equivalency Sections.
ALWAYS REFER TO ANY NOTIFICATIONS AT THE END OF THIS DOCUMENT REGARDING PRODUCT INSTALLATION, MAINTENANCE OR SUPPORT.
victaulic.com
46.02 16397 Rev A Updated 03/2021
Series FL-SA/DS and FL-SA/RE
™
FL-SA/RE, V5620

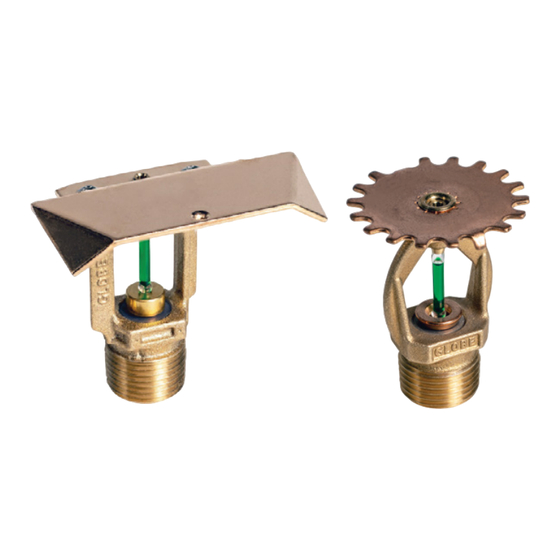

SPECIFIC APPLICATION ATTIC SPRINKLERS
V5620
Upright
5.6 Imp./8.1 S.I.
1/2" NPT
175 psi (1200 kPa)
GL5620
V56 Open End
■
Nominal K Factor
Imperial
5.6
5.6
© 2021 Victaulic Company. All rights reserved.
FL-SA/DS, V5621
V5621
Upright
5.6 Imp./8.1 S.I.
1/2" NPT
175 psi (1200 kPa)
GL5621
Listing Agency/
Approved
Temperature Ratings Area of Use
cULus 200°F/93°C RIDGE/SLOPE
cULus 200°F/93°C HIP/SINGLE SLOPE
1
46.02
Roof Span
Roof Pitch
ft
72' MAX
3:12 to 6:12
72' MAX
