Summary of Contents for POWERTEX PSBS-S2/2T-75-10
- Page 1 GB Instruction for use Brugsanvisning POWERTEX Snatch Block with Shackle PSBS-S2 Guideline User Manual for manufacturing and delivering...

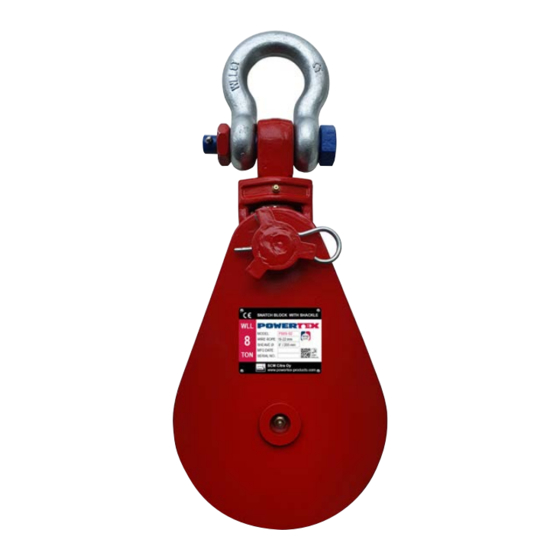

- Page 2 ø1 ø2 The POWERTEX snatch block with shackles is opened by removing the hair needle pin, rotating the quick pin bolt and then the side plate can swing away opening the snatch block so that the rope can be inserted.
- Page 3 Selection of snatch block The WLL marked on the block is the maximum load that is allowed to be exerted on the block and it’s connection. Be aware that the Total load on the block is a result of the rigging method and could be different from the weight being lifted or pulled by the hoisting or hauling system. It is therefore necessary to determine the total load being imposed on each block in the system to properly determine the block capacity needed.
- Page 4 If the product is modified in any way, or if it is combined with a non-compatible product/component, we take no responsibility for the consequenc- es in regard to the safety of the product. Declaration of conformity SCM Citra OY Asessorinkatu 3-7 FI-20780 Kaarina Finland www.powertex-products.com hereby declares that the POWERTEX product as described above is in compliance with EC Machinery Directive 2006/42/EC.
- Page 5 Smørenippel Wireskive ø1 ø2 POWERTEX kasteblokken med sjækkel åbnes ved at fjerne fjedersplitten, dreje hovedbolten og derefter kan sidepladen drejes til siden, så wiren kan indsættes. Prøvebelastning: Hver blok er testet med 2 x WLL på fabrikken inden levering Arbejdsstemperatur: -20°C op til +50°C...
- Page 6 Valg af kasteblok Den WLL som er vist på blokkens identifikationsplade er den maksimale belastning, som blokken og dens forbindelser må udsættes for. Vær opmærksom på, at den samlede belastning på blokken er et resultat af rigningsmetoden, og den kan være forskellig fra den vægt, der løftes eller trækkes af hejse- eller træksystemet.
- Page 7 Hvis produktet modificeres på nogen måde, eller hvis det kombineres med et ikke-kompatibelt produkt/komponent, påtager vi os intet ansvar for konsekvenserne hvad angår produktets sikkerhed. Overensstemmelseserklæring SCM Citra OY Asessorinkatu 3-7 FI-20780 Kaarina Finland www.powertex-products.com erklærer hermed, at POWERTEX-produktet som beskrevet ovenfor er i overensstemmelse med EC Maskindirektivet 2006/42/EF og EN 1494.
- Page 8 IDentification) tag, which is a small electronic device, that consist of a small chip and an antenna. It provides a unique identifier for the block. The POWERTEX Snatch Blocks are CE marked in accordance with Machine Directive 2006/42/EC User Manuals You can always find the valid and updated User Manuals on the web.
- Page 9 Canary Islands Canary Islands www.powertex-products.com...
