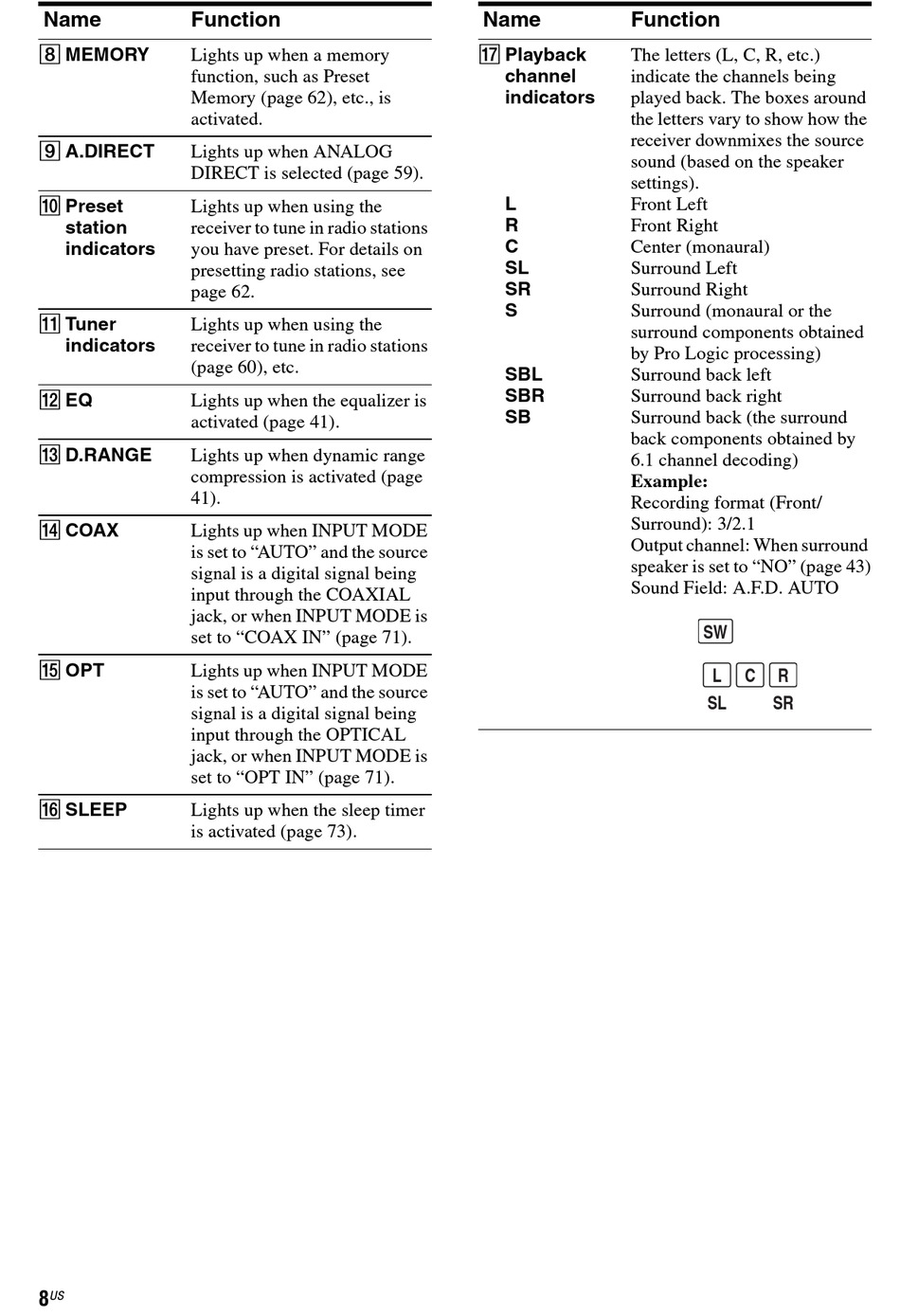

Name Function
H MEMORY
Lights up when a memory
function, such as Preset
Memory (page 62), etc., is
activated.
I A.DIRECT
Lights up when ANALOG
DIRECT is selected (page 59).
J Preset
Lights up when using the
station receiver to tune in radio stations
indicators you have preset. For details on
presetting radio stations, see
page 62.
K Tuner
Lights up when using the
indicators receiver to tune in radio stations
(page 60), etc.
L EQ
Lights up when the equalizer is
activated (page 41).
M D.RANGE
Lights up when dynamic range
compression is activated (page
41).
N COAX
Lights up when INPUT MODE
is set to "AUTO" and the source
signal is a digital signal being
input through the COAXIAL
jack, or when INPUT MODE is
set to "COAX IN" (page 71).
O OPT
Lights up when INPUT MODE
is set to "AUTO" and the source
signal is a digital signal being
input through the OPTICAL
jack, or when INPUT MODE is
set to "OPT IN" (page 71).
P SLEEP
Lights up when the sleep timer
is activated (page 73).
8 US
Name Function
Q Playback
The letters (L, C, R, etc.)
channel indicate the channels being
indicators played back. The boxes around
the letters vary to show how the
receiver downmixes the source
sound (based on the speaker
settings).
L Front Left
R
Front Right
C Center (monaural)
SL Surround Left
SR
Surround Right
S Surround (monaural or the
surround components obtained
by Pro Logic processing)
SBL Surround back left
SBR
Surround back right
SB Surround back (the surround
back components obtained by
6.1 channel decoding)
Example:
Recording format (Front/
Surround): 3/2.1
Output channel: When surround
speaker is set to "NO" (page 43)
Sound Field: A.F.D. AUTO
SW
L C R
SL SR
