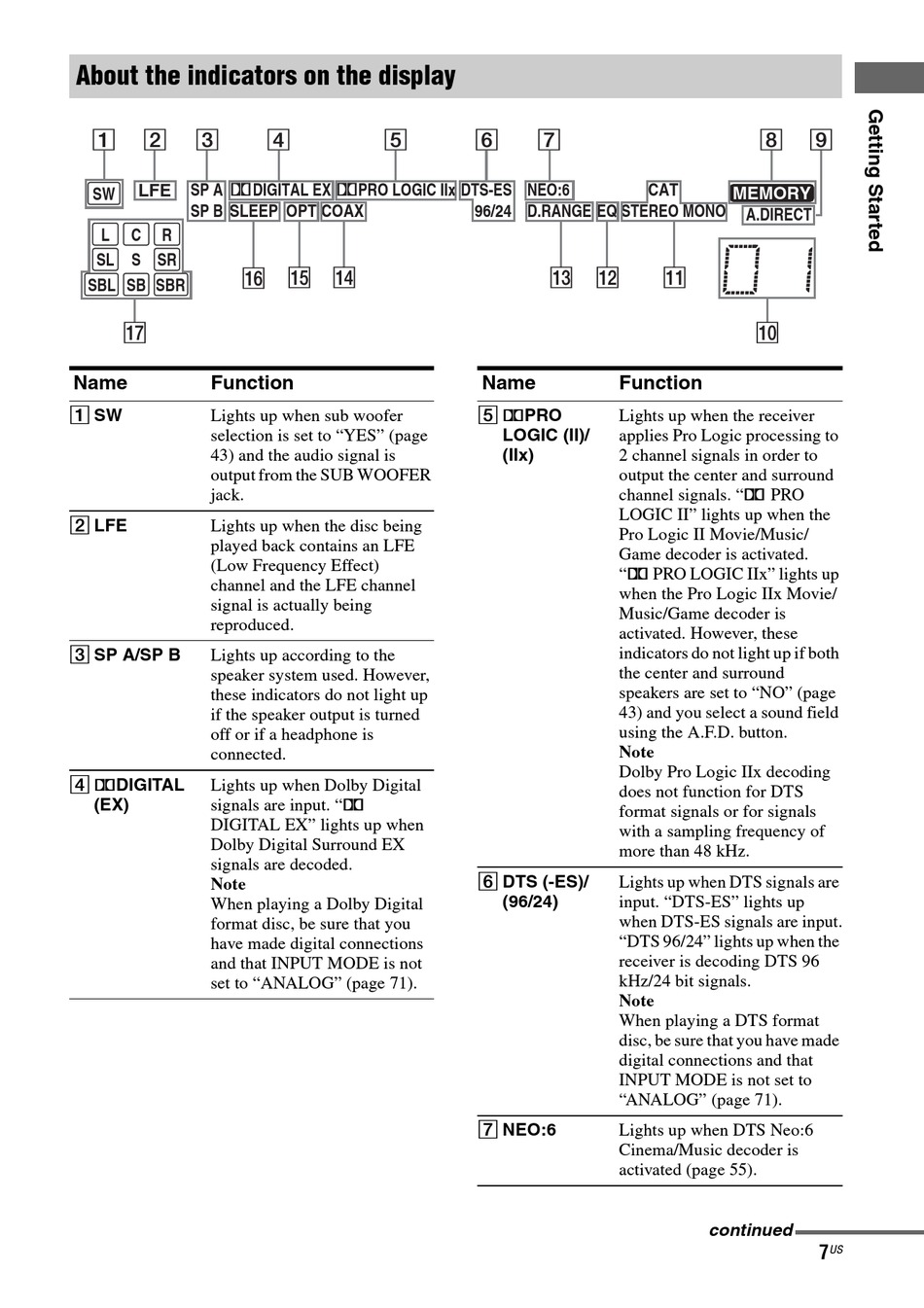

About the indicators on the display
1 2 3
;
SP A
LFE
SW
SP B SLEEP OPT COAX
L C R
SL S SR
qh
SBL SB SBR
qj
Name Function
A SW
Lights up when sub woofer
selection is set to "YES" (page
43) and the audio signal is
output from the SUB WOOFER
jack.
B LFE
Lights up when the disc being
played back contains an LFE
(Low Frequency Effect)
channel and the LFE channel
signal is actually being
reproduced.
C SP A/SP B
Lights up according to the
speaker system used. However,
these indicators do not light up
if the speaker output is turned
off or if a headphone is
connected.
D ;DIGITAL
Lights up when Dolby Digital
(EX) signals are input. ";
DIGITAL EX" lights up when
Dolby Digital Surround EX
signals are decoded.
Note
When playing a Dolby Digital
format disc, be sure that you
have made digital connections
and that INPUT MODE is not
set to "ANALOG" (page 71).
4 5
;
DIGITAL EX PRO LOGIC IIx
qg qf
6 7
DTS-ES NEO:6
96/24 D.RANGE EQ STEREO MONO
qd qs
Name Function
E ;PRO
Lights up when the receiver
LOGIC (II)/ applies Pro Logic processing to
(IIx) 2 channel signals in order to
output the center and surround
channel signals. "; PRO
LOGIC II" lights up when the
Pro Logic II Movie/Music/
Game decoder is activated.
"; PRO LOGIC IIx" lights up
when the Pro Logic IIx Movie/
Music/Game decoder is
activated. However, these
indicators do not light up if both
the center and surround
speakers are set to "NO" (page
43) and you select a sound field
using the A.F.D. button.
Note
Dolby Pro Logic IIx decoding
does not function for DTS
format signals or for signals
with a sampling frequency of
more than 48 kHz.
F DTS (-ES)/
Lights up when DTS signals are
(96/24)
input. "DTS-ES" lights up
when DTS-ES signals are input.
"DTS 96/24" lights up when the
receiver is decoding DTS 96
kHz/24 bit signals.
Note
When playing a DTS format
disc, be sure that you have made
digital connections and that
INPUT MODE is not set to
"ANALOG" (page 71).
G NEO:6
Lights up when DTS Neo:6
Cinema/Music decoder is
activated (page 55).
8 9
CAT
MEMORY
A.DIRECT
qa
q;
continued
7
