INSTRUCTION MANUAL
RK6040
60-ton, Single-acting,
Die-type Crimping Tool
Read and understand all of the instructions and
safety information in this manual before operating
or servicing this tool.
Register this product at www.greenlee.com
99946700 REV 5
© 2019 Greenlee Tools, Inc.
9/19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RK6040 and is the answer not in the manual?

Questions and answers

Related Manuals for Greenlee RK6040

Summary of Contents for Greenlee RK6040

  • Page 1 INSTRUCTION MANUAL RK6040 60-ton, Single-acting, Die-type Crimping Tool Read and understand all of the instructions and safety information in this manual before operating or servicing this tool. Register this product at www.greenlee.com 99946700 REV 5 © 2019 Greenlee Tools, Inc. 9/19...

  • Page 2: Table Of Contents

    All specifications are nominal and may change as design improvements occur. Greenlee Tools, Inc. shall not be liable for damages resulting from misapplication or misuse of its products. Dynapress is a registered trademark of Greenlee Tools, Inc.

  • Page 3: Important Safety Information

    RK6040 60-ton Crimping Tool IMPORTANT SAFETY INFORMATION SAFETY ALERT Read and understand all of the instructions and safety information SYMBOL in this manual before operating or servicing this tool. Failure to observe this warning will This symbol is used to call your attention to hazards result in severe injury or death.
  • Page 4 RK6040 60-ton Crimping Tool IMPORTANT SAFETY INFORMATION Electrical shock hazard: Use proper die, connector, and wire combinations. This tool is not insulated. When Mismatched components can result in an incomplete using this unit near energized crimp. Failure to complete a crimp could result in...

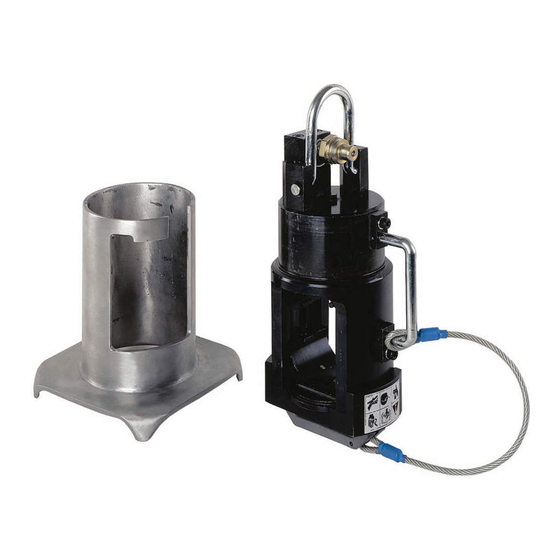

  • Page 5: Identification

    RK6040 60-ton Crimping Tool Identification RK6040 5. Cap Release Lever 1. Die Release Buttons 6. Lifting Eye 2. Head Die Retaining Pin 7. Hydraulic Coupling 3. Ram Die Retaining Pin (3/8 threaded, female) 4. Stand Specifications Weight ......................20.2 kg (45 lb) Width ......................152.5 mm (6")

  • Page 6: Setup

    RK6040 60-ton Crimping Tool Setup Do not use this crimping tool with any hydraulic Do not operate crimping tool without dies in place. hoses or other hydraulic components rated at less Damage to the ram or crimping tool head may result.

  • Page 7: Operation

    RK6040 60-ton Crimping Tool Operation Maintenance • Keep the tool clean. Use the tool with care to keep dirt and grit out of the hydraulic system. Contamination is the most common cause of failure for hydraulic tools. Electrical shock hazard: •...

  • Page 8: Illustration And Parts List

    RK6040 60-ton Crimping Tool Illustration 19 EXPLODED Greenlee Tools, Inc. 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
  • Page 9 RK6040 60-ton Crimping Tool Parts List Part No. Description Part No. Description 50105663 Stand ............1 28† Pin ............2 50105671 Lifting ring ..........1 29† Spring ...........2 50105680 Screw ............2 30† Pin, die ..........2 50105698 Block, hook guide .........2 31† Pin, retainer ...........2 50105701 Pin ............4...
  • Page 10 4455 Boeing Drive • Rockford, IL 61109-2988 • USA • 815-397-7070 An ISO 9001 Company • ©2019 Greenlee Tools, Inc. Canada International Tel: 800-435-0786 Tel: 800-435-0786 Tel: +1-815-397-7070 Fax: 800-451-2632 Fax: 800-524-2853 Fax: +1-815-397-9247 www.greenlee.com...
