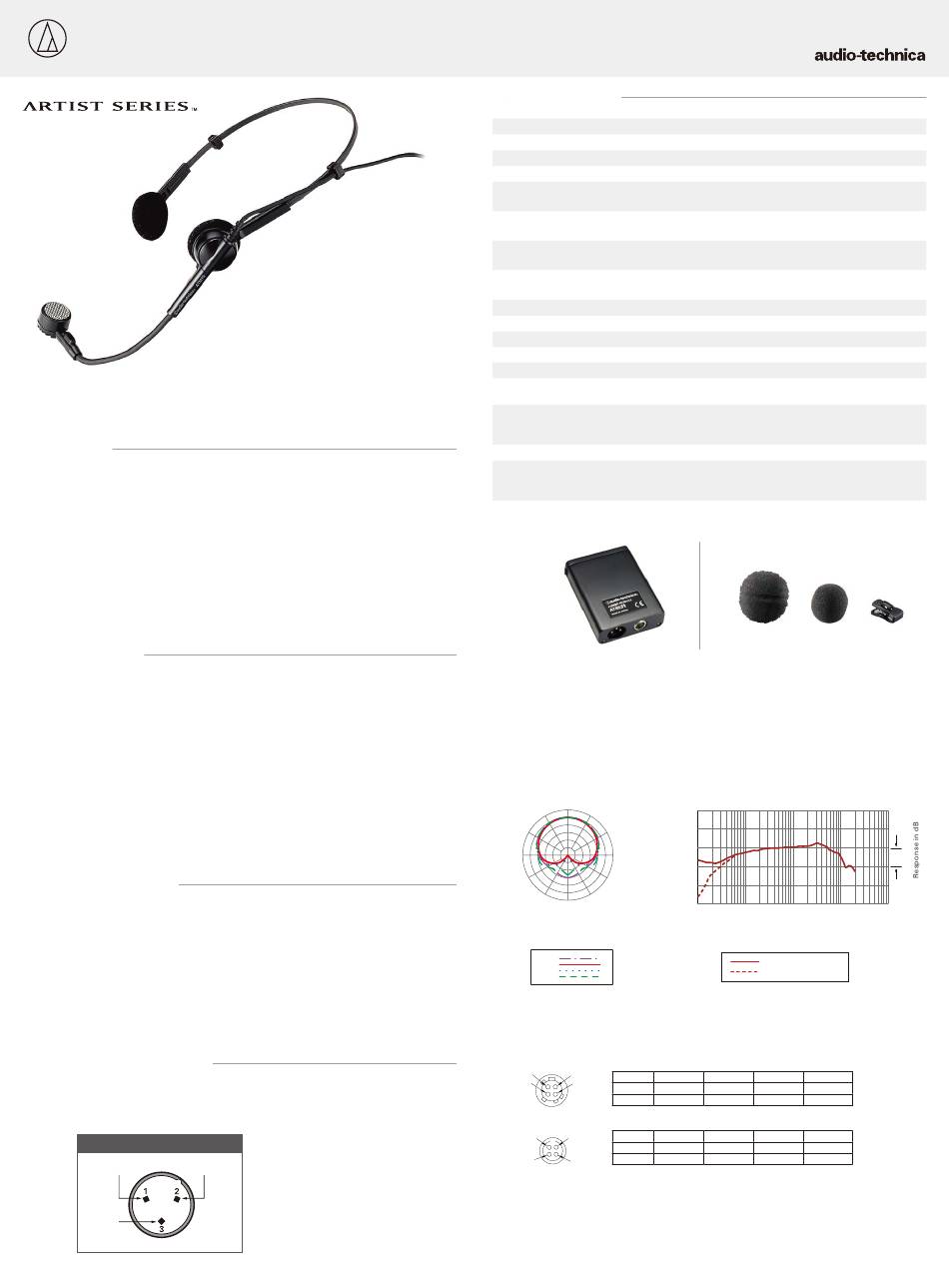

User Manual
Thank you for purchasing this product. Before using the product, read through the user
manual to ensure that you will use the product correctly.
Please keep this manual for future reference.
■ Features
• Ideal for drummers, keyboard players, guitarists or anyone requiring hands-free operation
• Low-visibilty headband provides stable, comfortable fit
• Pivot-mounted flexible mic boom descends from left or right side
• Belt-mounted power module operates on battery or phantom power
• Cardioid polar pattern improving isolation of desired sound source
• Rugged design and construction for reliable performance
• ATM75 wired version's power module (AT8531) includes a switchable 80 Hz high-pass filter
minimizes pickup of undesired low-frequency sounds
• Wireless version equipped with cW-style locking or cH-style screw-down 4-pin termination
for Audio-Technica wireless systems
■ Notes on use
ATM75 wired version includes a power module AT8531 that requires 11V to 52V DC
phantom power, or a 1.5V AA battery for operation. A battery need not be in place for
phantom power operation. The output of the power module is a 3-pin XLRM-type connector.
An integral 80Hz high-pass filter provides easy switching from a flat frequency response to a
low-end roll-off. The roll-off position reduces the pickup of low-frequency ambient noise
(such as traffic, air-handling systems, etc.), room reverberation and mechanically coupled
vibrations.
ATM75cW and ATM75cH wireless versions do not contain power module and includes
clothing clip and metal-frame pop filter only. 1.4 m cable terminated with locking 4-pin
connector. The connector is also compatible with Audio-Technica cW and cH type
body-pack transmitters.
Avoid leaving the microphone in the open sun or in areas where temperatures exceed 43°C
for extended periods. Extremely high humidity should also be avoided.
■ Safety precaution
Although this product was designed to be used safely, failing to use it correctly may result in
an accident. To ensure safety, observe all warnings and cautions while using the product.
■Cautions for the product
• Do not subject the product to strong impact to avoid malfunction.
• Do not disassemble, modify or attempt to repair the product.
• Do not handle the product with wet hands to avoid electric shock or injury.
• Do not store the product under direct sunlight, near heating devices or in a hot, humid or
dusty place.
■ Connection procedure
Connect the output terminals of AT8531 power module to a device that has a microphone
input (balanced input) compatible with a phantom power supply. The output connector is
an XLRM-type with polarity as shown in the figure below.
Output terminals
PIN1 (ground)
PIN2 (hot)
PIN3
(cold)
This product requires 48 V
DC phantom power.

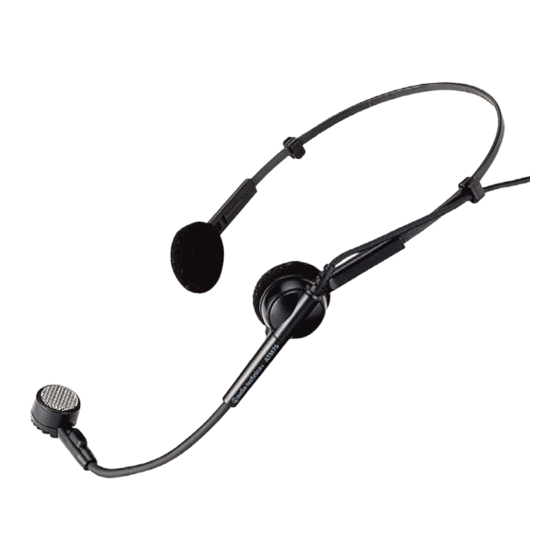

Cardioid Condenser Headword Microphones ATM75 / ATM75cW / ATM75cH
■ Specifications
Frequency response
Low Frequency response
Open circuit sensitivity
Maximum input sound level
Dynamic range (typical)
Signal-to-noise ratio
Phantom power requirements
Battery Current / Life
Output connector
Included accessories
AT8531
• 1 Pascal = 10 dynes/cm
2
= 10 microbars = 94 dB SPL
* Typical, A-weighted, using Audio Precision System One.
For product improvement, the product is sublect to modification without notice.
■Polar pattern
0°
30°
330°
300°
270°
240°
120°
210°
150°
180°
SCALE IS 5 DECIBELS PER DIVISION
LEGEND
200 Hz
1 kHz
5 kHz
8 kHz
■Cable Terminations
ATM75cW – Terminated with locking 4-pin connector for use with A-T UniPak
4
1
3
2
ATM75cH – Terminated with locking 4-pin connector for use with A-T cH body-pack transmitters
4
1
3
2
Audio-Technica Corporation
2-46-1 Nishi-naruse, Machida, Tokyo 194-8666, Japan
©2017 Audio-Technica Corporation
Global Support Contact: www.at-globalsupport.com
Element
Fixed-charge back plate, permanently polarized condenser
Polar pattern
Cardioid
100 - 13,000 Hz
80 Hz, 18 dB/octave (wired only)
Phantom: -51 dB (2.8 mV) re 1V at 1 Pa
Battery: -53 dB (2.2 mV) re 1V at 1 Pa
Impedance
Phantom: 200 ohms
Battery: 270 ohms
Phantom: 132 dB SPL, 1 kHz at 1% T.H.D.
Battery: 121 dB SPL, 1 kHz at 1% T.H.D.
Phantom: 96 dB, 1 kHz at Max SPL
Battery: 85 dB, 1 kHz at Max SPL
58 dB, 1 kHz at 1 Pa
11-52 V DC, 2 mA typical (wired only)
Battery Type
1.5V AA (wired only)
0.4 mA / 2000 hours (wired only) (alkaline)
Switch
Off, on-Flat, on-roll-off (wired only)
Weight
Microphone: 60 g
Power module (wired only): 139 g
Dimensions
Microphone: 20.4 mm diameter
Headset: 120.0 mm nominal at widest point, 80.5 mm boom
Power module: 84.0 mm (H), 63.0 mm (W), 22.0 mm (D)
Integral 3-pin XLRM-type (Power module)
Cable
1.4 m long (permanently attached to microphone),
2.8 mm diameter, 2-conductor shielded cable
(termination dependent)
AT8139L large windscreen; AT8139S small windscreen;
AT8439 cable clip.
(wired only) - AT8531 power module (ATM75)
AT8139L
■Frequency response
20
60°
10
0
90°
-10
-20
-30
10
100
1k
Frequency in Hertz
LEGEND
0°, 50cm
Roll-off
®
body-pack transmitters
Pin 1
Pin 2
Pin 3
Function Ground / Shield Instrument
Mic Audio
Wire Colour Copper Wire
Jumper to Pin 1 Yellow
Pin 1
Pin 2
Pin 3
Function Ground / Shield Instrument
Mic Audio
Wire Colour Copper Wire
Jumper to Pin 1 Yellow
AT8139S
AT8439
10 dB
10k
100k
Pin 4
Blas + In
Red
Pin 4
Blas + In
Red
13-NOV--2020
Form No.ATGC-L0381-20
