Thank you for purchasing this product. Before using the product, read through the user
manual to ensure that you will use the product correctly.
Please keep this manual for future reference.
■ Features
• Ideal for drummers, keyboard players, guitarists or anyone requiring hands-free operation
• Low-visibilty headband provides stable, comfortable fit
• Pivot-mounted flexible mic boom descends from left or right side
• Cardioid polar pattern improving isolation of desired sound source
• Rugged design and construction for reliable performance
• ATM75cW equipped with cW-style locking and equipped with ATM75cH cH-style
screw-down 4-pin termination for Audio-Technica wireless systems
■ Notes on use
ATM75cW and ATM75cH wireless versions do not contain power module and includes
clothing clip and metal-frame pop filter only. 1.4 m cable terminated with locking 4-pin
connector. The connector is also compatible with Audio-Technica cW and cH type
body-pack transmitters.
For maximum stability and minimum visibility, the adjustable headband should be worn
around the back of the head, with each cushioned support pad resting on the temple in front
of the ear. The cable should remain clipped to the headband, with some slack at the boom
connection.
Avoid leaving the microphone in the open sun or in areas where temperatures exceed 43°C
for extended periods. Extremely high humidity should also be avoided.
■ Safety precaution
Although this product was designed to be used safely, failing to use it correctly may result in
an accident. To ensure safety, observe all warnings and cautions while using the product.
■Cautions for the product
• Do not subject the product to strong impact to avoid malfunction.
• Do not disassemble, modify or attempt to repair the product.
• Do not handle the product with wet hands to avoid electric shock or injury.
• Do not store the product under direct sunlight, near heating devices or in a hot, humid or
dusty place.
cH-style
cW-style

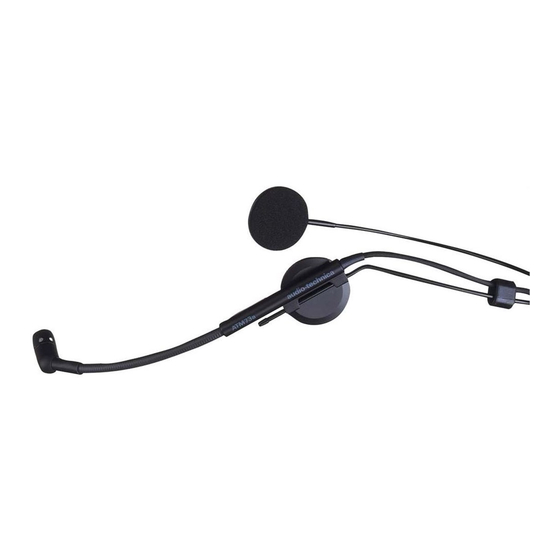

Cardioid Condenser Headword Microphones for Wireless System ATM75cW / ATM75cH
■ Specifications
Polar pattern
Frequency response
Open circuit sensitivity
Impedance
Maximum input sound level
Dynamic range (typical)
Signal-to-noise ratio
Voltage range
Dimensions
Output connector
Included accessories
• 1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL
* Typical, A-weighted, using Audio Precision System One.
For product improvement, the product is sublect to modification without notice.
■Polar pattern
0°
330° 30°
300° 60°
270°
90°
240° 120°
210° 150°
180°
SCALE IS 5 DECIBELS PER DIVISION
LEGEND
200 Hz
1 kHz
5 kHz
8 kHz
■ Connection procedure
■Cable Terminations
ATM75cW – Terminated with locking 4-pin connector for use with A-T UniPak
4
1
3
2
Wire Colour Copper Wire
ATM75cH – Terminated with locking 4-pin connector for use with A-T cH body-pack transmitters
4
1
Wire Colour Copper Wire
3
2
Audio-Technica Corporation
2-46-1 Nishi-naruse, Machida, Tokyo 194-8666, Japan
©2017 Audio-Technica Corporation
Global Support Contact: www.at-globalsupport.com
Fixed-charge back plate, permanently polarized condenser
Element
Cardioid
100 - 13,000 Hz
-51 dB (2.8 mV) re 1V at 1 Pa
200 ohms
132 dB SPL, 1 kHz at 1% T.H.D.
96 dB, 1 kHz at Max SPL
58 dB, 1 kHz at 1 Pa
2.5-10V
Weight 60 g
Microphone: 20.4 mm diameter
Headset: 120.0 mm nominal at widest point, 80.5 mm boom
cW-type (ATM73cW) / cH-type (ATM73cH)
Cable 1.4 m long (permanently attached to microphone),
2.8 mm diameter, 2-conductor shielded cable
(termination dependent)
AT8139L large windscreen; AT8139S small windscreen;
AT8439 cable clip.
AT8139L AT8139S
■Frequency response
20
10
0
-10
-20
-30
10 100 1k
Frequency in Hertz
LEGEND
0°, 50cm
Roll-off
®
body-pack transmitters
Pin 1 Pin 2 Pin 3 Pin 4
Function Ground / Shield Instrument Mic Audio Blas + In
Jumper to Pin 1 Yellow Red
Pin 1 Pin 2 Pin 3 Pin 4
Function Ground / Shield Instrument Mic Audio Blas + In
Jumper to Pin 1 Yellow Red
16-NOV--2020
AT8439
10 dB
10k 100k
Form No.ATGC-L0383-20
