ELREHA TARN 1600 Quick Start Manual

ELEKTRONISCHE REGELUNGEN GMBH

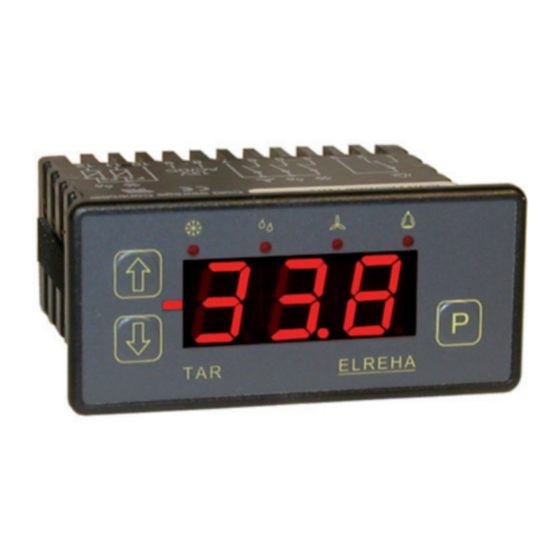

Milk Cooling Controller
Controller for Milk Cooling and Milk Storage
Applications
Replaces single Thermostats,
Digital Displays and Stirrer Timers
Stirrer Control, adjustable
Digital Temperature Display for Actual Values
and Setpoints, °C or °F
Min/Max Memory
Over-/Undertemperature Alarm,
Alarm Relay, Emergency Mode
Foil Keypad, Housing for Panel-/Door Mounting

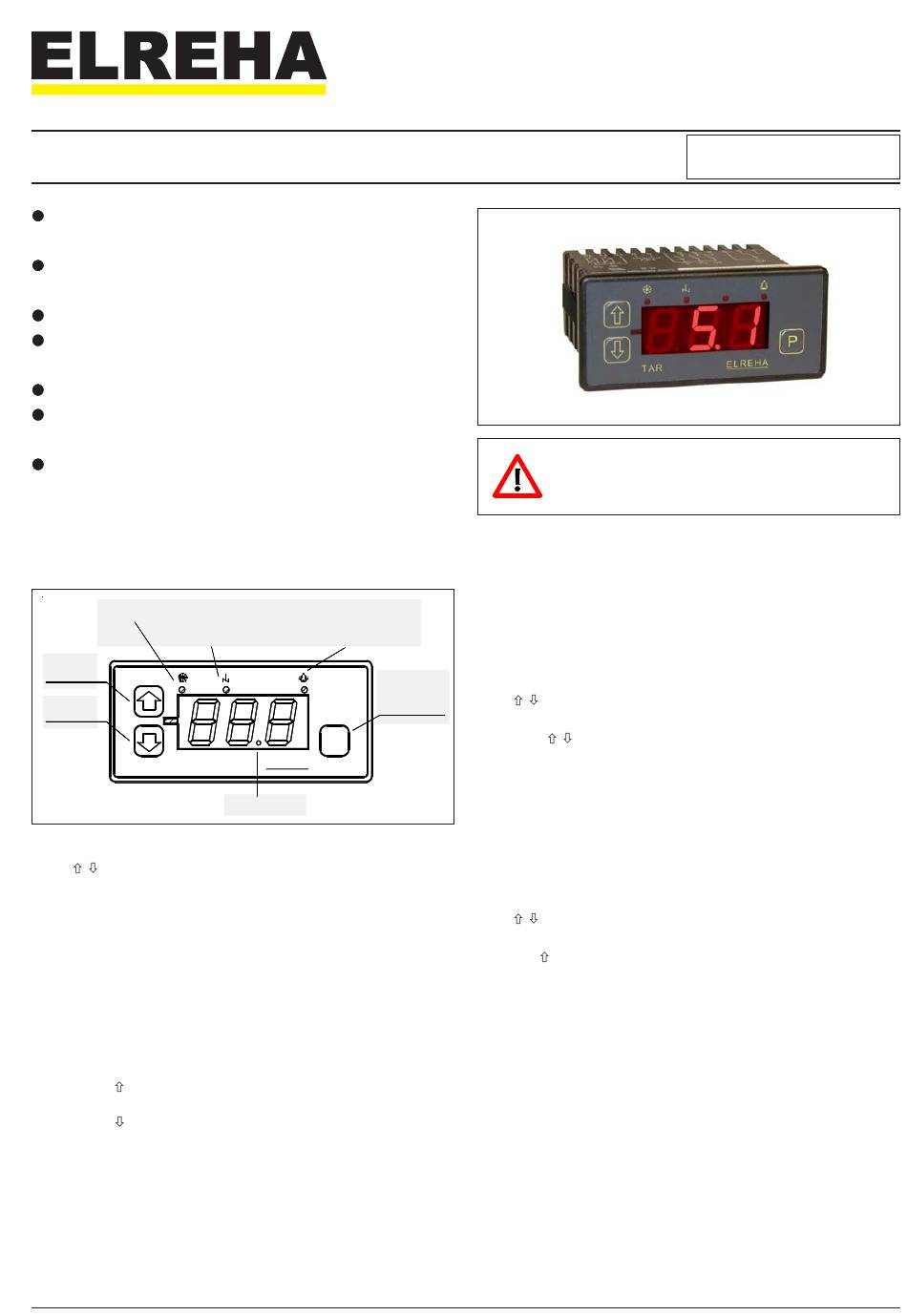

Operating Elements
Stirrer
Cooling ON
Blinking: Manually ON
Continuous: Automatically ON
Increase
Values
Decrease
Values
TAR
Auto scrolling
Hold " / "-keys to scroll values automatically.
Manual Stirrer Control
While the Actual Value is visible:
Hold key "P" >3 seconds ............... Stirrer starts, LED flashes.
Stirrer stops automatically when timer P06 is run down
or
Hold key "P" >3 seconds ............... Stirrer stops, LED off.
Reading the Minimum/Maximum Value
While the Actual Value is visible, the highest and the lowest
occured temperature value can be read:
• Hold key " " until "H1" appears, then release key.
For the next 3 seconds the display shows the highest value.
• Hold key " " until "L0" appears, then release key.
For the next 3 seconds the display shows the lowest value.
Erase the Minimum/Maximum Memory
Read any Min/Max Value, then press "P"-key immediately until
"del " appears. Now the memory is erased.
Reset Temperature Alarm
Press any key.
D-68766 Hockenheim, Germany
Schwetzinger Str. 103
Alarm
Blinking: Reset,
but still available
Programming
key
P
ELREHA
Decimal Point
TARN 1600
Please note Safety Information
on Page 3 !
Parameters
All selectable parameters hold a parameter number (e.g. P02), you
will find a listing on the next page.
Calling up and editing
Press key "P" ................................... parameter number appears
Use " / " ............................................ select desired parameter
Press "P" again .................................... parameter value appears
Use keys " / " ....................................... adjust parameter value
Press "P" again ................ value is stored, back to parameter no.
Unlock Keys
To prevent un-authorized persons from editing parameter values,
there is a locking function which allows only the most important
parameters to be changed at any time. The access code can
entered as follows:
Press key "P" ................................... parameter number appears
Use " / " ....................................... select code parameter (P15)
Press "P" again .................................... parameter value appears
Use key " " ................................................. set code No. to "88"
Press "P" again ................ value is stored, back to parameter no.
If no key is hit for about four minutes, the editing function is locked
again.
phone 0 62 05 / 2009-0
fax 0 62 05 / 2009-39
email team@elreha.de
internet www.elreha.de
No. 5311231-02/00E
Softw.Vers. al05xxxx
