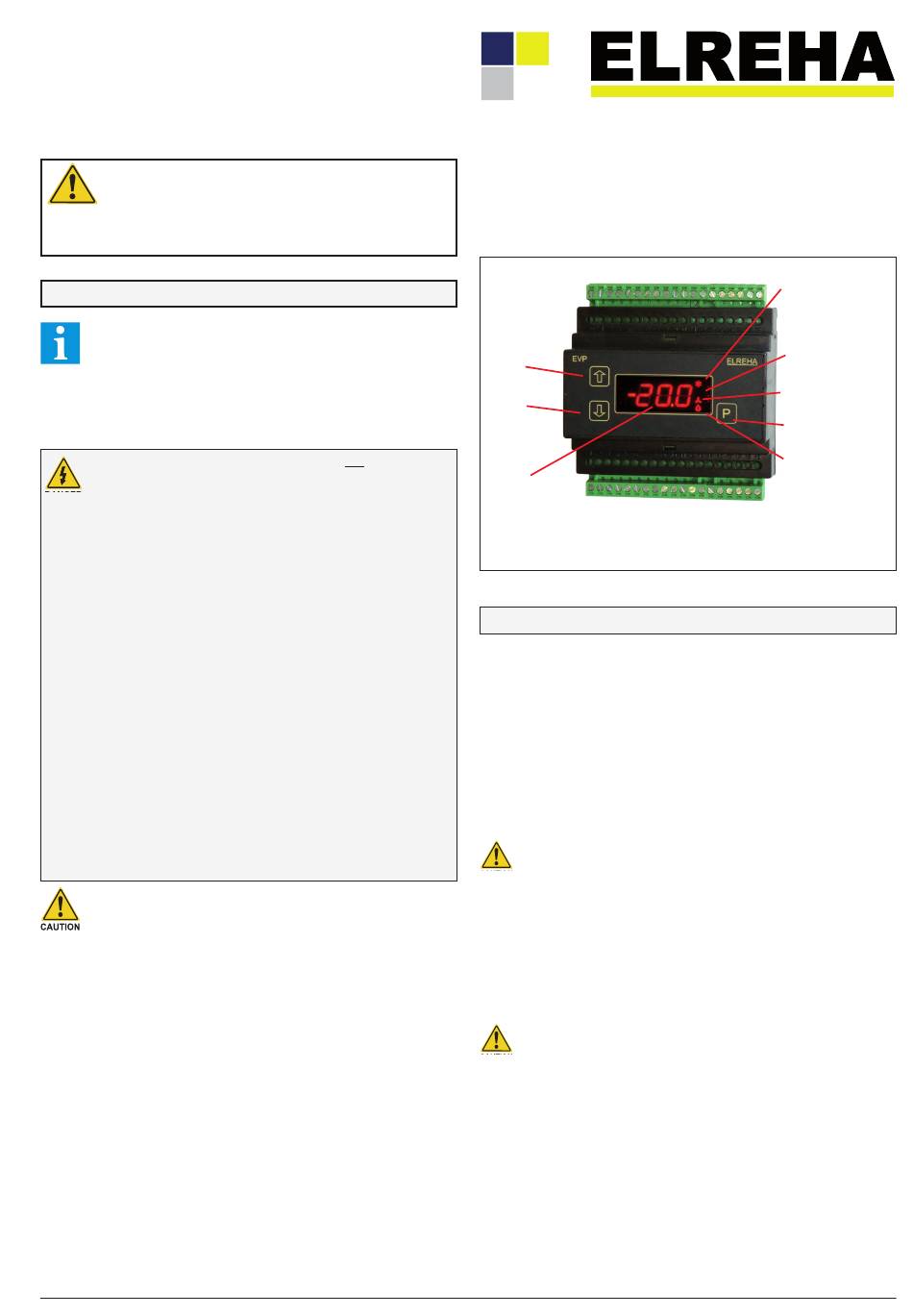

ELREHA EVP 3167 Short Manual

Brief Description / Applications

• Controller for all kind of Storages, such as Walk-In Coolers/Freezers,
Refrigerated Shelfs, Refrigerated Counters, Refrigerated Cases, etc.
• For standard cold storages or cold storages with pulse-width modulated
expansion valves, expansion valves with thermal drive and stepper
motor valves (with addtional EVS module)
• For single or network operation
• 5 Temperature sensors, 5 Relays, 4 Digital Inputs, Analogue In-/Output
Please note safety instructions !
This is a brief version of the technical manual.
DANGER A complete version you can find on www.elreha.de,
our free INFO-CD and via Handy Apps.
CONNECTION INFORMATION & SAFETY INSTRUCTIONS
The guarantee will lapse in case of damage caused by failure
to comply with these operating instructions! We shall not be
liable for any consequent loss! We do not accept liability for
personal injury or damage to property caused by inadequate
Notice
handling or non-observance of the safety instructions! The
guarantee will lapse in such cases.
This manual contains additional safety instructions in the
functional description. Please note them!
If you notice any damage, the product may not be connected
to mains voltage! Danger of Life!
A riskless operation is impossible if:
Danger
• The device has visible damages or doesn't work
• After a long-time storage under unfavourable conditions
• The device is strongly draggled or wet
• After inadequate shipping conditions
• Never use this product in equipment or systems that are
intended to be used under such circumstances that may
affect human life. For applications requiring extremely
high reliability, please contact the manufacturer first.
• The product may only be used for the applications
described above.
• Electrical installation and putting into service must be
done from qualified personnel.
• During installation and wiring never work when the
electricity is not cut-off ! Danger of electric shock!
• To prevent electrical shock, the device may only be
operated in a closed control cabinet or control box.
• Never operate unit without housing.
Danger of electric shock!
• A ll 'PE' terminals must be connected to PE.
Danger of electric shock! Additionally, the internal noise
filter will not work, faulty indicated values may occur.
• P lease note the safety instructions and standards of your
place of installation!
• B efore installation: Check the limits of the controller and
the application (see tech. data). Check amongst others:
- Make sure that all wiring has been made in accordance
with the wiring diagram in this manual.
- Supply voltage (is printed on the type label).
- Environmental limits for temperature/humidity.
- M aximum admitted current rate for the relays. Compare
it with the peak start-up currents of the controlled loads
(motors, heaters,etc.).
Outside these limits malfunction or damages may occur.
• S ensor/probe cables must be shielded. Don't install them
in parallel to high-current cables. Shielding must be
connected to PE at the end close to the controller.
If not, inductive interferences may occur.
• P lease note for elongation: The wire gauge is not critical,
but should have 0,5mm² as a minimum.
• M ounting the controller close to power relays is
unfavourable. Strong electro-magnetic interference,
malfunction may occur!
• T ake care that the wiring of interface lines meets the
necessary requirements.
• T F-type sensors are not designed for being immersed in
fluids permanently. In such a case, always use dip-fittings.
With extreme temperature variations, the sensor may be
damaged.
ELEKTRONISCHE REGELUNGEN GMBH
Short Manual
Cold Storage
Controller
Type:
increase
values
decrease
values
The currently displayed
setpoint is active

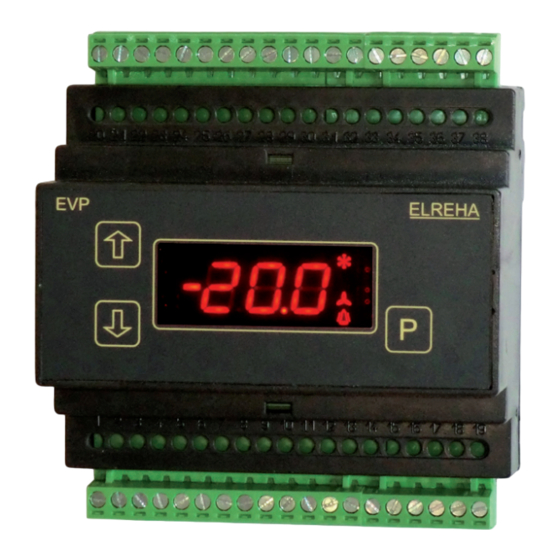

3 keys allow programming the unit, all parameters will be displayed on
the red LED-7-segment display. 4 red symbols at the right side indicate
specific control functions (not the relay states, these are displayed on the
'Actual Page' !).

Technical Data

Supply Voltage . ............................230V, 50-60Hz, max. 9VA (controller only)
Ambient Temperature .......................................................................0...+50°C
Max. Ambient Humidity ...........................................85% r.F., not condensing
Analogue Inputs ........................... 5x Temperature Sensors TF 201 (PTC)
o r TF 501 (Pt 1000), as well as customer specific probes
1x pressure transducer 0(2)-10V (scalable), Ri=69 kOhm
Measuring ranges . ..................TF 501
of the probe inputs TF 201
So1 ......................................... -40°C...+25°C
So2 ......................................... -50°C...+50°C
TF 202
The temperature ranges of the probe heads
and cables must be observed !
Accuracy ..................................................... ±0.5K in range -35...25°C within
Digital Inputs ......................................................4x mains voltage, 3mA max.
Relay Outputs . ......................1x SPDT, 3x SPST, isolated, 8A res/3A ind./250V
SSR-Output (e.g. for EEx-Valve) ...................... 1x Solid-State-Relay (SSR),
Please note the information at the connection plan about a
necessary snubber circuit at the SSR output!
Transducer Supply ............................................. 22V DC ±10%, 40 mA max.
Analogue Output . ..........................................0...10V or 4...20mA (selectable)
Display/Parameter Ranges .......................................... see parameter pages
Data Interfaces ...............................................................................3x RS 485
Data storage ......................................................................................unlimited
Real Time Clock ..........................................automatic summer/winter switch
10 days clock backup without mains voltage
Housing . ............... p lastic with foil keypad for rail mounting (DIN EN 50022),
5321437-00/00
2018-06-25, tkd/jr
EVP 3167
LED on = cooling
LED blinking
= Min. idle time or
= Cooling delay after
mains failure
= Cool. pause after defr.
LED on = defrost
LED blinking
= Pause before defrost
LED on = fan is running
LED blinking
= Start delay
Programming key
LED blinking = alarm
. ................... -100°C...+100°C
(Pt1000)
. .......... -50°C...+100°C
(PTC, 2 kΩ at°C)
. .... -55°C...+100°C
(PTC, 990 Ω at 25°C)
the ambient temperature range 10...30°C
overvoltage category II, pollution degree 2
overvoltage category III, pollution degree 2
max. 0,5 A / 250VAC
overvoltage category III, pollution degree 2
0...10VDC, max. current typ. 1mA
4...20 mA, max. shunt resistance 250 ohms
screw terminals 2,5 mm
/00
