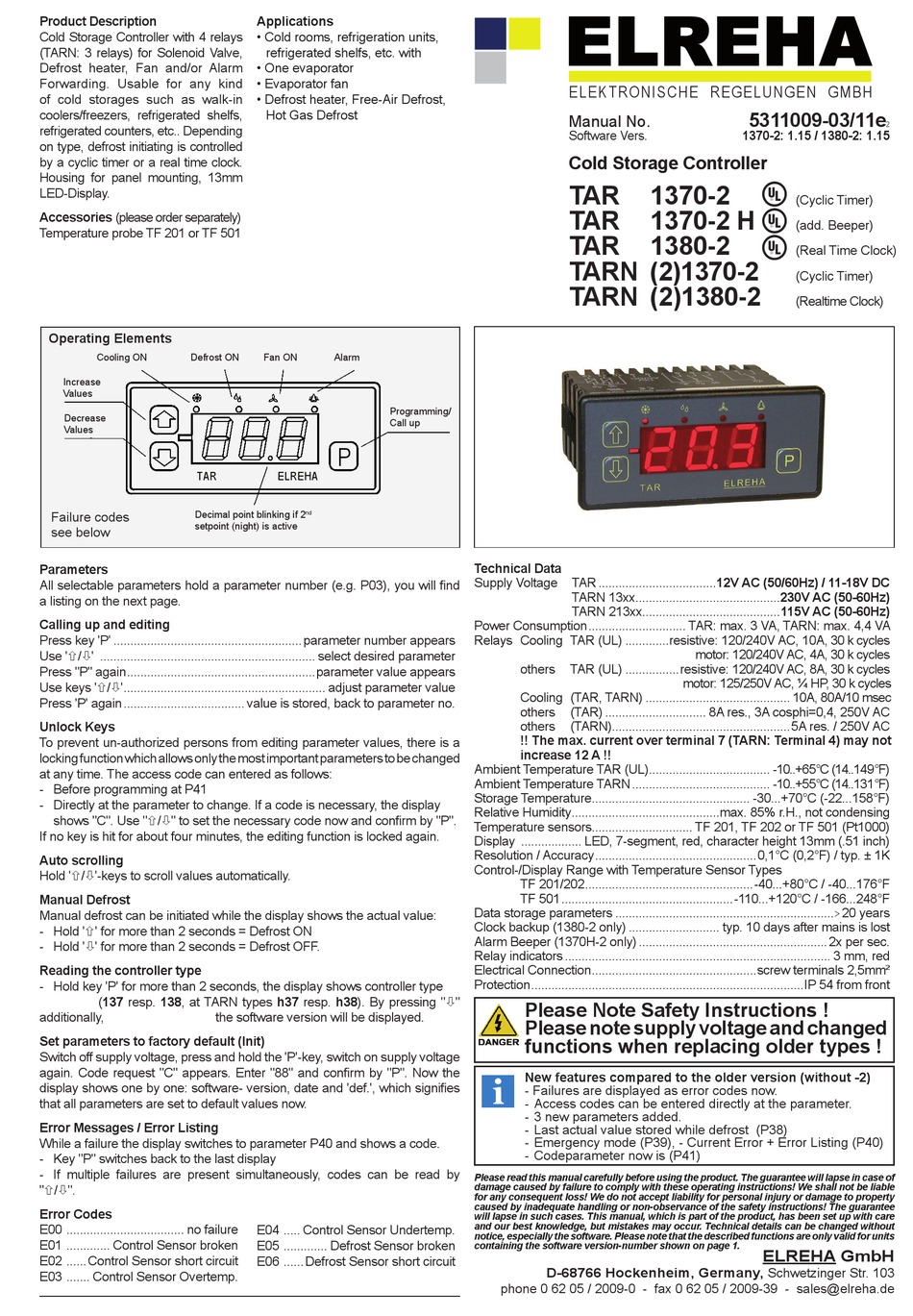

ELREHA TAR 1370-2 Manual

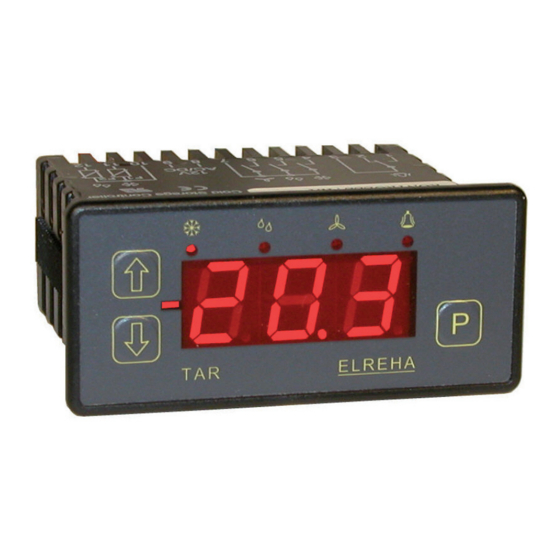

Product Description
Cold Storage Controller with 4 relays
(TARN: 3 relays) for Solenoid Valve,
Defrost heater, Fan and/or Alarm
Forwarding. Usable for any kind
of cold storages such as walk-in
coolers/freezers, refrigerated shelfs,
refrigerated counters, etc.. Depending
on type, defrost initiating is controlled
by a cyclic timer or a real time clock.
Housing for panel mounting, 13mm
LED-Display.
Accessories (please order separately)
Temperature probe TF 201 or TF 501
Operating Elements
Cooling ON Defrost ON
K ü hlung E IN A b tau ung E IN
Increase
W erte
Values
erhöhe n
Decrease
W erte
Values
verrin gern
TAR
Failure codes Decimal point blinking if 2 D ezim alpu nkt blinkt
w enn N a chtsollw ert aktiv
setpoint (night) is active
see below
Parameters
All selectable parameters hold a parameter number (e.g. P03), you will find
a listing on the next page.
Calling up and editing
Press key 'P' ........................................................parameter number appears
Use '/' ................................................................ select desired parameter
Press "P" again ........................................................parameter value appears
Use keys '/' ............................................................ adjust parameter value
Press 'P' again .................................... value is stored, back to parameter no.
Unlock Keys
To prevent un-authorized persons from editing parameter values, there is a
locking function which allows only the most important parameters to be changed
at any time. The access code can entered as follows:
- Before programming at P41
- Directly at the parameter to change. If a code is necessary, the display
shows "C". Use "/" to set the necessary code now and confirm by "P".
If no key is hit for about four minutes, the editing function is locked again.
Auto scrolling
Hold '/'-keys to scroll values automatically.
Manual Defrost
Manual defrost can be initiated while the display shows the actual value:
- Hold '' for more than 2 seconds = Defrost ON
- Hold '' for more than 2 seconds = Defrost OFF.
Reading the controller type
- Hold key 'P' for more than 2 seconds, the display shows controller type
(137 resp. 138, at TARN types h37 resp. h38). By pressing ""
additionally,
Set parameters to factory default (Init)
Switch off supply voltage, press and hold the 'P'-key, switch on supply voltage
again. Code request "C" appears. Enter "88" and confirm by "P". Now the
display shows one by one: software- version, date and 'def.', which signifies
that all parameters are set to default values now.
Error Messages / Error Listing
While a failure the display switches to parameter P40 and shows a code.
- Key "P" switches back to the last display
- If multiple failures are present simultaneously, codes can be read by
"/".
Error Codes
E00 ................................... no failure
E01 ............. Control Sensor broken
E02 ......Control Sensor short circuit
E03 ....... Control Sensor Overtemp.
Applications
• Cold rooms, refrigeration units,
refrigerated shelfs, etc. with
• One evaporator
• Evaporator fan
• Defrost heater, Free-Air Defrost,
Hot Gas Defrost
Fan ON Alarm
Lü fter E IN A la rm
P rogra m -
m iere n /
A u fru fe n
P
ELREHA
nd
the software version will be displayed.
E04 ..... Control Sensor Undertemp.
E05 ............. Defrost Sensor broken
E06 ......Defrost Sensor short circuit
Programming/
Call up
Technical Data
Supply Voltage
Power Consumption ............................. TAR: max. 3 VA, TARN: max. 4,4 VA
Relays Cooling TAR (UL) .............resistive: 120/240V AC, 10A, 30 k cycles
others
Cooling (TAR, TARN) ........................................... 10A, 80A/10 msec
others
others
!! The max. current over terminal 7 (TARN: Terminal 4) may not
increase 12 A !!
Ambient Temperature TAR (UL) .................................... -10..+65°C (14..149°F)
Ambient Temperature TARN ......................................... -10..+55°C (14..131°F)
Storage Temperature ............................................... -30...+70°C (-22...158°F)
Relative Humidity ............................................max. 85% r.H., not condensing
Temperature sensors .............................. TF 201, TF 202 or TF 501 (Pt1000)
Display .................. LED, 7-segment, red, character height 13mm (.51 inch)
Resolution / Accuracy ................................................0,1°C (0,2°F) / typ. ± 1K
Control-/Display Range with Temperature Sensor Types
TF 201/202 ..................................................-40...+80°C / -40...176°F
TF 501 ...................................................-110...+120°C / -166...248°F
Data storage parameters .................................................................$20 years
Clock backup (1380-2 only) ........................... typ. 10 days after mains is lost
Alarm Beeper (1370H-2 only) ........................................................2x per sec.
Relay indicators ............................................................................... 3 mm, red
Electrical Connection .................................................screw terminals 2,5mm²
Protection .................................................................................IP 54 from front
Please Note Safety Instructions !
Please note supply voltage and changed
functions when replacing older types !
New features compared to the older version (without -2)
- Failures are displayed as error codes now.
- Access codes can be entered directly at the parameter.
- 3 new parameters added.
- Last actual value stored while defrost (P38)
- Emergency mode (P39), - Current Error + Error Listing (P40)
- Codeparameter now is (P41)
Please read this manual carefully before using the product. The guarantee will lapse in case of
damage caused by failure to comply with these operating instructions! We shall not be liable
for any consequent loss! We do not accept liability for personal injury or damage to property
caused by inadequate handling or non-observance of the safety instructions! The guarantee
will lapse in such cases. This manual, which is part of the product, has been set up with care
and our best knowledge, but mistakes may occur. Technical details can be changed without
notice, especially the software. Please note that the described functions are only valid for units
containing the software version-number shown on page 1.
D-68766 Hockenheim, Germany, Schwetzinger Str. 103
phone 0 62 05 / 2009-0 - fax 0 62 05 / 2009-39 - sales@elreha.de
ELEKTRONISCHE REGELUNGEN GMBH
Manual No.
Software Vers.
Cold Storage Controller
TAR 1370-2
TAR 1370-2 H
TAR 1380-2
TARN (2)1370-2
TARN (2)1380-2
TAR ...................................12V AC (50/60Hz) / 11-18V DC
TARN 13xx ...........................................230V AC (50-60Hz)
TARN 213xx.........................................115V AC (50-60Hz)
motor: 120/240V AC, 4A, 30 k cycles
TAR (UL) ................resistive: 120/240V AC, 8A, 30 k cycles
motor: 125/250V AC, ¼ HP, 30 k cycles
(TAR) .............................. 8A res., 3A cosphi=0,4, 250V AC
(TARN) .....................................................5A res. / 250V AC
5311009-03/11e
2
1370-2: 1.15 / 1380-2: 1.15
(Cyclic Timer)
(add. Beeper)
(Real Time Clock)
(Cyclic Timer)
(Realtime Clock)
