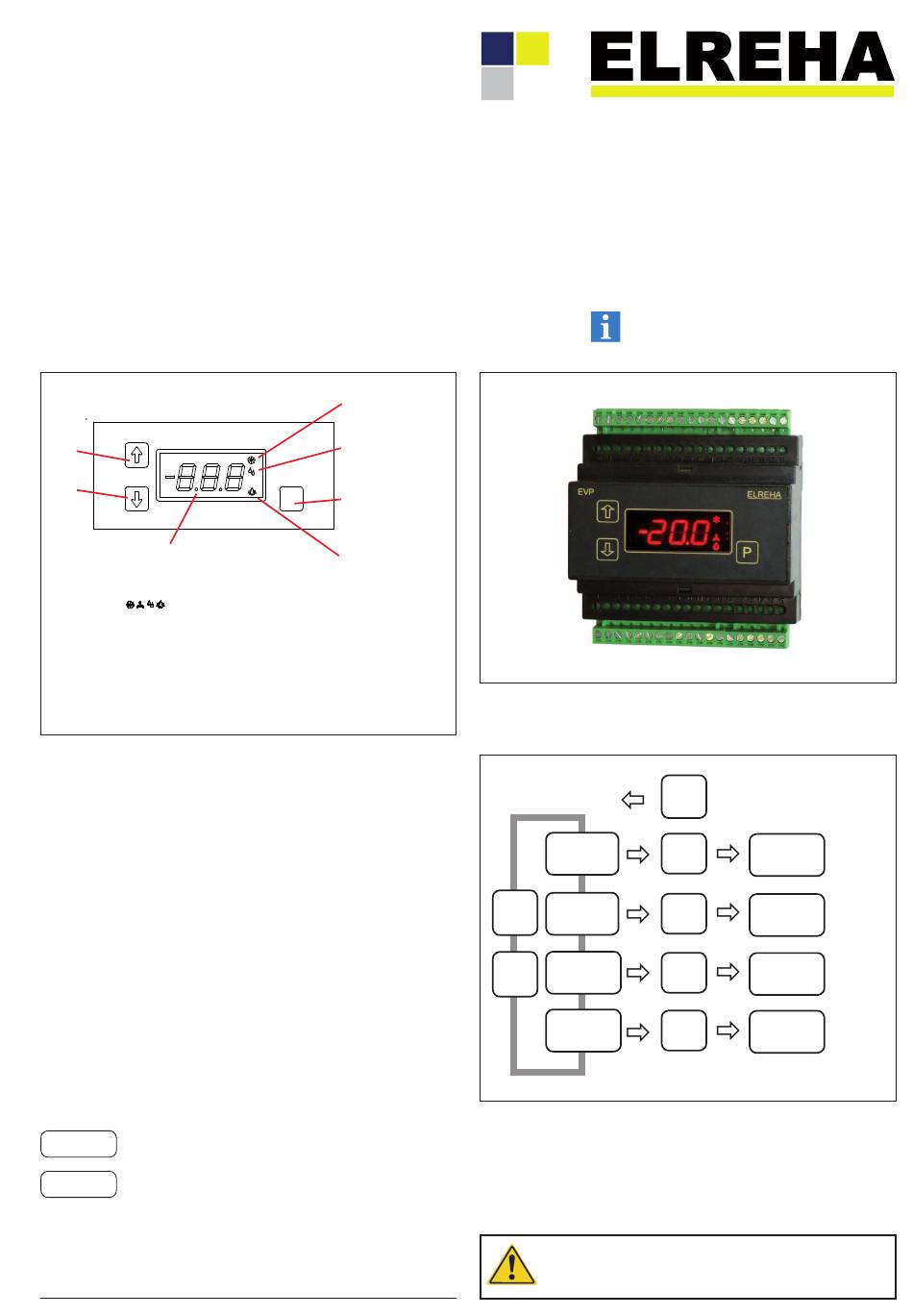

ELREHA EVP 3260 Technical Manual

Product Description / Applications
• Controller for humidification and dehumidify
• For single or network operation
• Connection to the Compound System VPR 5240-2
• 3 Humidity Sensor Inputs, 3 Relays, 2 Digital Inputs,
Analog In-/Output 0-10V / 4-20mA
• Connection of Remote Displays of the TAA xx15 series
Standard Functions
• Dual Setpoint Control
• Control via Analogue Output
• Alarm Limits
• Day-/Night Operation
• Assignment to Compounds
Operating / Operating Elements
EVP
increase
values
E VP 1 2
decrease
values
The currently displayed
setpoint is active
The current states of the digital inputs, the relays and the data trans-
mission can be read on the Actual Values Page under L60 and L61.
LEDs are blinking the same time =
control functions are disabled by digital input or via interface.
3 keys allow programming the unit, all parameters will be displayed on
the red LED-7-segment display. 3 red symbols at the right side indicate
specific control functions (not the relay states, these are displayed on the
‚Actual Page' !).
With a requested relay output, but not elapsed min. idle time, the appropri-
ate relay will not be activated.
The affiliated icon is blinking while min. idle is running.
Programming
All parameters of the EVP are distributed on different pages.
While normal operation or if no key is pressed for about 3 minutes, the EVP
displays the following information:
1st priority: ...............current failure (blinking)
2nd priority: .............operating states (e.g. ‚oFF')
3rd priority: ..............selected ‚permanent parameter' display
Selecting and Changing of Parameters
Key Action
P (> 2 sec.) .............Page name will be displayed
 ..........................Select desired page
P . ..........................Enter the page
 ..........................Select parameter
P . ..........................Prepare programming. Enter access code if necessary
 ..........................Change value
If you hold the key, the values change faster and faster
P . ..........................Confirm programming
P (> 2 sec.) .............Page name will be displayed again
Access Protection
Except the temperature setpoints, parameters can be changed only after
entering a correct access code. If you want to change such a parameter
after pushing the „P"-key, then the following display appears:
Now the controller expects the entry of a code number.
(00
This code number is always 88. Enter it by the up/down
88
keys and confirm it by pressing „P" again.
If no key is pushed for about 3 minutes, the code number must be
entered again.
LED on = dehumidify
LED blinking
= Min. idle time
LED on = humidification
LED blinking
3 4 E LR E H A
= Min. idle time
P
Programming Key
P
ELREHA
LED blinking = Alarm
ELEKTRONISCHE REGELUNGEN GMBH
Technical Manual
Humidity Controller
Type:
In controllers which contain older software
versions, some functions may not be available !
Parameter Pages
(L)

(r)

(P)
(h)
Please note safety instructions !
5311437-04/01E
from SoftwVers. 1.01
EVP 3260
P
> 2 sec.
1. Parameter
on the:
Actual
P
L01
Values
Page
Setpoint
P
r01
Page
Mode
P
P01
Page
Assign-
P
h01
ment
Page
2
