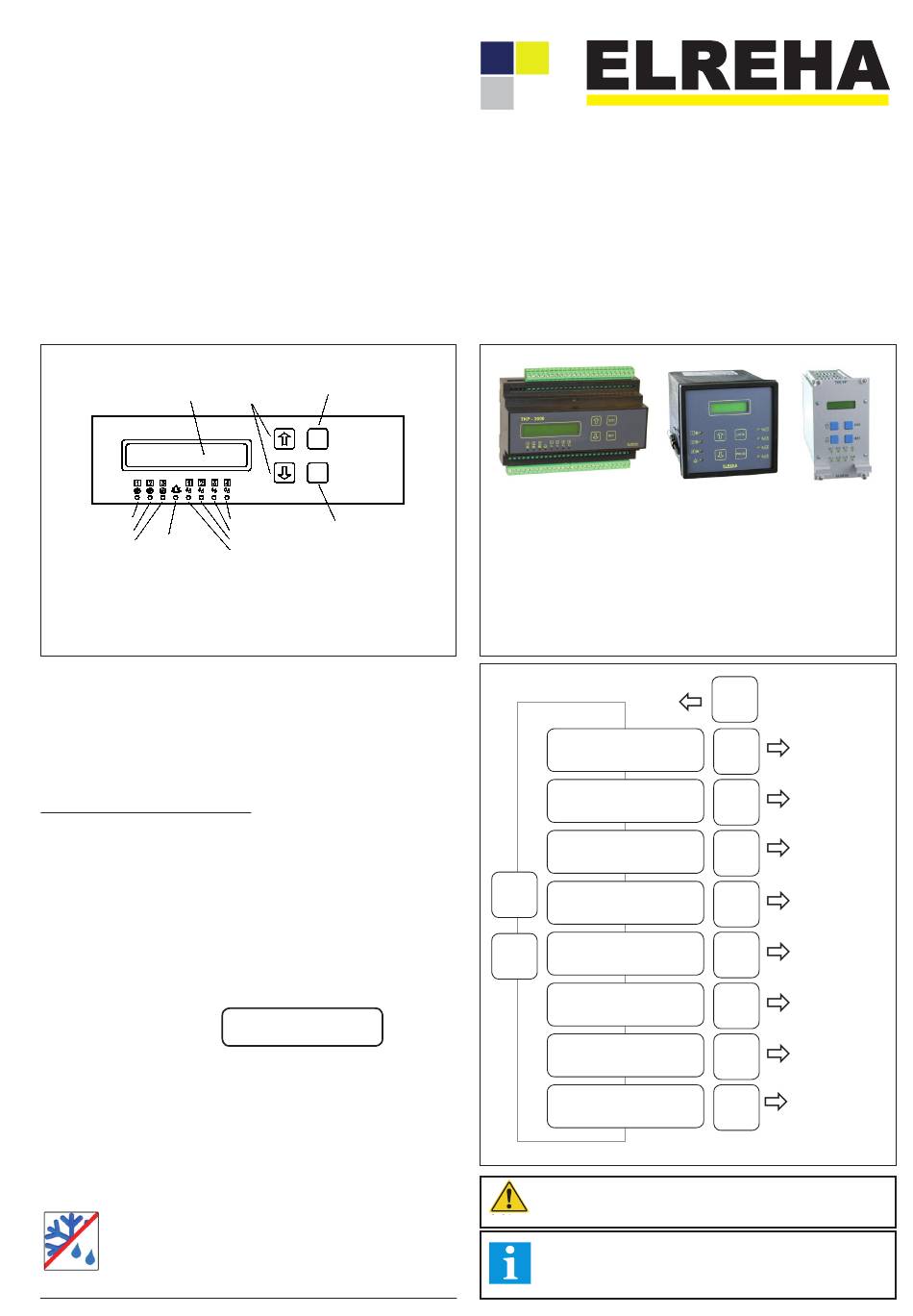

ELREHA TKP 3130/1 Technical Manual

Characteristics briefly
• refrigeration controller for all applications of cold stores, freezers,
shelfs, chest freezers...
• for use as a single controller or in a network
• 6 temperature sensors inputs, 6 relays, 4 digital inputs, analog output
• available in 3 standard housings for rail, panel and 19" mounting
Some Standard Functions
• LC-Display, dot-matrix, plain text, operation by 4 keys on the front
• Temperature control, multiple setpoints/setpoint layers, alarm thermostats
• Compressor Idle-Time, runtime monitoring of refrigeration
• Fan control with delay times for start and stop
• Roller blind control, frame heater control, pulsed, different for day/night
• Analog output usable for actual value image or for P, PI, PID-T1-control
• Adjustable Emergency Mode
• Door contact input
• Intelligent defrost control, able to learn
(x140 only)
Operating / Operating Elements
LCD-Display f0r
parameters and values
TKP-3000
circuit 1
circuit 2
circuit 3 alarm
cooling

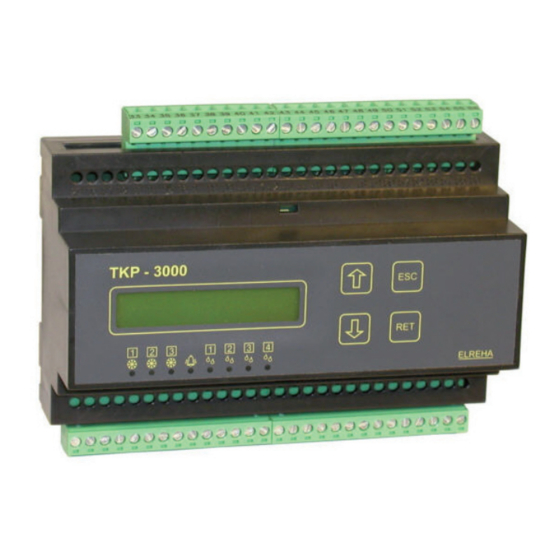

Operating Elements of the TKP 3130/3140 (The operating elements of all
TKP/TKC-types look very similar).
The units can be operated by 4 keys, all parameters will be displayed in plain
text on the backlighted LC-display. The TKP 3130/1 will be operated from keypad
and display of the VPR Compound Control System.
Programming
All readable and adjustable values (parameters) of the TKx units are listed
on several pages. While normal operation or if no key is pressed for about
3 minutes, the display shows the following information:
1. priority: current failure (only if there is a failure at the moment)
2. priority: controller states (e.g. if it is turned OFF by a digital input)
3. priority: the selected 'Basic Display'
Call up and changing of parameters:
Key Action
ESC .......If no pagename is displayed
  ........Select desired page
RET ........Enter this page
  ........Select parameter
RET ........Start programming, parameter name flashes.
Eventually, the unit asks here for an access code
  ........Adjust desired value. Pressing and holding a key effects
that the value will be incremented or decremented
automatically faster and faster.
RET ........Leave programming mode, confirm new value
ESC ........Back to page overview.
Identification
If this display appears
then this parameter is protected by a password. The controller expects
a code number. This code-no. (Code 1) is related from the actual time of
the day as the sum of the
Changing User level
To change the user level do the following:
• Select "Basic Display", press key "RET"
• Enter code of the desired user level
- Code for the service level is: (fixed) - 88 -
- Code for the confoguration level: month + hour + 20
Manual defrost release
• Select "Defrost Page"
• Set parameter "manual defrost" to "start"
up/down leave page
keys
ESC
RET
ELREHA
circuit 4
enter page /
circuit 3
confirm values
circuit 2
circuit 1
defrost
Identification
Enter :> 0 <
hour (0...23) plus 10
ELEKTRONISCHE REGELUNGEN GMBH
Technical manual
Cold Storage
Controllers
TKP
Types:
3130
3130/1
3140
Available Types
 TKP 3130 ...... 230V, for DIN-rail
 TKP 3130/1 ... without display and keys, TF-501 (Pt1000) probes only
 TKP 3140 ...... like 3130 + intelligent defrost
 TKP 23130 .... 115V, for DIN-rail
 TKP 23140 .... like 23130 + intelligent defrost
 TKC 5130 ...... 230V, panel mounting (front frame 96 x 96mm)
 TKC 5140 ...... like 5140 + intelligent defrost
 TKC 25130 .... 115V, panel mounting (front frame 96 x 96mm)
 TKC 25140 .... like 25140 + intelligent defrost
 TKC 19130 .... 230V, 19"-Al-cassette, 14 TE
 TKC 19140 .... like 19130 + intelligent defrost
 TKC 29130 .... 115V, 19"-Al-cassette, 14 TE
 TKC 29140 .... like 29130 + intelligent defrost
Parameter Pages
TKP/TKC Test
20.02.18 11:49
actual values
20.02.18 11:49
setpoint page
20.02.18 11:49

defrost page
20.02.18 11:49

mode page
20.02.18 11:49
assignment page
20.02.18 11:49
hist.fail page
20.02.18 11:49
act.fail page
20.02.18 11:492
Please note Safety Instructions !
Caution
In controllers with older software versions some functions may
be not available.
Notice
5310902-11/25 /00
e
2018-05-30 tkd/jr
from SoftwVers. 7.01 (Rev.P)
TKC TKC
5130 19130
5140 19140
ESC
User Code
RET
sensor 1, etc
RET
setpoint level X,
RET
etc.
defrost mode,
RET
etc.
date, time, etc.
RET
configuration
RET
last failure 1,
RET
etc.
current failure,
RET
etc.
