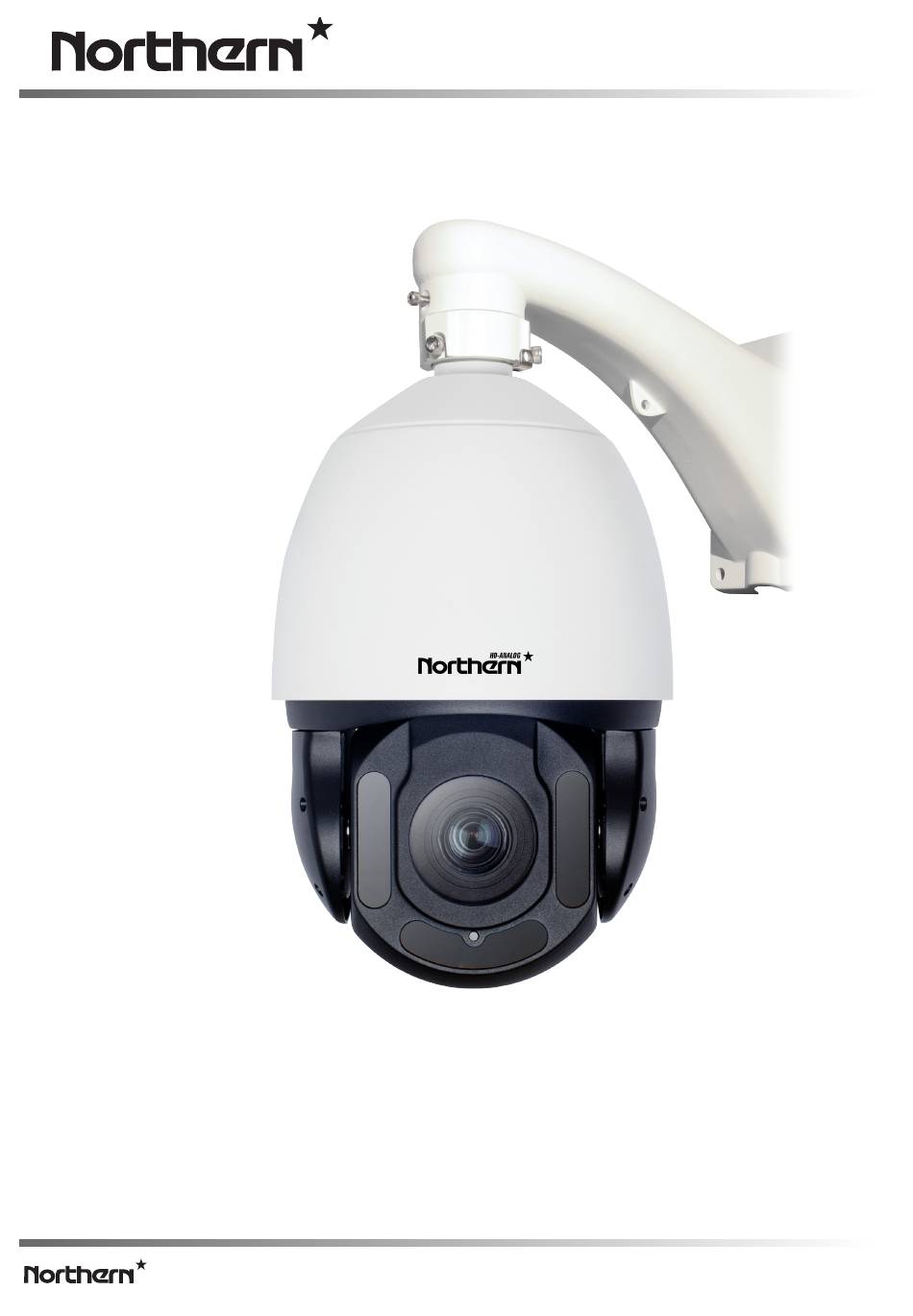

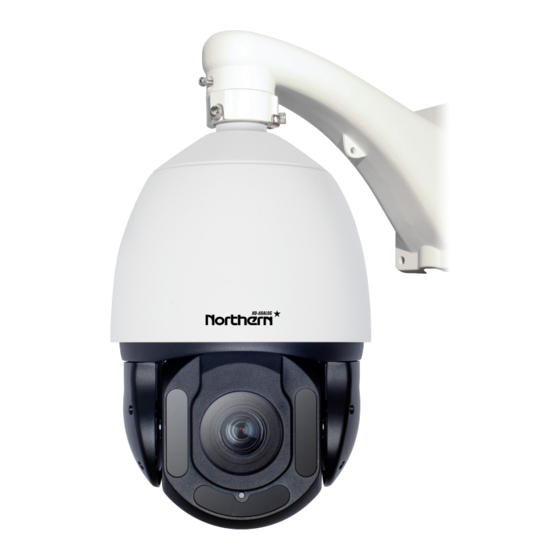

  • Page 1 HDPTZ33X User Manual ♦ ♦ 2995 Foothills Blvd, Suite 200, Roseville, CA 95747 855-388-7422 www.northernvideo.com Rev. 102920...

  • Page 3: About This Document

    Infrared Speed Dome User Manual About This Document Purpose This document describes how to set and use the OSD menu for HDPTZ33X high speed dome camera managed by DVR. Symbol Conventions The symbols that may be found in this document are defined as follows.

  • Page 4: Table Of Contents

    Infrared Speed Dome User Manual Contents About This Document ........................1 Contents ............................. 2 1 Precaution ............................4 1.1 Electrical safety ..............................4 1.1.1 Transportation ............................4 1.1.2 Installation with Care ..........................4 1.1.3 Environment Requirements ........................4 1.2 Performance and Feature ............................5 1.2.1 Bulit-in Digital Camera ..........................
  • Page 5 Infrared Speed Dome User Manual 3.4 INFRARED LED ............................... 37 3.5 ALARMS SETUP .............................. 39 4 Appendix ............................41 4.1 Shortcut Key ............................... 41 4.2 Troubleshooting ..............................41 Issue V1.0 (202009-25)

  • Page 6: Precaution

    Infrared Speed Dome User Manual Precaution 1.1 Electrical safety Conform to country and local electrical safety standards when using or installing the product. Using local special power adapter. 1.1.1 Transportation The dome should be protected against extremes of pressure, vibration and humidity during storage and transportation.

  • Page 7: Performance And Feature

    Infrared Speed Dome User Manual 1.2 Performance and Feature This product is high-technology surveillance product with high definition and color camera, variable-speed pan/tilt and multifunction decoder. This product is easy to install and it has the following advantages: panning, tilting, zooming, low noise and simple operation.

  • Page 8: Osd Menu

    Infrared Speed Dome User Manual 1.2.4 OSD Menu ● All the menu options are displayed in English. ● Video OSD menu. It is easy to adjust the dome information and parameters by keyboard and menu display. ● May set park action, and set power up action or carry out appointed actions. 1.2.5 Internal Temperature Test ●...

  • Page 9: Monitor Function

    Infrared Speed Dome User Manual The user can control "Wide/Tele" to adjust zoom far and near of the image by keyboard controller to obtain panoramic image or close view that you need. The speed dome support digital zoom and optical zoom.

  • Page 10: Constant Temperature Function

    Infrared Speed Dome User Manual  Tour Tour is the built-in function in the speed dome. It can appoint setting in advance, and make pre- sets arranged in needful order in tour dwell. By inserting presets in tour dwell, to make the camera tour between these presets.

  • Page 11: Osd Main Menu

    Infrared High Dome User Manual 2 OSD Main Menu OSD Main Menu 2.1 Procedure 2.1.1 Camera Control over DVR UTC Step 1 Connect the high speed dome camera to digital video recorder(DVR), use the DVR pan-tilt- zoom(PTZ) control module to invoke the PTZ operation interface, and select UTC, Figure 2-1 UTC operation interface Step 2 Click to enter the PTZ setting interface, as shown in Figure 2-2.

  • Page 12: Osd Main Menu Interface

    Infrared High Dome User Manual 2 OSD Main Menu Figure 2-2 PTZ setting interface Step 3 Choose RS485 from PTZ Control Type drop-down list. Step 4 Choose PelcoD from Protocol drop-down list. Step 5 Choose 4800 from Baud rate drop-down list. Step 6 Click Save to save the setting.
  • Page 13 Infrared High Dome User Manual 2 OSD Main Menu Figure 2-3 OSD main menu interface Menu operation： “BACK”: Back to the former menu. “EXIT” ：Exit to menu “ON” ：Open some setting “OFF” ：Close some setting Issue V1.0 (2020-09-25)

  • Page 14: Osd Setting

    Infrared Speed Dome User Manual OSD Setting 3.1 SYSTEM The SYSTEM interface includes DOME INFO, ID SETTING, CLOKCK SETTING, AUTO RUN and DEFAULTS, as shown in Figure 3-1. Figure 3-1 SYSTEM interface 3.1.1 DOME INFO Procedure Step 1 Press the UP or DOWN button to select DOME INFO. Step 2 Press the SET or RIGHT button to open the DOME INFO interface, as shown in Figure 3-2.

  • Page 15: Id Setting

    Infrared High Dome User Manual 3 OSD Setting Figure 3-2 DOME INFO Step 3 User can view VERSION, MODEL, PROTOCOL, DOME ID and BAUDRATE. Step 4 Choose BACK to return upper menu. Step 5 Choose EXIT to exit the main menu. 3.1.2 ID SETTING Procedure Step 1 Press the UP or DOWN button to select ID SETTING.

  • Page 16: Clock Setting

    Infrared High Dome User Manual 3 OSD Setting Step 4 Choose BACK to return upper menu. Step 5 Choose EXIT to exit the main menu. 3.1.3 CLOCK SETTING Procedure Step 1 Press the UP or DOWN button to select CLOCK SETTING. Step 2 Press the SET or RIGHT button to open the CLOCK SETTING interface, as shown in Figure 3-4.

  • Page 17: Auto Run

    Infrared High Dome User Manual 3 OSD Setting 3.1.4 AUTO RUN Procedure Step 1 Press the UP or DOWN button to select AUTO RUN. Step 2 Press the SET or RIGHT button to open the AUTO RUN, as shown in Figure 3-5. Figure 3-5 AUTO RUN Step 3 Press the UP or DOWN button to choose AUTO FLIP,PROPORTION, POWER UP RUN and IDLE RUN to modify.

  • Page 18: Defaults

    Infrared High Dome User Manual 3 OSD Setting Figure 3-6 IDLE RUN Step 7 Press the SET or RIGHT button to save the setting Step 8 Choose BACK to return upper menu. Step 9 Choose EXIT to exit the main menu 3.1.5 DEFAULTS Procedure Step 1 Press the UP or DOWN button to select DEFAULTS.

  • Page 19: Camera

    Infrared High Dome User Manual 3 OSD Setting Step 3 Press the SET or RIGHT button to clear all presets, patterns, and tours, restore factory or restart. The character will be shining when the camera is performing the operation. Step 4 Choose BACK to return upper menu. Step 5 Choose EXIT to exit the main men 3.2 CAMERA Choose CAMERA at main menu.

  • Page 20: Exposure

    Infrared High Dome User Manual 3 OSD Setting Figure 3-9 CAMERA NEXT interface LENS: Press RIGHT button to choose MUANUAL or DC 3.2.1 EXPOSURE EXPOSURE: Press SET button to enter the exposure interface, EXPOSURE includes SHUTTER, AGC, SENS-UP, BRIGHTNESS, D-WDR, DEFOG, as shown in Figure 3-10. Figure 3-10 EXPOSURE interface Issue V1.0 (2020-09-25)
  • Page 21 Infrared High Dome User Manual 3 OSD Setting SHUTTER: Press UP or DOWN to choose SHUTTER, press RIGHT button to choose, its value are  1/30,1/60,FLK, 1/240,1/480, 1/1000, 1/2000, 1/5000, 1/10000, 1/50000,X1, X2, X4,X6,X10, X15, X20, X25, and X30. AGC: Press UP or DOWN to choose AGC, press RIGHT button to adjust value, the value ranges from 1 to 15. ...
  • Page 22 Infrared High Dome User Manual 3 OSD Setting DEFOG: Press RIGHT button to choose OFF, AUTO, choose AUTO to enter DEFOG settings, as shown in Figure  3-13. Figure 3-13 EXPOSURE DEFOG interface Press ENTER to enter POS/SIZE to adjust the position and size of defog. Press SET button to enter the POS / SIZE interface, as shown in Figure 3-14, click SET again to adjust SIZE, click ENTER to return to POSITION.

  • Page 23: Backlight

    Infrared High Dome User Manual 3 OSD Setting DEFAULT: Press UP or DOWN to choose DEFAULT to default the defog. Click RETURN to return to EXPOSURE. 3.2.2 BACKLIGHT NEXT - BACKLIGHT: Press RIGHT button to choose OFF, BLC(LEVEL; MIDDLE, LOW, HIGH), or HSBLC.
  • Page 24 Infrared High Dome User Manual 3 OSD Setting Figure 3-16 HSBLC HSBLC parameters: 1. SELECT: Press RIGHT or LETF button to choose AREAS, there are four areas. 2. DISPLAY: Press ENTER to enter position or size interface, as shown in Figure 3-17. 3.

  • Page 25: Day & Night

    Infrared High Dome User Manual 3 OSD Setting Figure 3-18 HSBLC-NIGHT MODE 3.2.3 DAY & NIGHT DAY&NIGHT: Press RIGHT button to choose COLOR, B/W, EXT or AUTO, press SET enter the next interface, as shown in Figure 3-19. Figure 3-19 D&N EXT interface Issue V1.0 (2020-09-25)
  • Page 26 Infrared High Dome User Manual 3 OSD Setting Figure 3-20 D&N AUTO Figure 3-21 D&N B/W Issue V1.0 (2020-09-25)

  • Page 27: Speacial

    Infrared High Dome User Manual 3 OSD Setting 3.2.4 NR: Press SET button to enter NR interface, as shown in Figure 3-22. Press RIGHT button to choose LOW, MIDDLE, HIGH and OFF. Figure 3-22 NR WHITE BAL: Press RIGHT button to choose ATW, AWC→SET, INDOOR, OUTDOOR, MANUAL or AWB.
  • Page 28 Infrared High Dome User Manual 3 OSD Setting D-EFFECT: Set FREEZE, MIRROR(ROTATE, OFF, MIRROR and V-FLIP), NEG.IMAGE.  MOTION: OFF, ON. When the status is ON, user can set SELECT AREA, DISPLAY, SENSITIVITY, COLOR,  TURANS, ALARM (enter to set time) and DEFAULT. PRIVACY: set parameters of PRIVACY ...
  • Page 29 Infrared High Dome User Manual 3 OSD Setting Figure 3-25 SPECIAL—D-FFECT Figure 3-26 SPECIAL—MOTION Issue V1.0 (2020-09-25)
  • Page 30 Infrared High Dome User Manual 3 OSD Setting Figure 3-27 MOTION-DISPLAY Figure 3-28 MOTION-ALARM Issue V1.0 (2020-09-25)
  • Page 31 Infrared High Dome User Manual 3 OSD Setting Figure 3-29 SPECIAL—PRIVACY Figure 3-30 PRAVACY DISPLAY: MOSAIC, INVISION, COLOR, OFF. COLOR: WHITE, BLACK, RED, BLUE, YELLOW, GREEN, CYAN, USER TRANS. :0.25, 0.5, 0.75,1. Issue V1.0 (2020-09-25)
  • Page 32 Infrared High Dome User Manual 3 OSD Setting Figure 3-31 SPECIAL—D-FFECT Figure 3-32 SPECIAL—DFFECT-LIVE DPC Issue V1.0 (2020-09-25)
  • Page 33 Infrared High Dome User Manual 3 OSD Setting Figure 3-33 SPECIAL—DFFECT-WHITE DPC POS /SIZE: Press SET button to enter the interface to adjust the position and size.  START: Press SET button to enter the interface start the IRIS.  DPC VIEW: Press RIGHT or LEFT button to ON or OFF ...

  • Page 34: Adjust

    Infrared High Dome User Manual 3 OSD Setting Figure 3-35 SPECIAL—DFFECT-BLACK DPC POS /SIZE: Press SET button to enter the interface to adjust the position and size.  START: Press SET button to enter the interface start the IRIS.  DPC VIEW: Press RIGHT or LEFT button to ON or OFF ...
  • Page 35 Infrared High Dome User Manual 3 OSD Setting Figure 3-37 ADJUST SHARPNESS Figure 3-38 ADJUST-MONITOR (LCD) Issue V1.0 (2020-09-25)

  • Page 36: Function

    Infrared High Dome User Manual 3 OSD Setting Figure 3-39 ADJUST- MONITOR(CRT) ----End 3.3 FUNCTION You can set PRESETS, SCAN, PATTENERNS and TOUR at function interface, as shown in Figure 3- Figure 3-40 FUNCTION interface Issue V1.0 (2020-09-25)
  • Page 37 Infrared High Dome User Manual 3 OSD Setting Procedure Step 1 Press the UP or DOWN button to select FUNCTION. Press the SET button to open the FUNCTION interface, as shown in Figure 3-40. Step 2 Press the UP or DOWN button to select PRESETS, as shown in Figure 3-41. Figure 3-41 PRESETS interface Step 3 At PTZ interface ,click the arrow to choose preset., choose preset NO from drop-down list, the range is 1-128.
  • Page 38 Infrared High Dome User Manual 3 OSD Setting Figure 3-42 SCAN Step 5 Press the UP or DOWN button to select, press SET button to make sure to modify, and press the UP or DOWN button to change the value, and press the SET or RIGHT button to save. Step 6 Press the UP or DOWN button to select SET LEFT LIMIT, press SET button to enter setting status, rotate the camera set the limit, press the SET button to save settings.

  • Page 39: Infrared Led

    Infrared High Dome User Manual 3 OSD Setting Figure 3-44 TOUR The steps of setting PATTERNS and TOUR are similar to the SCAN steps. ----End 3.4 INFRARED LED The INFRARED LED interface can set SENSITIVTY, MANUAL DELAY, IR ON/OFF and IR BRIGHTNESS, as shown in Figure 3-45.
  • Page 40 Infrared High Dome User Manual 3 OSD Setting Procedure Step 1 Press the UP or DOWN button to select INFRARED LED. Press the SET button to enter。 Step 2 Press the UP or DOWN button to select SENSITIVTY. Press the SET or RIGHT button to set the SENSITIVTY value.

  • Page 41: Alarms Setup

    Infrared High Dome User Manual 3 OSD Setting IR control mode, can be divided into AUTO, MANUAL, TIME three modes.  In TIME mode, according to the user set time to switch IR;  in MANUAL mode, Call the 62 preset command to turn on the infrared LED, call the 63 preset to turn off IR LED ...
  • Page 42 Infrared High Dome User Manual 3 OSD Setting Figure 3-48 ALARMS SETUP interface INPUT CHANNEL: 1, the alarm device will be connected to the alarm cable.  ALARM ACTION: Press SET or RIGHT button to adjust, the icon & shows , press UP or DOWN button to ...

  • Page 43: Appendix

    Infrared High Dome User Manual 4 Appendix Appendix 4.1 Shortcut Key CALL+” N” +PRESET Show preset SET+” N” +PRESET Save preset CALL+”9” +PRESET Enter main menu CALL+”95” +PRESET Enter main menu CALL+”94” +PRESET Restart CALL+”92” +PRESET Set scan1 Left limit CALL+”93”...
  • Page 44 Infrared High Dome User Manual 4 Appendix Self-testing and The dome ID setting is incorrect. Refer to ID setting. image are normal but the dome is RS485 cable connection issue. Check Rs485connection, confirm the uncontrollable connection is correct and good in contact Video or image Video cable connection is not good.
