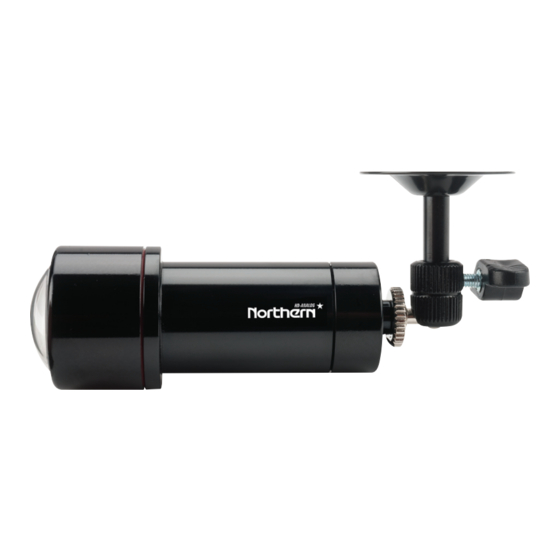

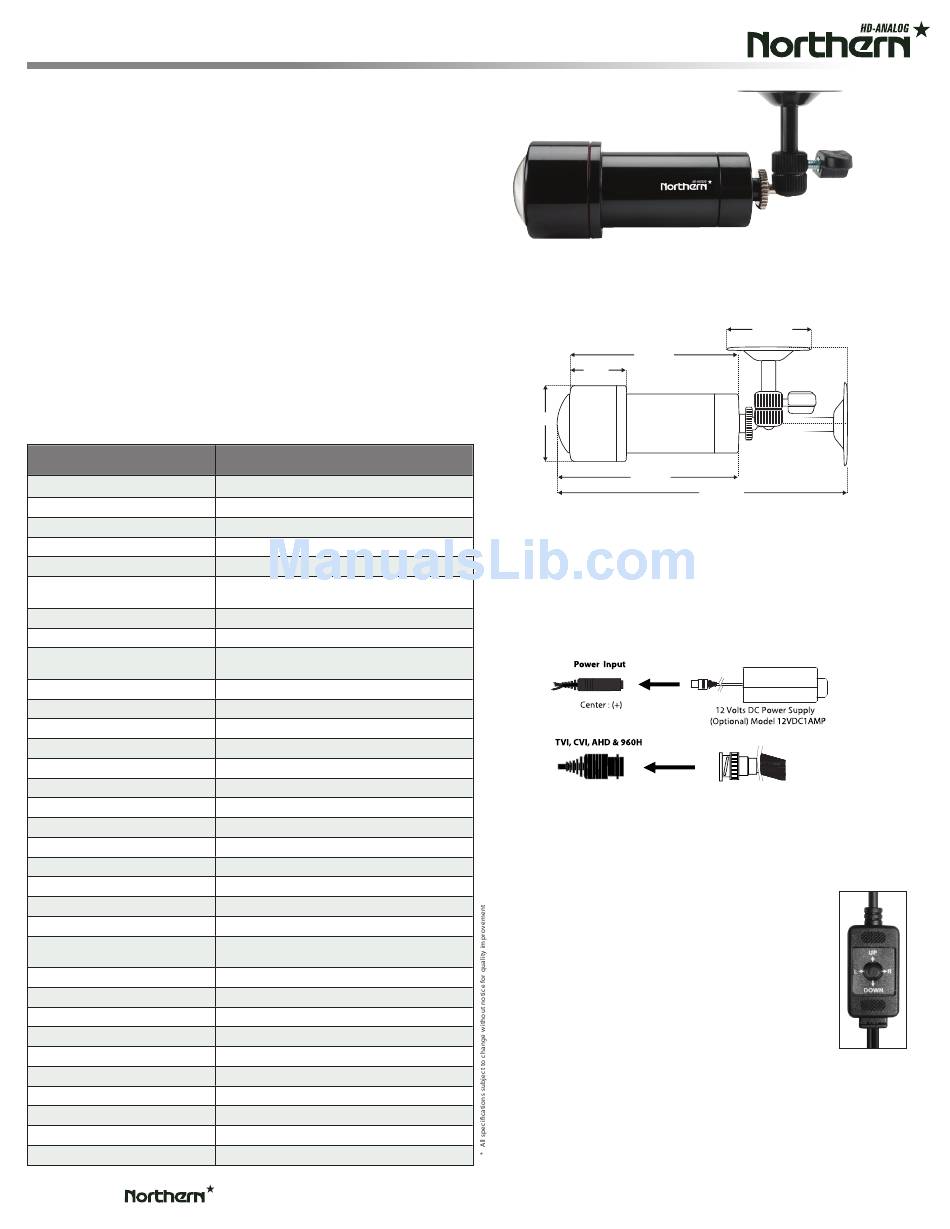

Northern HDBWIDE User Manual

HDBWIDE
4-in-1, Full HD 1080p Bullet Camera
2.5mm - 150° FOV

PRODUCT FEATURES

•
1/2.9" Sony CMOS Sensor
•
Multi Format (TVI, CVI, AHD, 960H)
•
Full HD 1080p Resolution
•
2.5mm/150° FOV Ultra Wide Angle Lens
•
Digital Wide Dynamic Range
•
Cable & UTC OSD Control
•
Sense-up / Slow Shutter Speed
•
3D Digital Noise Reduction
•
12 Volt DC power / IP66 Weatherproof

SPECIFICATIONS

Model No.
Image Sensor
Total Pixels
Active Pixels
Resolution
Scanning System
Dual OSD Control Access
(On Screen Display)
Digital WDR (Wide Dynamic Range)
DNR (Digital Noise Reduction)
Video Output
Lens Type - True Day Night
Sense-up
Shutter Speed
Minimum Illumination
S/N Ratio
Automatic Gain Control
Sync System
Gamma Characteristics
White Balance
Back Light Compensation
HBLC (High Back Light Compensation)
Day/Night
Mirror
Languages
Brightness
Motion Detection
Privacy Mask
Power Input
Power Requirement
Overall Camera Dimensions
Housing / Color
Weight
Operating Temperature
Weatherproof Rating
HDBWIDE
1/2.9" Sony CMOS Sensor
1984 x 1225
1920 x 1080
1920 x 1080 (1080p)
Progressive Scan
Cable Mounted Joystick Controlled /
UTC (coaxial) Controlled
Auto / Off / On - 0 ~ 8 Adjustable
2D & 3D, Low, Middle, High, Of
TVI, CVI, AHD & 960H
Selectable via OSD Joystick
2.5mm Ultra-Wide Angle Fixed Lens (150° FOV)
Off / Auto (x2 ~ x30 Selectable)
Auto, FLK, 1/30 ~ 1/50,000, x2 ~ x30
Color 1.0 Lux, B/W 0.5 Lux
More than 50dB
0 ~15 Adjustable
Internal
y = 0.45 typ
AWB / ATW / AWC->Set / Indoor / Outdoor / Manual
Off / BLC / HSBLC
On / Of
EXT / Auto / Color / B/W
Mirror / V-Flip / Rotate / Of
English, French, Spanish, German, Italian
(see OSD Menu for more)
0 ~100 Adjustable
On/Off (4 Zone Selectable)
On/Off (4 Zone Selectable)
12VDC Only
130mA
3.2"(W) x 1.4"(H) (70mm x 80mm)
Aluminum / White
.89 Lb.
-14°F ~ 122°F
IP66
3625 Cincinnati Avenue, Rocklin, CA 95765
CAMERA DIMENSIONS / LINE ART
81.2mm
25.9
35.5
82.5mm

CAMERA CABLE CONNECTION

Insert power lead into power connector (insure proper
voltage is supplied and observe polarity).
Insert video lead into BNC connector (push, then twist to
lock BNC connector in place).
Use In-Line OSD control to select format:
960H Mode : Push OSD LEFT for 5 seconds
AHD Mode : Push OSD RIGHT for 5 seconds
CVI Mode : Push OSD UP for 5 seconds
TVI Mode : Push OSD DOWN for 5 seconds

OSD CONTROL

Press the Joystick button on the
cable mounted OSD control to
access the OSD menu.

PACKAGE CONTENTS

(1) Camera
(1) Mounting Hardware Packet
(1) User Manual
(1) Camera Bracket
♦ ♦
888-874-3336 www.northernvideo.com
40.6mm
139.7mm
In-Line
Cable Mounted
OSD Control
Rev. 022217
40.6mm
