Summary of Contents for Northern TVID212IR

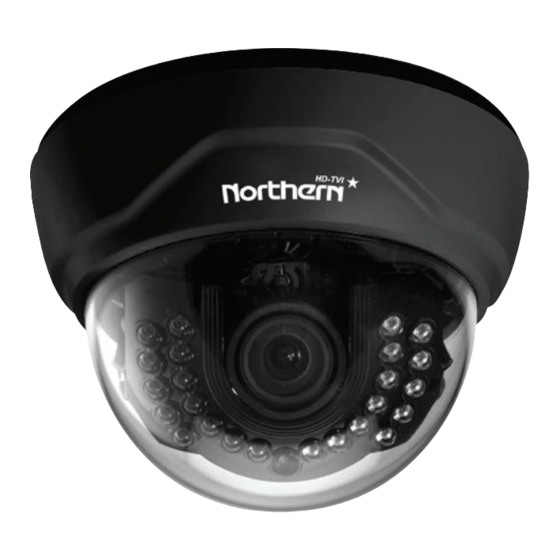

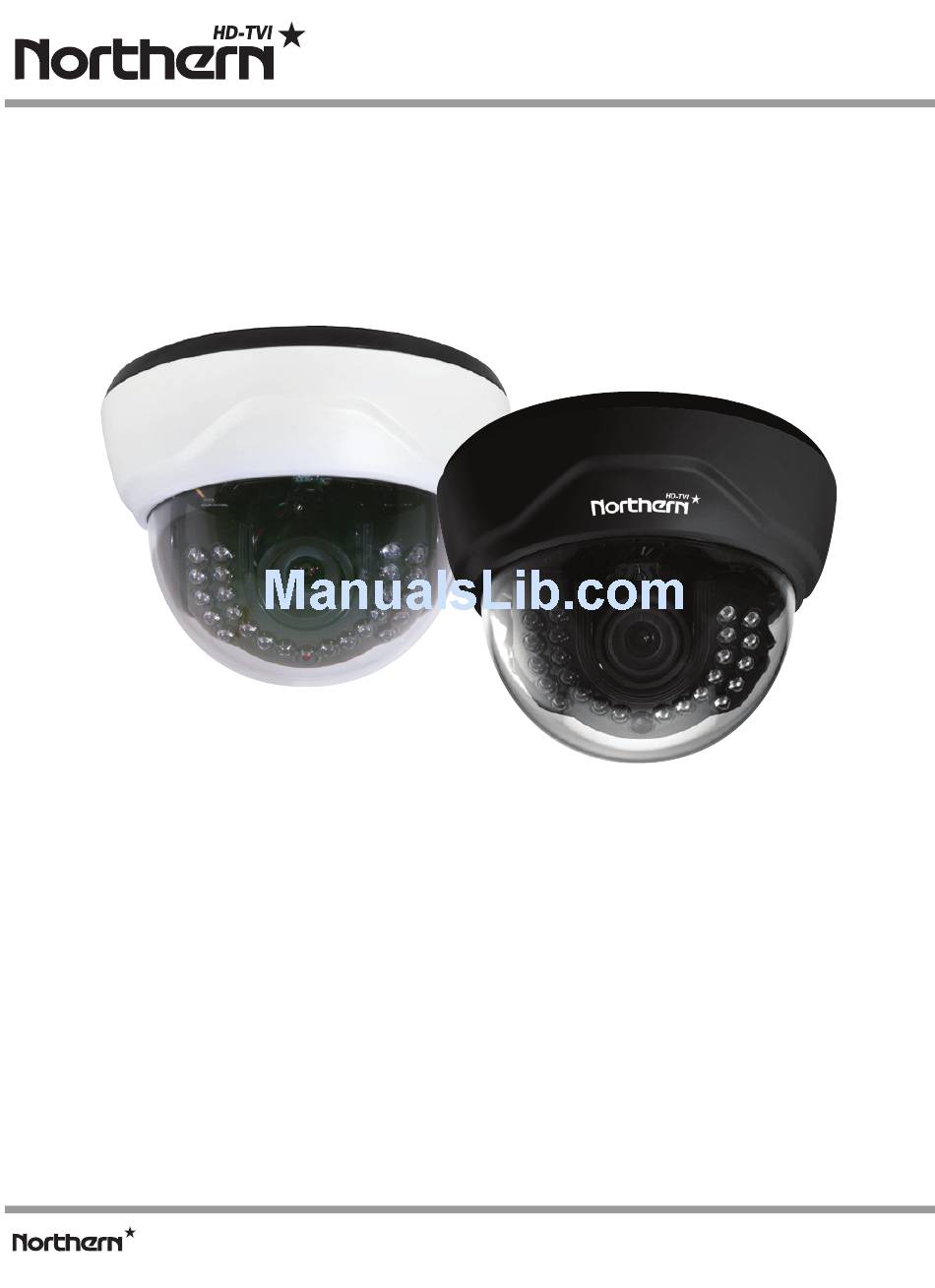

- Page 1 TVID212IR HD-TVI, Full HD 1080p Indoor IR Dome Camera Shown with snap-on cover. USER GUIDE: TVID212IR ♦ ♦ www.northernvideo.com 855-388-7422 3625 Cincinnati Avenue, Rocklin, CA 95765 888-874-3336 Rev. 062015...
- Page 2 Table of Contents Precautions Features Dimensions Installation Assembly Connection OSD Menu Setup Trouble Shooting 02 | Dome Camera...
-
Page 3: Safety Information
Safety information CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol indicates that dangerous voltage consisting a risk of electric shock is present within this unit. - Page 4 Precautions Indoor only design, do not install outdoors. Choose an ideal location for the camera, location must be protected against moisture and vibration. Be careful not to scratch the camera unit, especially lens or dome cover. Use the camera within the temperature (14 ˚ F ~ 122 ˚ F) . Handle with care.
- Page 5 Features SONY 1/2.9" CMOS Sensor. Full HD-TVI(1920x1080) Resolution. Digital-WDR, 3D-DNR. Day & Night Function. Full OSD with Multi-language. Multi function : Sense up(x2~x8), Motion Detection, Privacy Mask, Mirror(H/V/R), D-Zoom. 25M range visible in total darkness with 24pcs of IR LEDs. 3-Axis Bracket for 3D(Pan/Tilt/Roll) rotation.
-
Page 6: What's Included
What's Included (1) CAMERA (1) WHITE HOUSING (1) VIDEO TEST CONNECTOR (1) MOUNTING HARDWARE PACKAGE (1) USER GUIDE Parts Identified IR TYPE (AI LENS) 06 | Dome Camera... -
Page 7: Structure Specification
Dimensions Ø100 Ø130.8 Ø109 Structure specification MECHANICAL Ø130.8 X 101(H)mm Dimension Approx. 500g Weight ENVIRONMENT Construction Plastic Indoor Only Ingress Protection Operating Temp 14°F ~ 122°F 0% to 90% Humidity ELECTRICAL (Power Consumption) Regulated 12V DC ±10% Power Supply 12V DC / 24V AC Dual voltage Max. -
Page 8: Installation
Installation HOW TO INSTALL 1. Opening the dome : Push in the latch button. (Remove the protection sheet after installing.) Protection sheet LATCH BUTTON 2. Removing the dome : Lift the dome. When you push the latch button, it is unlocked and you can lift the dome. - Page 9 Installation 3. Camera installation (1) Fix the camera set with the supplied screws on ceiling or wall mount. If you don't use supplied screws, the camera may fall off. (2) Please refer to '4. Camera angle adjustment' regarding adjust camera angle. (3) Lens adjustment ①...
- Page 10 Assembly SK -D3 00(IR) DOME COVER A SS ’Y Assembly SK -D3 00(IR) CAMERA MODULE AS S’Y LED COVER ASS ’Y SCREW CONTROL PC B AS S’ Y HAR NESS SCREW PUSH BUTTON DISK CABLE BASE < Ceiling mount> < Ceiling mount> SCERW TP1 Mounting 3.5x20 2EA...
- Page 11 Connection AC 24V / DC 12V VIDEO TERMINAL Dome Camera | 11...
-
Page 12: Osd Menu Set Up
OSD Menu Set up • Main Set up LENS / BRIGHTNESS / MODE / SHUTTER / AGC / EXPOSURE SENS-UP WHITE BALANCE AUTO / AUTO ext / MANUAL BACKLIGHT BLC / HLC / OFF DAY&NIGHT AUTO_CDS / COLOR / BW DNR / SHARPNESS / COLOR GAIN / GAMMA / IMAGE D-WDR / DEFOG /... - Page 13 OSD Menu Set up OSD Menu Control and Set up The on-screen menu is operated with the control lever on the PCB. To call the on-screen menu, press the control lever straight downward. The main menu is displayed as follows. Select the menu item by tilting the control lever in direction ↑or ↓.
-
Page 14: Menu Setup
Menu Set up EXPOSURE Function of adjusting shutter speed and AGC LENS : Set to DC / DC auto-iris lens is standard. BRIGHTNESS : Adjust brightness level 0(dark) ~ 20(bright) MODE : Select AE MODE. INDOOR / OUTDOOR /DEBLUR SHUTTER : Can be set in AUTO or MANUAL AUTO : Auto shutter mode MANUAL : Adjust shutter manually. -
Page 15: White Balance
Menu Set up White Balance Function of adjusting WHITE BALANCE AUTO : Automatically adjusts color according to the lighting AUTOext : Faster extension version of Auto MANUAL : Manual white balance KELVIN : LOW / MIDDLE /HIGH R-GAIN : 0~20 B-GAIN : 0~20 Dome Camera | 15... - Page 16 Menu Set up BACKLIGHT Strong/large sources of light coming from behind the main subject (such as a person indoors that is in front of a window) cause the light meter to underexpose for the main subject. HLC : High Light Compensation / Masking the highlight in the image to distinguish the subject.
-
Page 17: Day & Night
Menu Set up DAY & NIGHT Switching of day operation/ night operation AUTO : Automatic switching between day operation (color mode) and night operation (black and-white mode) depending on the ambient brigh tness - IR LED : IR LED ON/OFF setting - ANTI-SAT. - Page 18 Menu Set up IMAGE DNR(3D-DNR) : Select Digital Noise Reduction (OFF / LOW /MIDDLE / HIGH) SHARPNESS : Adjust sharpness level (0 ~ 10) COLOR GAIN : Adjust Color gain value (0 ~ 20) GAMMA : Selecte gamma mode. (0.45~0.65) D-WDR : Select Digital WDR(Wide Dynamic Range) (OFF / LOW /MIDDLE / HIGH) DEFOG : Adjust DEFOG mode.
- Page 19 Menu Set up SPECIAL TITLE : Camera title edit and display on / o select. PRIVACY : Hide an area you want to hide on the screen.(16 point) MOTION : When there is movement of the subject on the screen, there will be motion detection.
-
Page 20: Image Range
Menu Set up SYSTEM IMAGE RANGE : Select pedestal level scale FRAME RATE : Select HD output frame rate. 30 FPS / 25 FPS CVBS : Select CVBS output mode. NTSC or PAL 20 | Dome Camera... - Page 21 Menu Set up RESET All the settings will be restored to the factory default EXIT Escape the menu Dome Camera | 21...
-
Page 22: Specification
Specification TVID212IR TVID212IR VIDEO Image Sensor 1/2.9" SONY CMOS Total Pixels 2010(H) 1108(V) = 2,227,080 (pixel) Active Pixels 1944(H) 1092(V) = 2,122,848 (pixel) Scanning System Progressive Scan Digital : 1920X1080p (1080p, 30/25fps) Resolution 1280X720p (720p, 60/50fps) Analog : 700TVL More than 50dB (AGC OFF) -
Page 23: Troubleshooting
Troubleshooting Nothing appears on screen. Check if the camera and monitor’s powers are on. (Also, the voltage and polarity.) Check if the video-out terminal of the camera and the video-in terminal of the monitor are correctly connected. Check if the iris of the lens is open. The screen seems blurry and darker. - Page 24 Memo 24 | Dome Camera...
- Page 25 Memo Dome Camera | 25...
