Bench Dog Tools Pro-Builder Series Owner's Manual page 9

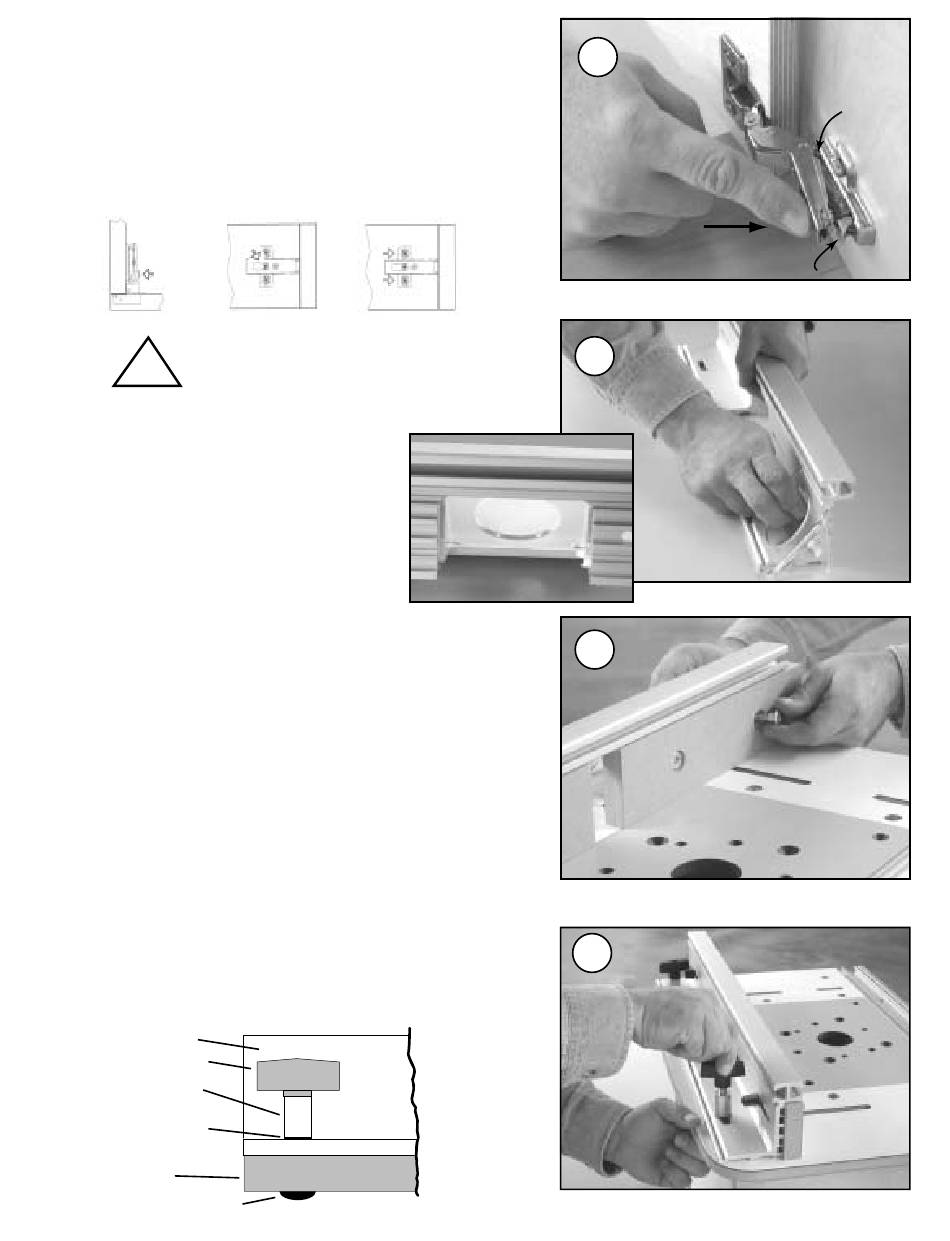

14. Attach door.
Clip on door by "hooking" front of hinge onto hinge mounting
plate first. Then push on back edge of hinge until it locks into
place. If door does not clip on, check hinge mounting plates for
proper installation. To remove door, push down on release
levers.
Frontal
Adjustment
Screw
Don't force the hinges onto
!
15. Install dust port.
Pull the dust port along the two 45º
grooves in the back of the fence until it
snaps into place (at the center of the open
area). The dust port fits tightly.
16. Install the (2) MDF subfences onto the fence.
Insert (4) 1/4-20 x 40mm shoulder bolts into the counter-bored
recess on the subfences. Light pressure may be required to seat
bolts properly. The bolts are designed to fit snugly to prevent
spinning. Note: the subfences have no specific left/right or
up/down orientation.
17. Attach fence to routertop (standard mounting).
Use the (2) 3/8-16 x 3" carriage bolts, (2) aluminum knob
spacers, (2) 3/8" nylon washers and (2) 3/8" (large) T-knobs. For
standard mounting, position fence to "rear" of the routertop, as
shown. The bolts enter from under the routertop.
fence
T-knob
spacer
nylon washer
routertop
3/8-16 x 2-3/4" carriage bolt
Lateral
Adjustment
Screw
the mounting plates!
Vertical
Adjustment
Screws
Page 9
14
next, push
to clip-on
15
16
17
first hook
hinge to
plate here
release lever
