Bench Dog Tools Pro-Builder Series Owner's Manual page 6

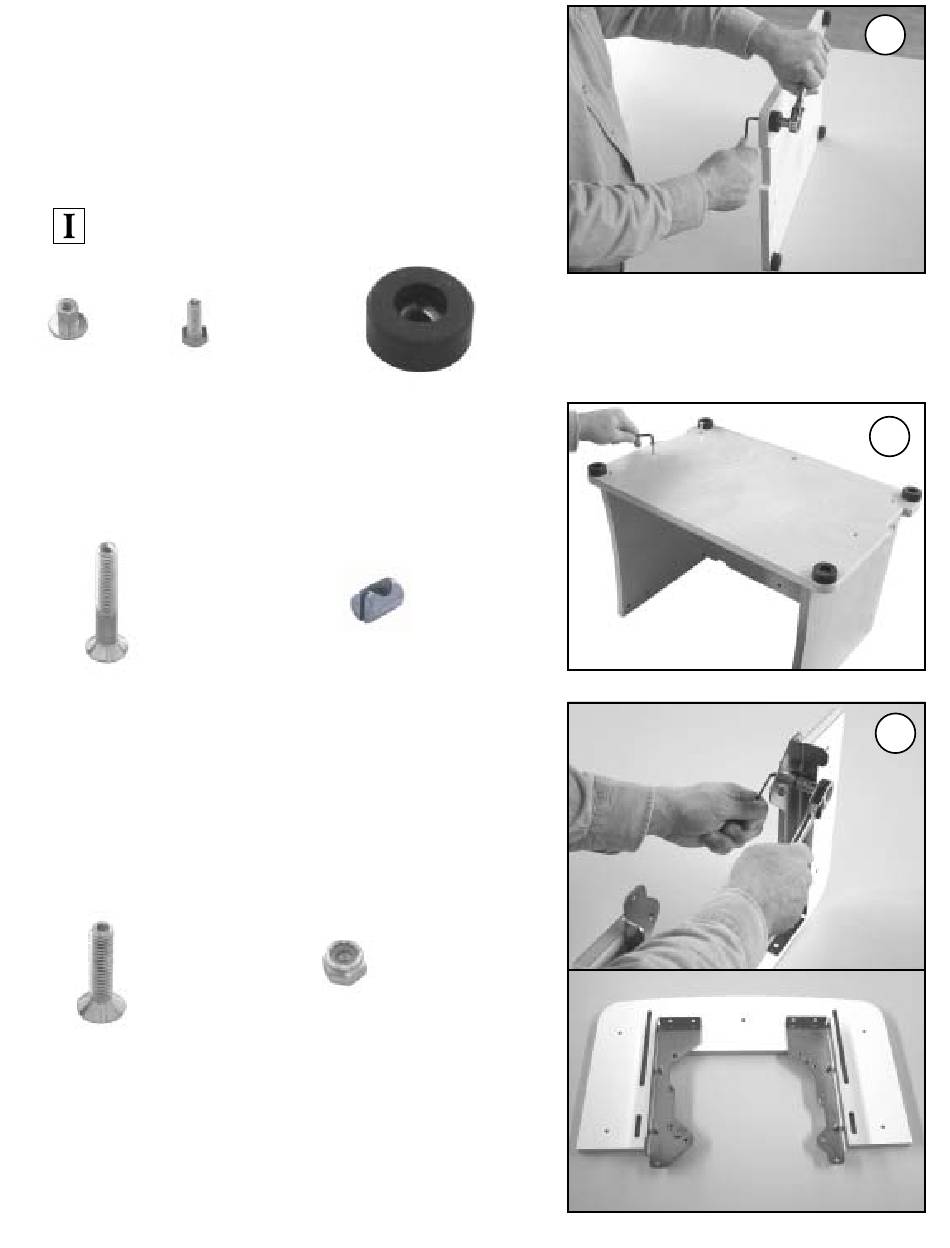

4. Attach the (4) rubber feet to base panel.
Insert the "T" nuts into the four large holes in the base panel.
Locate the head of the "T" nut on the top side of the base panel.
The bottom of the base panel has countersinks, the top does not.
Insert a 1/4-20 x 3/4" hex head bolt through the rubber feet, and
thread into "T" nut, as shown. Tighten using the 3/16" hex wrench
and a 7/16" socket. Do not overtighten.
The bottom side of the base panel has countersunk
holes to accept other fasteners.
T-nut
5. Attach base panel to cabinet assembly.
Flip the cabinet assembly upside down, as shown. Use the 1/4-
20 x 1-3/4" flat head socket cap screws and 1/4-20 cross dowels.
Tighten securely. Flip the cabinet assembly right side up when
done.
1/4-20 x 1-3/4"
flat head socket
cap screw
6. Attach insert brackets to routertop.
Position insert brackets as shown. Be sure to mount the brackets
to the underside of the routertop. The routertop surface has
countersinks, the underside does not. Do not fully tighten the
bolts.
1/4-20 x 1-1/4"
flat head socket
cap screw
1/4-20 x 3/4"
hex head bolt
cross dowel
nylon insert
lock nut
rubber
foot
1/4-20
Page 6
4
5
6
