Bench Dog Tools Pro-Builder Series Owner's Manual page 10

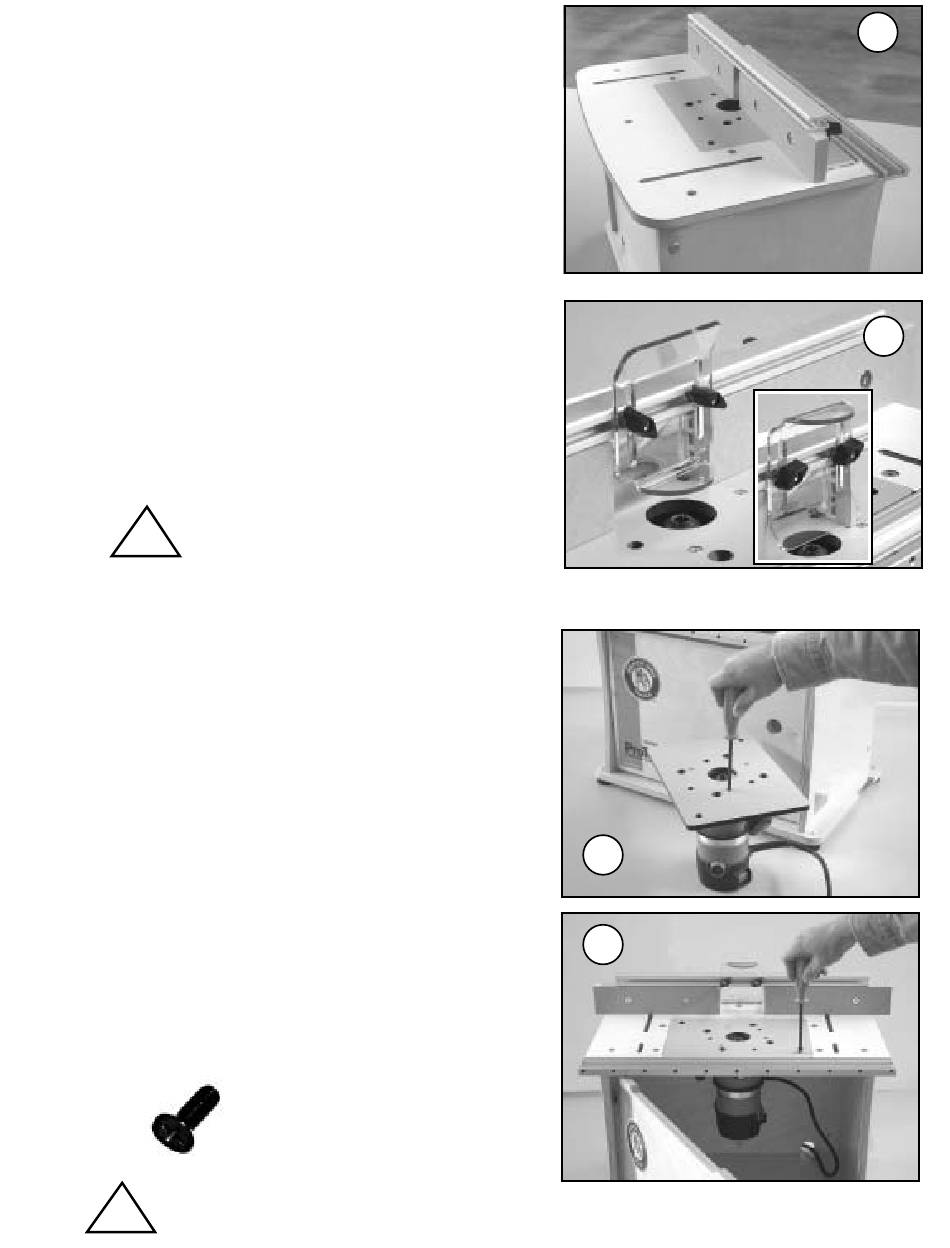

18. Attaching fence to routertop (reverse mounting).
For more workpiece support, the fence can be reversed and
positioned on the "front" of router table, as shown. Install the
bolts from inside the cabinet.
19. Attach the dual position bit guard to fence.
Pre-assemble the guard with the (2) 1/4-20 x 3/4" hex bolts and
(2) knobs. Slide both bolt heads into the fence's T-slot to attach
to fence.
Note: The bit guard is designed for dual positioning. The larger,
curved side is used for general routing of small and medium
sized bits. The smaller angled side is intended for edge jointing
and small diameter bits.
! Always use the bit guard!
20. Mount router to the insert plate.
This insert plate is predrilled to fit most popular routers, and
comes with proper mounting screws for these routers. In some
cases, you must drill your own holes and purchase your own
mounting screws. Please refer to the included template to
complete this step.
21. Install router and plate into the routertop.
Re-adjust the insert plate flush if necessary (see step 13). Install
the (2) 1/4-20 x 1" flat head phillips screws into the two corners of
the insert plate. These screws prevent side-to-side movement and
keep the insert plate firmly seated, preventing excessive vibration.
Do not overtighten as this could damage the insert plate.
Check the tightness of the hold-down
!
screws before each use!
1/4-20 x 1" (black)
flat head phillips
machine screw
20
21
*Router not included.
Page 10
18
19
