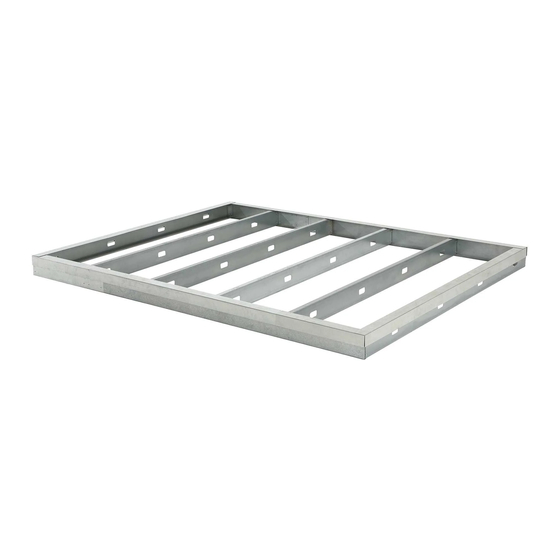

METAL PLATFORM
FOR AN 8' x 10'
LIFETIME
MODEL 60210
BEFORE ASSEMBLY:
• Assemble on a level surface
• At least 2 people are recommended for setup
• Three sheets of OSB (required but not included—
see page 7)
• Gravel or dirt (may be required but not
included—see page 18)
TOOLS REQUIRED (BUT NOT INCLUDED)
QUESTIONS?
CONTACT LIFETIME CUSTOMER SERVICE:
Call: 1-800-225-3865
7:00 am–5:00 pm (Monday–Friday) MST
and 9:00 am–1:00 pm Saturday MST
®
SHED
ADC (x1)
(Included)
Live Chat: www.lifetime.com/customerservice
(click on "LIVE CHAT" tab)
ASSEMBLY INSTRUCTIONS
Pour le français, voir la page 2. Para el español, ver la página 3.
MODEL# AND PRODUCT ID
Model Number: 60210
Product ID:
TABLE OF CONTENTS
Icon Legend................................4
Warnings & Notices.....................5
Platform Construction.................6
Cleaning & Care........................27
Registration..........................28
Warranty.................................29
(you will need both when contacting us)

Advertisement

loading

Related Manuals for Lifetime 60210

Summary of Contents for Lifetime 60210

  • Page 1 Platform Construction....6 Cleaning & Care......27 Registration......28 Warranty.........29 ADC (x1) (Included) QUESTIONS? CONTACT LIFETIME CUSTOMER SERVICE: MODEL# AND PRODUCT ID Call: 1-800-225-3865 Live Chat: www.lifetime.com/customerservice (you will need both when contacting us) (click on “LIVE CHAT” tab) Model Number: 60210 7:00 am–5:00 pm (Monday–Friday) MST Product ID: and 9:00 am–1:00 pm Saturday MST...

  • Page 2: Instructions D'assemblage

    Enregistrement......28 Garantie........30 ADC (x1) (Incluse) ® QUESTIONS ? CONTACTER AUX SERVICES À LA CLIENTÈLE LIFETIME N° DE MODÈLE ET RÉFÉRENCE DU PRODUIT Composer le 1-800-225-3865 Entretien en direct: (il faut avoir les deux au moment de nous contacter) www.lifetime.com/customerservice (cliquer sur la languette « LIVE CHAT ») N°...

  • Page 3: Instrucciones De Ensamble

    Limpieza y cuidado....27 Registro........28 Garantía........31 ADC (x1) (Incluida) ¿PREGUNTAS? ® PONERSE EN CONTACTO CON LOS SERVICIOS DE CLIENTES LIFETIME MODEL E ID DEL PRODUCTO Marcar : 1-800-225-3865 Chat en vivo: (se necesitan los dos al contactarnos) www.lifetime.com/customerservice Número de modelo: 60210 (cliquear en la lengüeta «LIVE CHAT»)
  • Page 4 ICON LEGEND / LÉGENDE DES ICÔNES / LEYENDA DE ÍCONOS • Indicates special heed should be taken when reading. • Indique qu’une attention spéciale doit être portée à la lecture. • Indica que uno debe prestar atención al leer. • Indicates the parts to be used for a section. •...
  • Page 5 WARNINGS & NOTICES / AVERTISSEMENTS ET AVIS / ADVERTENCIAS Y AVISOS English: • Failure to follow these warnings may result in serious injury or property damage and will void warranty. • To ensure safety, do not attempt to assemble this product without following the instructions carefully. •...
  • Page 6 PLATFORM CONSTRUCTION / CONSTRUCTION DE LA PLATE-FORME / CONSTRUCCIÓN DE LA PLATAFORMA HARDWARE REQUIRED / QUINCAILLERIE REQUISE / HERRAJE REQUERIDO Hardware Box / Boîte de quincaillerie Caja de herraje FJI (x40) ADC (x1) AHI (x6) ACJ (x72) FJH (x12) PARTS REQUIRED / PIÈCES REQUISES / PIEZAS REQUERIDAS Metal Parts / Pièces en métal Piezas de metal...
  • Page 7 PLATFORM CONSTRUCTION / CONSTRUCTION DE LA PLATE-FORME / CONSTRUCCIÓN DE LA PLATAFORMA PARTS REQUIRED (NOT INCLUDED) / PIÈCES REQUISES (NON INCLUSES) / PIEZAS REQUERIDAS (NO INCLUIDAS) Wood Parts / Pièces en bois Piezas de madera • 94" x 48" x 3/4" (239 cm x 122 cm x 19 mm) Sheet of Tongue & Groove Oriented Strand Board (OSB) (x2) •...
  • Page 8  SECTION 1 (CONTINUED) / SECTION 1 (SUITE) / SECCIÓN 1 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDO ACJ (x16) • Abut a short rim joist (FJE) to a long rim joist (FJF) as shown. Set a rim joist plate (FJG) over the joint, and align the holes. •...
  • Page 9  SECTION 1 (CONTINUED) / SECTION 1 (SUITE) / SECCIÓN 1 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDO ACJ (x24) • Attach a joist bracket (FJH) to the ends of a joist (FJJ) as shown using the hardware included. Repeat this step for the remaining Joists.
  • Page 10  SECTION 1 (CONTINUED) / SECTION 1 (SUITE) / SECCIÓN 1 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDO ACJ (x24) • Attach the joists to the rim joist as shown using the hardware included. Then, attach the other rim joist to the joists. •...
  • Page 11  SECTION 1 (CONTINUED) / SECTION 1 (SUITE) / SECCIÓN 1 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDO ACJ (x12) • Square the assembly. Distance A should equal distance B. • Carrer l’assemblage. La distance « A » devrait être égal à la distance « B ». •...
  • Page 12  SECTION 1 (CONTINUED) / SECTION 1 (SUITE) / SECCIÓN 1 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDO FJI (x4) • Using four (4) screws (FJI), secure only the rear edge of the sheet to the platform. Ensure the edge of the sheet is even with the edge of the rim joist.
  • Page 13  SECTION 1 (CONTINUED) / SECTION 1 (SUITE) / SECCIÓN 1 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDO FJI (x16) • Only after ensuring the platform is square, insert the two (2) screws (FJI) at the locations shown. •...
  • Page 14  SECTION 1 (CONTINUED) / SECTION 1 (SUITE) / SECCIÓN 1 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDO FJI (x12) 1.10 • Use twelve (12) more screws (FJI) to secure the last 94" x 22" x 3/4" (239 x 56 cm x 19 mm) sheet to the platform. •...
  • Page 15  SECTION 1 (CONTINUED) / SECTION 1 (SUITE) / SECCIÓN 1 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDO FJI (x2) 1.12 • Lay two more pieces of long fl ashing over the left and right edges of the platform as shown. •...
  • Page 16  SECTION 1 (CONTINUED) / SECTION 1 (SUITE) / SECCIÓN 1 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDO FJI (x2) 1.14 • Lay two pieces of short fl ashing (FJM) over the left and right edges of the platform as shown. •...
  • Page 17  SECTION 1 (CONTINUED) / SECTION 1 (SUITE) / SECCIÓN 1 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDO FJI (x2) 1.16 • Lay down the last piece of long fl ashing over the rear edge of the platform as shown, and secure with a screw (FJI) at each corner.
  • Page 18  SECTION 1 (CONTINUED) / SECTION 1 (SUITE) / SECCIÓN 1 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDO 1.18 • Where necessary, build up areas underneath the platform with rocks and gravel to support sagging areas and ensure the platform is level.
  • Page 19 1.20 Agujeros para canalización • Remove both Lifetime Center Floor Panels from the box. At one of the corners is a small rectangle with a divot at each end. Locate this rectangle. • Retirer les deux panneaux de plancher centraux Lifetime de la boîte. À l’un des angles on trouve un petit rectangle avec un trou à...
  • Page 20  SECTION 1 (CONTINUED) / SECTION 1 (SUITE) / SECCIÓN 1 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDO 1.21 • Turn the panels over and, using a little of the Butyl Tape (AHI), fi ll in the areas indicated. •...
  • Page 21  SECTION 1 (CONTINUED) / SECTION 1 (SUITE) / SECCIÓN 1 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDO AHI (x6) 1.22 • Before laying the fl oor of the shed down onto this metal platform (Section 6 or 7 of most assembly manuals), lay a line of butyl tape •...
  • Page 22  SECTION 1 (CONTINUED) / SECTION 1 (SUITE) / SECCIÓN 1 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDO 1.23 • With the paper backing still intact, assemble the fl oor and walls per the instruction manual (Section 6 and 7 of most assembly manuals).
  • Page 23  SECTION 1 (CONTINUED) / SECTION 1 (SUITE) / SECCIÓN 1 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDO • When aligning the doors (usually the second-to-last section in your shed assembly instruction manual), do the following: •...

  • Page 24: Notes / Remarques / Notas

    NOTES / REMARQUES / NOTAS...
  • Page 25 NOTES / REMARQUES / NOTAS...
  • Page 26 NOTES / REMARQUES / NOTAS...

  • Page 27: Cleaning And Care

    CLEANING & CARE Congratulations on your Lifetime product purchase. By following the instructions below, your new Lifetime product should provide you with years ® of service and enjoyment. Repair scratches or rust spots on the metal by sanding the affected area lightly; using a rust preventative spray primer; and fi...
  • Page 28 REGISTER today! ENREGISTRER CE PRODUIT EN LIGNE À WWW.LIFETIME.COM Chez Lifetime®, nous nous engageons à fournir des produits innovateurs de qualité. Lors de votre inscription, vous aurez l’occasion de nous faire parvenir vos commentaires. Votre opinion est importante pour nous.
  • Page 29 All merchandise is sold on this condition, and no representative of the company may waive or change this policy. 5. This product is not intended for institutional or commercial use; Lifetime Products, Inc. does not assume any liability for such use. Institutional or commercial use will void the warranty.
  • Page 30 2. Cette garantie n’est pas transférable et est expressément limitée à la réparation ou au remplacement du produit défectueux. Si le produit est déclaré défectueux selon les termes de cette garantie, Lifetime Products, Inc. réparera ou remplacera les ©...
  • Page 31 NO ESTÁN DISPONIBLES O SON OBSOLETAS. 1. El comprador original recibe la garantía de que las casetas Lifetime estarán libres de defectos de material o de mano de obra por un período de 10 años a contar desde la fecha de la compra original. La palabra “defectos” se defi ne como imperfecciones que perjudican el uso del producto.
  • Page 32 7:00 am–5:00 pm (M–F) MST and 9:00 am–1:00 pm Saturday MST ® AMÉLIORER VOTRE ACHAT LIFETIME EN AJOUTANT DES ACCESSOIRES OU DES AUTRES PRODUITS Pour acheter des accessoires ou des autres produits Lifetime , rendre-nous visite à : ® www.lifetime.com Ou composer au 1-800-424-3865 Du lundi au vendredi 7 h –...
