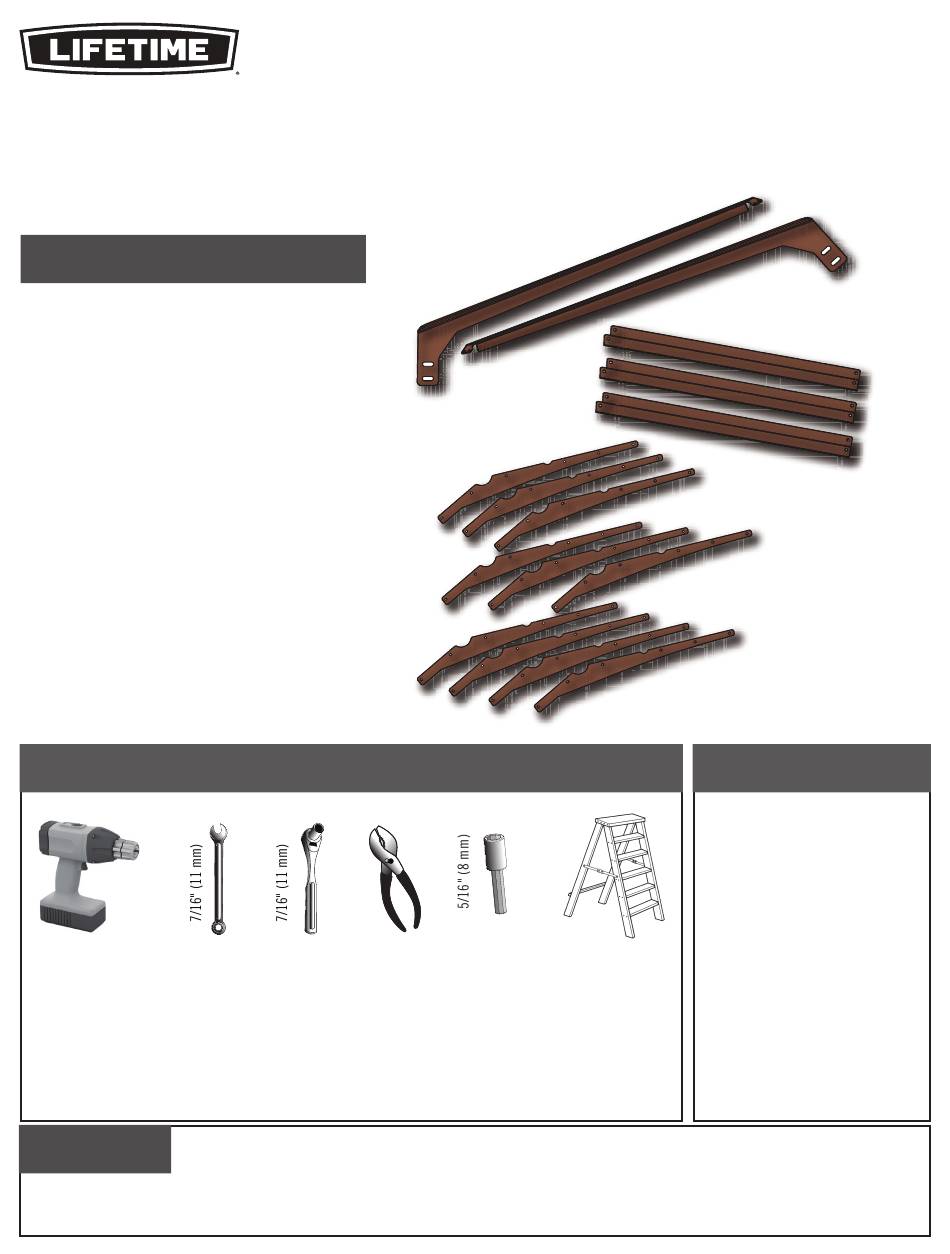

Lifetime 60125 Assembly Instructions Manual

Snow load kit
Hide thumbs Also See for 60125:

Advertisement

Quick Links

Download this manual
SNOW LOAD
KIT
MODEL #60091
MODEL 60125
BEFORE ASSEMBLY:
• Assemble on a level surface
• At least 3 people recommended for setup
TOOLS REQUIRED
(x1)
QUESTIONS?
CONTACT LIFETIME CUSTOMER SERVICE:
Call: 1-800-225-3865
(x1)
(x1)
Live Chat: www.lifetime.com/customerservice
(click on "LIVE CHAT" tab)
For Customer Service in mainland Europe:
E-mail: csinternationa@lifetime.com
ASSEMBLY INSTRUCTIONS
Pour le français, voir la page 2. Para el español, ver la página 3.
(x1)
(x1)
TABLE OF CONTENTS
Icon Legend.....................................................4
Warnings & Notices........................................5
Truss Support Installation..............................6
Entry Gable Support Installation..................11
Cleaning & Care...........................................15
Registration................................................16
Warranty.....................................................17
(x1)
MODEL# AND PRODUCT ID
(you will need both when contacting us)
Model Number: 60125
Product ID:
