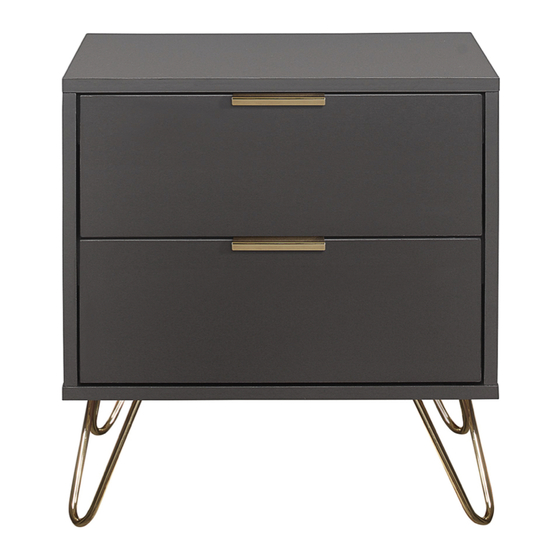

ARLO 2 Drawer Bedside Table
Important before assembly:
Read these instructions carefully before assembling or using the product.
Please check the contents of the boxes before attempting to assemble this product. The instructions will
have a checklist of parts and fittings.
It would be sensible to lay a rug or a carpet on the floor where you intend to assemble the product, to avoid
scratches and damaging the product or the floor.
Assemble the product as close to its intended final location/room as possible.
Do NOT use any power tools as this may damage the frame.
Health & Safety:
This product or some parts of this product will be heavy. Please use an assistant when lifting.
Please keep small parts out of reach of children.
Always use on a level, even surface.
DO NOT jump on the product or any of its parts.
DO NOT use this product if any parts are missing, damaged or worn.
DO NOT use this product unless all fixings are secured.
Please keep these instructions for future reference.
Assembly Instructions
Title of Product
.
.
www.happybeds.co.uk
Advertisement
Related Manuals for Happybeds ARLO 2 Drawer Bedside Table
Summary of Contents for Happybeds ARLO 2 Drawer Bedside Table
- Page 1 Assembly Instructions Title of Product ARLO 2 Drawer Bedside Table Important before assembly: Read these instructions carefully before assembling or using the product. Please check the contents of the boxes before attempting to assemble this product. The instructions will have a checklist of parts and fittings.
- Page 2 Never drag or push the pieces across a hard or stone floor as this will cause damage to the joints. Use a carpet or a rug for extra care. If you have problems assembling or have damaged or missing pieces, please contact us by visiting: https://www.happybeds.co.uk/customer-service...
-
Page 3: Health And Safety
Vendor: S000350 ASSEMBLY INSTRUCTIONS ARLO 2 DRAWER BEDSIDE IMPORTANT : READ THESE INSTRUCTIONS CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE OR USE YOUR ARLO 2 DRAWER BEDSIDE. PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. ASSEMBLY: Assembly should be carried out with this item laying flat, not standing upright. Assemble on a soft, clean surface to prevent damages. - Page 4 Vendor: S000350 Parts List Hardware List ( BOX 1 ) Part Descripion Part Description Top panel Cam lock Bottom panel Minifix screw Side panel ( Left ) Plastic cap Side panel ( Right ) M8 x 30mm Wood Dowel Back panel M6 x 50mm CSK Cap Wood screw Drawer front Allen key M4...
- Page 5 Vendor: S000350 Step 1: Prepare these parts for assembly using hardware parts A1, A2, B, F and J1. DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 2: Attach side panel (3) and (4) to top panel (1) using hardware A1 and A2 with a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim.
- Page 6 Vendor: S000350 Step 4: Attach back panel (5) to entire body using hardware H with a hammer (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. H x 12 Step 5: Attach hardware K to bottom panel (2) using hardware F with a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim.
-
Page 7: Additional Information
Vendor: S000350 Step 7: Attach the Drawer Sides (7) to the drawer front (6) and drawer back (8) using hardware part G. Insert the Drawer bottom (9) using hardware part H. Then attach the hardware parts J2 using hardware part F. Repeat this process for the other drawer. DO NOT use any power tools as this may damage the frame and will invalidate any claim. -
Page 8: General Care And Maintenance
If this is not adhered to, it could result in failure to the product that will invalidate the warranty. For more information on cleaning and product care visit: https://www.happybeds.co.uk/help-and-advice Notes We’ve tried to make this product as easy to assemble as possible. In the unlikely event that...
