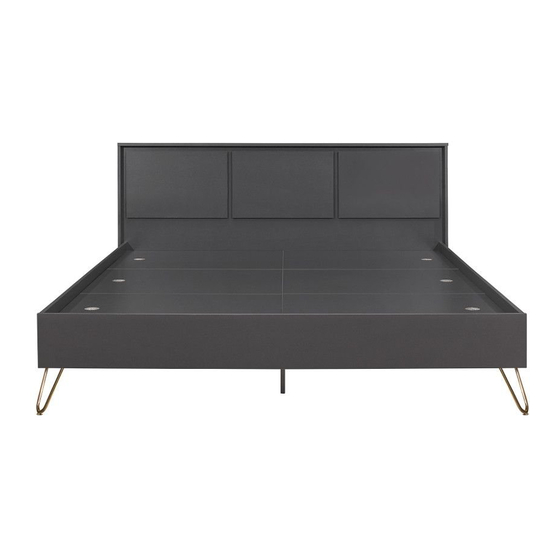

Assembly Instructions Title of Product ARLO Wooden Bed Important before assembly: Read these instructions carefully before assembling or using the product. Please check the contents of the boxes before attempting to assemble this product. The instructions will have a checklist of parts and fittings.
Page 2
Never drag or push the pieces across a hard or stone floor as this will cause damage to the joints. Use a carpet or a rug for extra care. If you have problems assembling or have damaged or missing pieces, please contact us by visiting: https://www.happybeds.co.uk/customer-service...
Page 3
Vendor: S000350 Parts List Hardware List ( BOX 1 ) Part Descripion Part Description Headboard Panel Cam lock Headboard Top Minifix screw Headboard Side (L) Plastic cap Headboard Side (R) M8 x 30mm Wood Dowel Footboard Panel Allen key M4 Side rail (L) M3.5 x 16mm C.B Screw Side rail (R)
Page 4
Vendor: S000350 Step 1: Prepare these parts for assembly using hardware parts A1, A2, B, C and G. DO NOT use any power tools as this may damage the frame and will invalidate any claim. Page of 6...
Page 5
Vendor: S000350 Step 2: Attach middle panel (9) and (10) to center panel (8) using hardware A1 and A2 with a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. A3 x 8 Step 3: Attach side rail (6) and (7) to middle panel (9) and (10) using hardware A1 and A2 with a screwdriver (not provided).
Page 6
Vendor: S000350 Step 5: Assemble hardware H to metal leg I to prevent bed slip over. Assemble metal leg I to footboard panel (5) and side rail (6) & (7) using hardware D with a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. D x 16 H x 2 I x 2...
Vendor: S000350 Step 7: Attach headboard panel (1) to side rail (6), (7) and center panel (8) using hardware C, E and F. DO NOT use any power tools as this may damage the frame and will invalidate any claim. E x 6 F x 6 Step 8: Assemble bed board panel (11) between side rail (6), (7) and center panel (8).
floor as this will cause damage to the joints and could result in failure to the product that will invalidate the warranty. For more information on cleaning and product care visit: https://www.happybeds.co.uk/help-and-advice Notes We’ve tried to make this product as easy to assemble as possible. In the unlikely event that...
