  • Page 1 Quick reference guide G 1111 / G 1114 Vacuum meter | barometer...

  • Page 2: Table Of Contents

    Table of contents Table of contents About this documentation ............4 Purpose of the document ..............4 Legal notices .................. 4 Further information ................. 4 Safety ..................5 Explanation of safety symbols ............5 Foreseeable misuse ............... 5 Safety instructions ................6 Intended use ...................
  • Page 3 Table of contents Error and system messages ..........17 Technical data ............... 18 Service ................... 22 Manufacturer ................22 B-H88.0.1X.DK2-1.1 3 / 22...

  • Page 4: About This Documentation

    1 | About this documentation G 1111 / G 1114 About this documentation Purpose of the document – This document is intended as a quick reference option. – It does not replace the operating manual. – For this reason, read the operating manual before operating the product for the first time.

  • Page 5: Safety

    G 1111 / G 1114 Safety | 2 Safety Explanation of safety symbols DANGER This symbol warns of imminent danger, which can result in death, severe bodily injury, or severe property damage in case of non-observance. CAUTION This symbol warns of potential dangers or harmful situations, which can cause damage to the device or to the environment in case of non-observance.

  • Page 6: Safety Instructions

    2 | Safety G 1111 / G 1114 Safety instructions NOTE This product does not belong in children's hands! Intended use The device measures the absolute pressure in the air, clean water or in non- corrosive/non-ionising gases. A direct measurement of the environmental pressure can take place or the measurement pressure is taken with a suitable hose connected to the port.

  • Page 7: The Product At A Glance

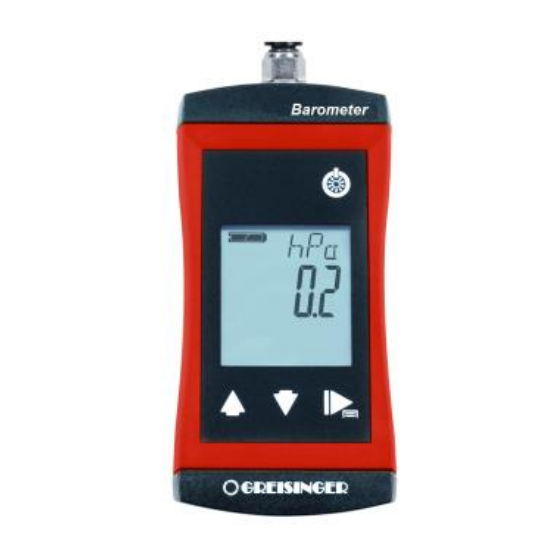

    G 1111 / G 1114 The product at a glance | 3 The product at a glance The G 1100 barometer series Top view LCD Display Front view Connection variants Display elements Display Battery indicator Evaluation of the battery status Unit display Display of the units or Min/Max/Hold information text...

  • Page 8: Operating Elements

    3 | The product at a glance G 1111 / G 1114 Operating elements On / Off button Press briefly Switch on the product Activate / deactivate lighting Long press Switch off the product Reject changes in a menu Up / Down button Press briefly Display of the min/max value Change value of the selected parameter...

  • Page 9: Connections

    G 1111 / G 1114 The product at a glance | 3 Function key Press briefly Freeze measurement (Hold) Return to measurement display Call up next parameter Start menu configuration, (ONF appears in the Long press, 2s display Close menu, changes are saved Long press, 4s Depending on the selected special function: Activa- tion of the Tare function NVLL or rapid measurement...

  • Page 10: Operation

    4 | Operation G 1111 / G 1114 Operation Opening the configuration menu Press the Function key for 2 seconds to open the Configuration menu. (ONF appears in the display. Release the Function key. Parameter Values Meaning Display unit UN,T mBaR (G 1114 ) mmKG...
  • Page 11 G 1111 / G 1114 Operation | 4 Measuring rate RATE Selection of the measurement speed Slow FAST Fast Nautical norm correction SEA.L Inactive, display measured air pressure directly Active, display air pressure compensated to sea level ALT, -500 .. 9000 Height above sea level in m for correction Shut-off time POFF...

  • Page 12: Open The Adjustment Menu

    4 | Operation G 1111 / G 1114 Backlight L,TE Backlight deactivated 0:15 0:30 1:00 4:00 Automatic shut-off of the backlight after a selected time in minutes and seconds, during which no buttons have been pressed No automatic shut off of the backlight Factory settings IN,T Use current configuration...

  • Page 13: Measurement Basics

    G 1111 / G 1114 Measurement Basics | 5 Measurement Basics Vacuum measurements The device is especially suitable to measure rough vacuum via the pressure port very fast. But if the complete device is evacuated the following has to be considered: CAUTION Damage possible by fast complete evacuation! Due to the water tight construction a complete evacuation of the device may degrade...

  • Page 14: Nvll Tare Function

    5 | Measurement Basics G 1111 / G 1114 CAUTION Air pressure at port variant UT! With higher pressures greater than 1 bar, the hoses must be secured to prevent unintended loosening. Suitable GDZ hose clamps are used for this purpose. –...

  • Page 15: Avr 0:02 / Avr 0:05 / Avr 0: 10

    G 1111 / G 1114 Measurement Basics | 5 The display can be zeroed by pressing the Function key for 4 s. If the tare function is activated, NVLL blinks in the lower display. The tare function can be reset by pressing the Function key again for 4 s.

  • Page 16: Operation And Maintenance

    6 | Operation and maintenance G 1111 / G 1114 Operation and maintenance Operating and maintenance notices NOTE Pressure connections must be protected from soiling. Battery 6.2.1 Battery indicator For additional information, refer to the operating manual! 6.2.2 Changing battery Only use new, high-quality and suitable alkaline batteries! For additional information, refer to the operating manual! 16 / 22...

  • Page 17: Error And System Messages

    G 1111 / G 1114 Error and system messages | 7 Error and system messages Display Meaning Possible causes Remedy ---- Calculation not Measurement data Waiting for data collection possible acquisition is run- ning No display, Battery depleted Battery depleted Replace battery unclear System error...

  • Page 18: Technical Data

    8 | Technical data G 1111 / G 1114 Technical data G 1111 Measuring range 0.0 .. 1700.0 hPa (mbar) abs. 0.00 .. 25.00 PSI abs. 0.0 .. 1300 mmHg (Torr) abs. Accuracy Typ.: ± 2 hPa (at T: 5 .. 30 °C) Max.: ±...
  • Page 19 G 1111 / G 1114 Technical data | 8 Operating conditions -20 to 50 °C; 0 to 95 % r.h. (short-term condensa- tion possible) Storage temperature -20 to 70 °C Current 2*AA battery (included in the scope of delivery) supply Current require- approx.
  • Page 20 8 | Technical data G 1111 / G 1114 G 1114 Measuring range 0 .. 14000 hPa (mbar) abs. 0.00 .. 199.99 PSI abs. 0 .. 10500 mmHg (Torr) abs. Accuracy Typ.: ± 0.02 % FSS +/-0.1 % of value (@ 25 °C) Max.: ±...
  • Page 21 G 1111 / G 1114 Technical data | 8 Storage temperature -20 to 70 °C Current 2*AA battery (included in the scope of delivery) supply Current require- approx. 0.6 mA (slow measurement SLO) ment/ Operating time approx. 5000 h Battery life Battery indicator 4-stage battery status indicator, Charge indicator for low charge level: "BAT LO"...

  • Page 22: Service

    Service Manufacturer If you have any questions, please do not hesitate to contact us: Contact GHM Messtechnik GmbH GHM GROUP - Greisinger Hans-Sachs-Str. 26 93128 Regenstauf | GERMANY Email: info@greisinger.de | www.greisinger.de WEEE reg. no. DE 93889386 22 / 22...
