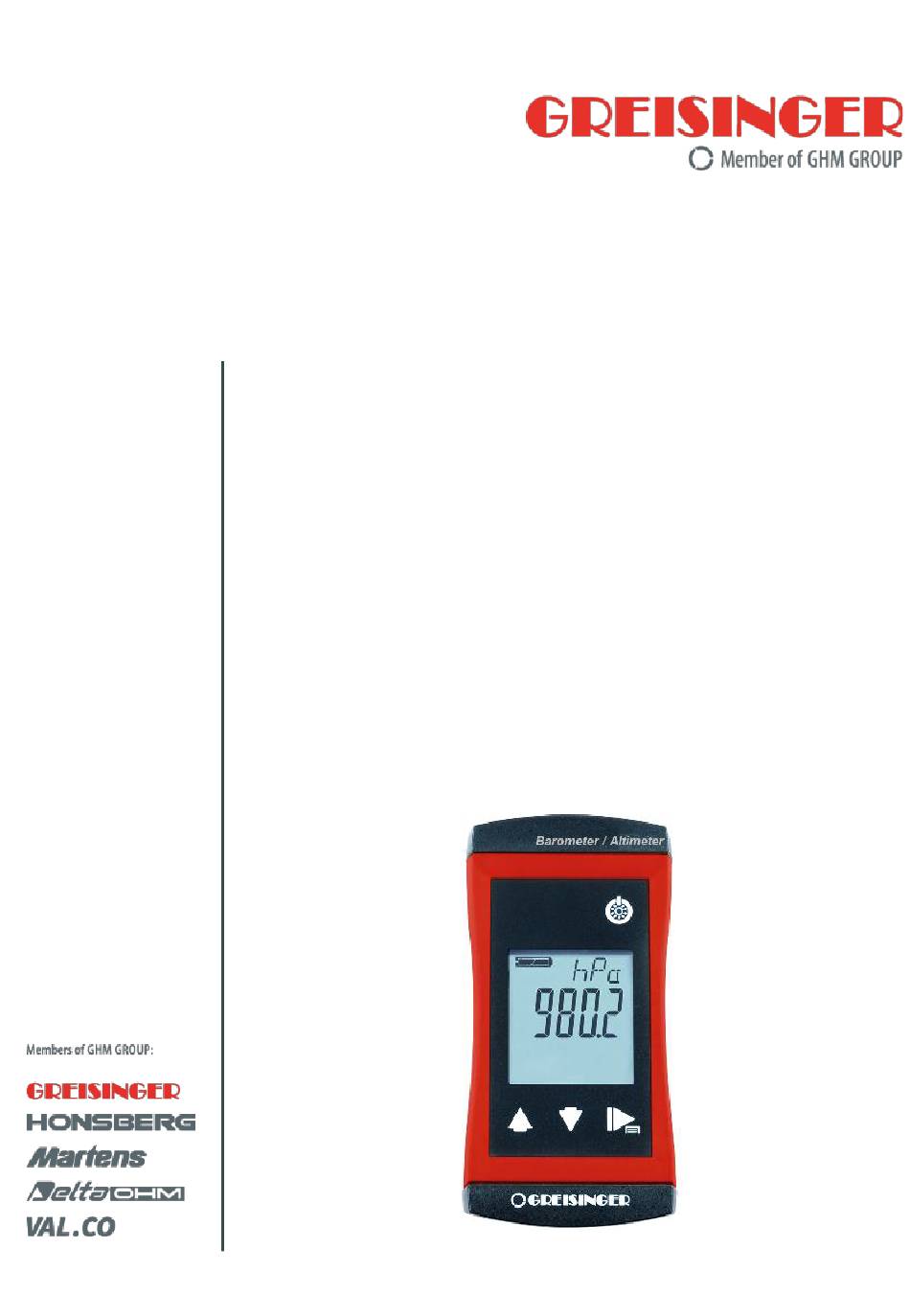

- Page 1 Quick reference guide G 1110 barometer | altimeter...
-
Page 2: Table Of Contents
Table of contents G 1110 Table of contents About this documentation ............3 Purpose of the document ..............3 Legal notices .................. 3 Further information ................. 3 Safety ..................4 Explanation of safety symbols ............4 Foreseeable misuse ............... 4 Safety instructions ................ -
Page 3: About This Documentation
G 1110 Disposal ................. 16 Error and system messages ..........17 Technical data ............... 18 Service ................... 20 10.1 Manufacturer ................20 About this documentation Purpose of the document Read this document carefully and familiarise yourself with the operation of the product before you use it. -
Page 4: Safety
2 | Safety G 1110 Safety Explanation of safety symbols DANGER This symbol warns of imminent danger, which can result in death, severe bodily injury, or severe property damage in case of non-observance. CAUTION This symbol warns of potential dangers or harmful situations, which can cause damage to the device or to the environment in case of non-observance. -
Page 5: Safety Instructions
G 1110 Safety | 2 Safety instructions NOTE This product does not belong in children's hands! Intended use The device measures the absolute pressure in the air. The ambient pressure is measured directly via the integrated sensor. Pressure equali- sation between the unit and the environment takes place via a water-impermeable membrane on the front side. -
Page 6: The Product At A Glance

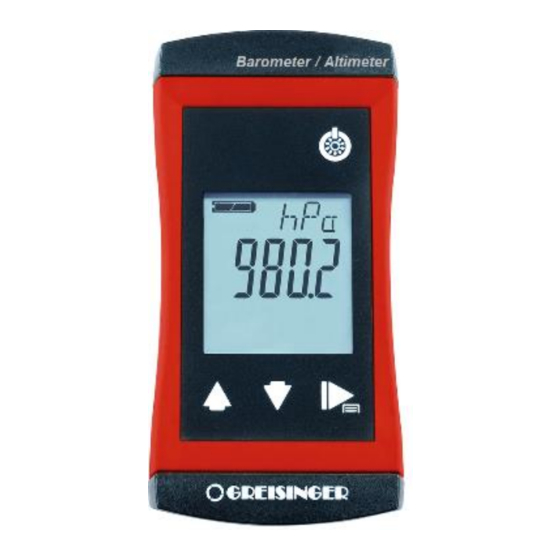

3 | The product at a glance G 1110 The product at a glance Top view with pressure equalisation opening LCD Display Front view Display elements Display Battery indicator Evaluation of the battery status Unit display Display of the units or Min/Max/Hold information text Main display Measurement of the current pressure or value for... -
Page 7: Operating Elements
G 1110 The product at a glance | 3 Operating elements On / Off button Press briefly Switch on the device Activate / deactivate lighting Long press Switch off the device Reject changes in a menu Up / Down button Display of the min/max value Press briefly Change value of the selected parameter... -
Page 8: Operation
4 | Operation G 1110 Operation Opening the configuration menu Press the Function key for 2 seconds to open the Configuration menu. (ONF appears in the display. Release the Function key. Parameter Values Meaning UN,T Display unit Barometer in [hPa] mBaR Barometer in [mbar] Barometer in [psi]... - Page 9 G 1110 Operation | 4 ALT, High above sea level -500 .. 9000 Height above sea level in m for correction At altimeter: default value for altitude input TEND Trend display Bar display and tendency value display deactivated I_S / 60_S Time base for bar display 1 second (0.2 hPa / bar level corresponds to ~1.7 m / 5 ft at sea level) or 60 seconds (12 hPa / bar level corresponds to ~100 m...
- Page 10 4 | Operation G 1110 POFF Shut-off time No automatic shut-off 0:15, 0:30, 1:00, Automatic shut-off after a selected time in hours:minutes, during which no buttons have been 4:00, 12:00 pressed L,TE Backlight Backlight deactivated 0:15, 0:30, 1:00, Automatic shut-off of the backlight after a selected time in minutes:seconds, during which no buttons 2:00, 4:00 have been pressed...
-
Page 11: Open The Adjustment Menu
G 1110 Operation | 4 Open the adjustment menu The sensor adjustment can be adjusted with the zero point correction and the gradient correction. If an adjustment is made, you change the pre-adjusted factory settings. This is signalled with the display text PR.OF or PR.SL when switching on. Switch the device off. -
Page 12: Measurement Basics
5 | Measurement Basics G 1110 Measurement Basics General information about absolute pressure measurement The device measures absolute pressure. However, this should not be confused with the "sea level air pressure" indicated by weather stations. The altitude-based air pressure decrease is calculated for these pressure specifications. The device is capable of correcting this air pressure altitude correction. -
Page 13: Use Of The Trend Indicator
G 1110 Measurement Basics | 5 NOTE The tare function is independent of the zero point correction accessible via the adjust- ment menu. Use of the trend indicator NOTE For the trend display, it is necessary that the device has collected a sufficiently large number of measured values. -
Page 14: Hiking, Cycling, Flying, Motor Sports: Use As A Variometer
5 | Measurement Basics G 1110 5.4.2 Hiking, cycling, flying, motor sports: use as a variometer A variometer or inclinometer indicates the change in altitude per unit of time, i.e. the rate of ascent or descent. Common units are [ft/min] or [m/s] for flight and motor sports, or [m/h] for example in hiking/running. -
Page 15: Operation And Maintenance
G 1110 Operation and maintenance | 6 Operation and maintenance Battery 6.1.1 Battery indicator If the empty frame in the battery display blinks, the batteries are depleted and must be replaced. However, the device will still operate for a certain length of time. If the BAT display text appears in the main display, the battery voltage is no longer adequate for operation of the product. -
Page 16: Disposal
7 | Disposal G 1110 NOTE Read the following handling instructions before replacing batteries and follow them step by step. If disregarded, the device could be damaged or the protection from moisture could be diminished. Unscrews the Phillips screws (A)and remove the cover. Carefully replace the two Mignon AA batteries (B). -
Page 17: Error And System Messages
G 1110 Error and system messages | 8 Error and system messages Display Meaning Possible causes Remedy ---- Calculation not Measurement data Waiting for data collection possible acquisition is run- ning No display, Battery depleted Battery depleted Replace battery unclear char- System error Error in the product Send in for repair... -
Page 18: Technical Data
9 | Technical data G 1110 Technical data Measuring range Barometer 300,0 .. 1100,0 hPa (mbar) abs. 4,350 .. 15,950 PSI abs. 225,0 .. 825,0 mmHg (Torr) abs. Altimeter -500,0 .. 9000,0 m -1640 .. 19999 ft. Temperature -20,0 .. 50,0 °C -4,0 .. - Page 19 G 1110 Technical data | 9 Housing Break-proof ABS housing Protection rating IP67 Dimensions 108 * 54 * 28 mm Weight 140 g, incl. batteries Nominal temperature 25 °C Operating conditions -20 to 50 °C; 0 to 95 %RH (short-term condensation possible) Storage temperature -20 to +70 °C Current supply...
-
Page 20: Service
Service 10.1 Manufacturer If you have any questions, please do not hesitate to contact us: GHM Messtechnik GmbH GHM GROUP - Greisinger Hans-Sachs-Str. 26 93128 Regenstauf | GERMANY Email: info@greisinger.de | www.greisinger.de WEEE reg. no. DE 93889386 20 / 20...
