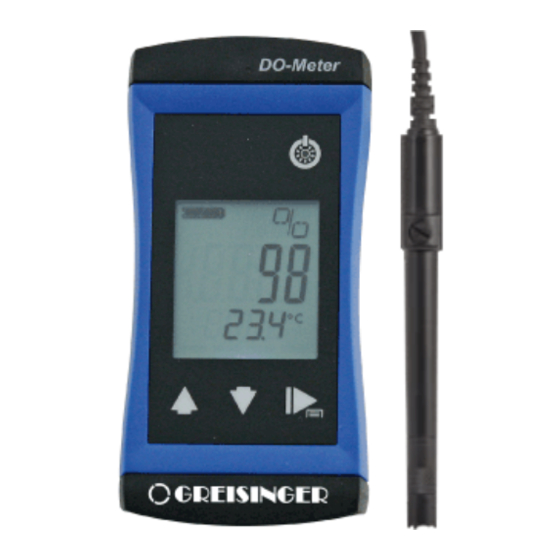

- Page 1 Compact manual G 1610 Dissolved oxygen measuring device...
-
Page 2: Table Of Contents
Table of contents G 1610 Table of contents About this documentation ............4 Foreword ..................4 Legal notices .................. 4 Further information ................. 4 Safety ..................5 Explanation of safety symbols ............5 Foreseeable misuse ............... 6 Safety instructions ................6 Intended use ................... - Page 3 G 1610 Table of contents Operation and maintenance ..........19 Operating and maintenance notices..........19 Automatic calibration in the air ............19 Battery ..................20 6.3.1 Battery indicator................20 6.3.2 Changing battery ................20 Error and system messages ..........22 Technical data ...............
-
Page 4: About This Documentation
1 | About this documentation G 1610 About this documentation Foreword Read this document carefully and familiarise yourself with the operation of the device before you use it. Keep this document ready to hand and in the immediate vicinity of the device so that it is available to the personnel/user for reference at all times in case of doubt. -
Page 5: Safety
G 1610 Safety | 2 Safety Explanation of safety symbols DANGER This symbol warns of imminent danger, which can result in death, severe bodily injury, or severe property damage in case of non-observance. DANGER This symbol indicates danger for living tissue as well as a variety of materials, which can be damaged or destroyed when coming into contact with this chemical. -
Page 6: Foreseeable Misuse
2 | Safety G 1610 Foreseeable misuse The fault-free function and operational safety of the device can only be guaranteed if applicable safety precautions and the device-specific safety instructions for this docu- ment are observed. If these notices are disregarded, personal injury or death, as well as property damage can occur. -
Page 7: Intended Use
G 1610 Safety | 2 CAUTION For a reliable determination of the measured value, it is important that the device with the oxygen measuring cell are in good condition (no deposits on the electrode, ...). In addition, it is important to carry out a correct calibration on a regular basis. Please also refer to the corresponding chapters under "Measurement Basics"... -
Page 8: The Device At A Glance
3 | The device at a glance G 1610 The device at a glance LCD Display Front view Display elements Display Battery indicator Evaluation of the battery status Unit display Display of units or type of mode, min/max/hold Main display Measurement of the current O value or value for min/max/hold... -
Page 9: Operating Elements
G 1610 The device at a glance | 3 Operating elements On / Off button Press briefly Switch on the device Activate / deactivate lighting Long press Switch off the device Reject changes in a menu Up / Down button Press briefly Display of the min/max value Change value of the selected parameter... -
Page 10: Operation
4 | Operation G 1610 Operation Opening the configuration menu Press the Function key for 2 seconds to open the Configuration menu. (ONF appears in the display. Release the Function key. Parameter Values Meaning Measuring unit SAT % Oxygen saturation in percent (ONC mg/l Oxygen concentration in mg/l (ONC ppm... - Page 11 G 1610 Operation | 4 L,TE Backlight Backlight deactivated 15, 30, 60, 120, 240 Automatic shut-off of the backlight after a selected time in seconds, during which no buttons have been pressed No automatic shut off of the backlight UN,T Temperature display unit °( Temperature display in °C...
-
Page 12: Adjustment Of The Temperature Measuring Input
4 | Operation G 1610 Adjustment of the temperature measuring input The temperature input can be adjusted with the zero point correction and the gradient correction. If an adjustment is made, you change the pre-adjusted factory settings. This is signalled with the display text T.OF or T.SL when switching on. Switch the device off. -
Page 13: Measurement Basics
G 1610 Measurement Basics | 5 Measurement Basics The oxygen sensor 5.1.1 Explanation The oxygen sensor is an active sensor. It consists of a platinum cathode, a lead anode and potassium hydroxide (KOH) as an electrolyte. If oxygen is present, it is reduced on the platinum cathode and the sensor delivers a signal. -
Page 14: Design
5 | Measurement Basics G 1610 NOTE Protective gloves must be worn when commissioning, filling and servicing the sensor. 5.1.2 Design Filling hole: If the electrode is used at high temperatures or if it has been stored without its protective flask for a longer period of time, some electrolyte will be lost due to evaporation. -
Page 15: Operating Position
G 1610 Measurement Basics | 5 NOTE The sensor evaluation is updated by the measuring device after a successfully per- formed calibration of the oxygen sensor. The nominal service life can be reduced significantly due to use. Influential factors include: - Storage / operating temperature - Contamination of the measured water - Mechanical stress of the sensor membrane... -
Page 16: Instructions For Oxygen Measurement
5 | Measurement Basics G 1610 Before screwing the membrane head on sensor body again they should be washed off, to avoid them getting in between platinum cathode and membrane. A fast occurrence shortly after first filling or an unusual high amount of them (e.g. within some days) may be a sign of air in the sensor –... -
Page 17: Environmental Pressure, Water Depth And Air Pressure
G 1610 Measurement Basics | 5 5.2.2 Environmental pressure, water depth and air pressure The environmental pressure, water depth and air pressure play an important role at the place of measurement for the following points: - Calculation of oxygen saturation in %. Clean water can achieve 100 % saturation in air. - Page 18 5 | Measurement Basics G 1610 • Filling pipette Required material: • Electrolyte KOH • Flat blade screw driver • Paper towel • Polishing foil (pink) • Suitable gloves *), Safety goggles • Wash basin • eventually spare membrane head GWOK 02 Procedure: First the membrane head is unscrewed and the old electrolyte is removed.
-
Page 19: Operation And Maintenance
G 1610 Operation and maintenance | 6 Operation and maintenance Operating and maintenance notices NOTE If the device is stored at a temperature above 50 °C, or is not used for an extended period of time, the batteries must be removed. Leaks from the batteries are avoided as a result. -
Page 20: Battery
6 | Operation and maintenance G 1610 Confirm the error message pressing the Function key. The device restarts and the standard value for the gradient is restored. Battery 6.3.1 Battery indicator If the empty frame in the battery display blinks, the batteries are depleted and must be replaced. - Page 21 G 1610 Operation and maintenance | 6 NOTE Read the following handling instructions before replacing batteries and follow them step by step. If disregarded, the device could be damaged or the protection from moisture could be diminished. Unscrews the Phillips screws (A)and remove the cover. Carefully replace the two Mignon AA batteries (B).
-
Page 22: Error And System Messages
7 | Error and system messages G 1610 Error and system messages Display Meaning Possible causes Remedy Sensor cable Cable breakage Send in for repair ---- defect Sensor or device Sensor or device Send in for repair defect defect Measuring range Measurement outside Stay within allowable exceeded/undercut... - Page 23 G 1610 Error and system messages | 7 (AL ERR.4 Incorrect calibra- Temperature too low Range of 5..40 °C tion temperature or too high (AL ERR.5 Time exceeded Unstable electrode Use calibration container during automatic signal calibration Contaminated elec- Maintain the electrode trode Temperature not Restart calibration...
-
Page 24: Technical Data
8 | Technical data G 1610 Technical data Sensor Permanently connected oxygen sensor Measuring range 0.0 .. 20.0 mg/l concentration 0.0 .. 20.0 ppm 0 .. 200 % saturation 0.0 .. 50.0 °C (32.0 .. 122.0 °F) Temperature Accuracy (at nominal temperature) ±... - Page 25 G 1610 Technical data | 8 Electrode 0 .. 40 °C Storage temperature 0 .. 40 °C Current supply 2 * AA batteries (mignon) Current requirement approx. 0.8 mA, approx. 2.7 mA with lighting Service life > 3000 hours with alkaline batteries battery life (without backlighting) Battery indicator...
-
Page 26: Disposal
