  • Page 4 1 | About this documentation G 1114 About this documentation Foreword Read this document carefully and familiarise yourself with the operation of the product before you use it. Keep this document ready to hand and in the immediate vicinity of the product so that it is available to the personnel/user for reference at all times in case of doubt.
  • Page 5 G 1114 About this documentation | 1 All mandatory prerequisites are then listed for each step. Tasks to be carried out by the personnel / user are represented as numbered instruc- tions. Adhere to the sequence of the specified instructions. Shows an illustrative instruction or a configuration of the product.
  • Page 6 2 | Safety G 1114 Safety Explanation of safety symbols DANGER This symbol warns of imminent danger, which can result in death, severe bodily injury, or severe property damage in case of non-observance. CAUTION This symbol warns of potential dangers or harmful situations, which can cause dam- age to the device or to the environment in case of non-observance.
  • Page 7 G 1114 Safety | 2 Intended use The G 1114 measures the absolute pressure in the air, clean water or in non- corrosive/non-ionising gases. A direct measurement of the environmental pressure can take place or the measurement pressure is taken with a suitable hose connected to the port.
  • Page 8 3 | Description G 1114 Description Scope of delivery Please check to ensure the completeness of the product after opening the package. You should find the following components: Quick reference guide Handheld measuring device, ready for operation, including batteries Test protocol NOTE Individual components may vary depending on which set you have selected.

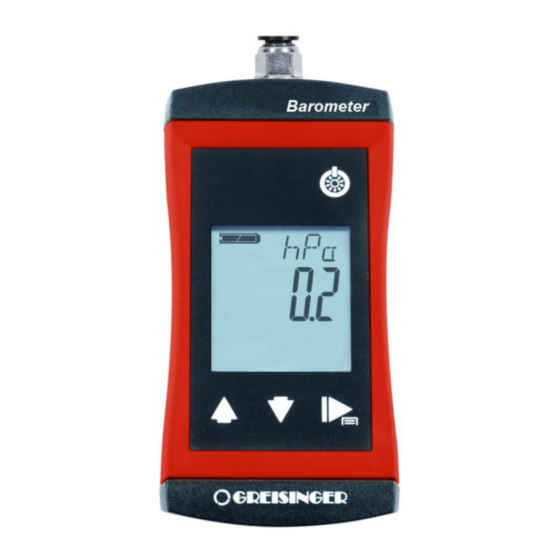

  • Page 9 G 1114 The product at a glance | 4 The product at a glance The G 1114 Top view LCD Display Front view Connection variants Display elements Display Battery indicator Evaluation of the battery status Unit display Display of the units or Min/Max/Hold information text Main display Measurement of the current pressure or value for...
  • Page 10 4 | The product at a glance G 1114 Up / Down button Press briefly Display of the min/max value Change value of the selected parameter Long press Reset the min/max value of the current measure- ment Both simultaneously Rotate display, overhead display Function key Press briefly Freeze measurement (Hold)
  • Page 11 G 1114 Operation | 5 Operation Commissioning The product is switched on with the . It may be necessary to configure the product after switching on. See Sufficiently full batteries are inserted in the product. Press the Automatic shut- Automatic shut-off activated. The product is switched off if no buttons have been pressed after the adjusted time Offset correction Calibration of the pressure sensor by the customer...
  • Page 12 5 | Operation G 1114 Call up menu Next parameter Change value Save changes Discard changes Press: Single step Product is Hold: Fast switched off change menu is closed after the last parameter. NOTE If the product is switched off without saving the configuration, the last save value is re- produced on the next start-up of the product.
  • Page 13 G 1114 Operation | 5 Activatable special functions Tare function available Rapid measurement with mean value over 2 s / 5 s AVR : / AVR / 10 s activatable / AVR : Measuring rate Selection of the measurement speed Slow Fast Nautical norm correction...
  • Page 14 5 | Operation G 1114 In order to change sensor calibration, you must first open the menu. The menu is opened as shown in the illustration. The product is switched off. Call up menu Hold Release Release is closed after the last parameter. Zero point For an optimal zero point calibration, a vacuum pump and a precise reference de- vice are needed.
  • Page 15 G 1114 Operation | 5 Parameter Values Meaning Zero point correction No offset Offset active Gradient compensation specification No slope Slope active .. . Sensor zero point correction offset A zero point shift can be made for the measurement. Displayed value = measured value offset Standard setting: 0.0, i.e.
  • Page 16 6 | Measurement Basics G 1114 Measurement Basics Vacuum measurements The device is especially suitable to measure rough vacuum via the pressure port very fast. But if the complete device is evacuated the following has to be considered: CAUTION Damage possible by fast complete evacuation! Due to the water tight construction a complete evacuation of the device may degrade water protection.
  • Page 17 G 1114 Measurement Basics | 6 If the Tare function is activated when called up, this special function V can be reset by pressing and holding the for 4 s. In order to reactivate the Tare, the special function must be switched in the configuration menu. Pressure connections NOTE Suitable hoses must be used for vacuum measurements, silicon is suitable as a hose...
  • Page 18 6 | Measurement Basics G 1114 CAUTION Air pressure! With higher pressures greater than 1 bar, the hoses must be secured to prevent unin- tended loosening. Suitable GDZ hose clamps are used for this purpose. 6x1 mm PVC GDZ-01. Up to 5 bar rel., vacuum-suitable! 6x1 mm PE GDZ-02.
  • Page 19 G 1114 Measurement Basics | 6 The secure screw connection is only suitable for plastic hoses with 6 mm outer diame- ter (Ø 4 mm inside). The hose end must be clean and undamaged for connection. The union nut must be loosened before connection. Then the hose is pushed onto the hose nipple up to the mechanical stop.
  • Page 20 7 | Operation and maintenance G 1114 Operation and maintenance Operating and maintenance notices NOTE Pressure connections must be protected from soiling. Battery If the empty frame in the battery display blinks, the batteries are depleted and must be replaced. However, the device will still operate for a certain length of time. If the display text appears in the main display, the battery voltage is no longer ad- equate for operation of the product.

  • Page 21: Calibration And Adjustment Service

    G 1114 Operation and maintenance | 7 Calibration and adjustment service The certificates are categorised as ISO calibration certificates and DAkkS calibration certificates. The purpose of the calibration is to verify the precision of the measuring device by comparing it with a traceable reference. NOTE The ISO standard 9001 is applied for the iso-calibration certificates.

  • Page 22: Error And System Messages

    8 | Error and system messages G 1114 Error and system messages Display Meaning Possible causes Remedy Calculation not pos- Measurement data Waiting for data collection sible acquisition is run- ning No display, Battery depleted Battery depleted Replace battery unclear System error Error in the product Send in for repair...

  • Page 23: Disposal

    G 1114 Disposal | 9 Disposal Separation by material and recycling of device components and packaging must take place at the time of disposal. The valid regional statutory regulations and directives applicable at the time must be observed. NOTE The device must not be disposed of with household waste. Return it to us, freight pre- paid.

  • Page 24: Technical Data

    10 | Technical data G 1114 Technical data Measuring range 0 .. 14000 hPa (mbar) abs. 0.00 .. 199.99 PSI abs. 0 .. 10500 mmHg (Torr) abs. Accuracy Typ.: ± 0.02 % FSS +/-0.1 % of value (@ 25 °C) Max.: ±...
  • Page 25 G 1114 Technical data | 10 Directives and standards The devices conform to the following Directives of the Council for the harmonisation of legal regulations of the Member States: 2014/30/EU EMC Directive 2011/65/EU RoHS Applied harmonised standards: EN 61326-1:2013 Emission limits: Class B Immunity according to Table 1 Additional error: <...

  • Page 26: Spare Parts And Accessories

    11 | Spare parts and accessories G 1114 Spare parts and accessories A selection of spare parts and accessories for this product is listed below. Number Name Description 601060 GKK 1100 Case with nap foam, 340 x 275 x 83 mm 611373 ST-G1000 Protective device sleeve...

  • Page 27: Ordering Code

    G 1114 Ordering code | 12 Ordering code 2. Pressure connection 1/8 inch port, incl. connections for 6x1 mm (4 mm inside) and 8x1 mm (6 mm inside) hoses. 1/8 inch port, incl. quick-fit connector for hose outer Ø 6 mm 1/8 inch port, incl.

  • Page 28: Service

    13 | Service G 1114 Service 13.1 Manufacturer If you have any questions, please do not hesitate to contact us: GHM Messtechnik GmbH GHM GROUP - Greisinger Hans-Sachs-Str. 26 93128 Regenstauf | GERMANY Email: WEEE reg. no. DE 93889386 13.2 Repairs processing Defective products are repaired professionally and quickly in our service centre.
  • Page 29 G 1114 Service | 13 Post code: 26000 26999 | 35000 36999 40000 69999 Email: vertrieb-west@ghm-messtechnik.de Tel: +49 2191 9672-0 Fax: +49 2191 9672-40 Post code: 70000 97999 Email: vertrieb-sued@ghm-messtechnik.de Tel: +49 9402 9383-52 Fax: +49 9402 9383-33 B-H88.0.12.DB2-1.1 29 / 29...
