GHM Greisinger G 1409 Operating Manual

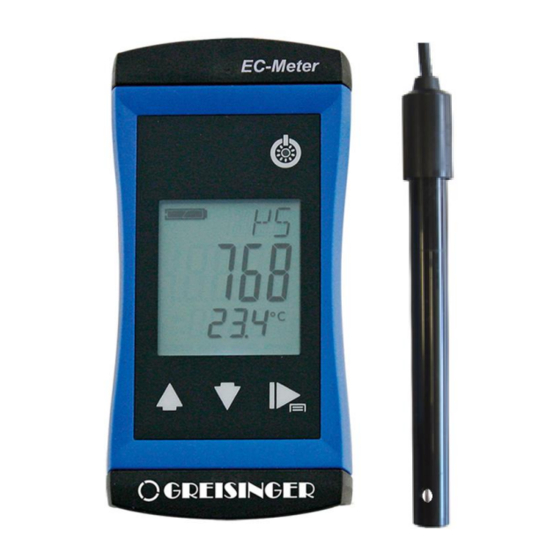

Handheld conductivity meter/ec-meter
Hide thumbs Also See for Greisinger G 1409:
Table of Contents

Advertisement

Quick Links

Operating manual
G 1409
EN
Handheld Conductivity Meter
/ EC-Meter

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Greisinger G 1409 and is the answer not in the manual?

Questions and answers

Related Manuals for GHM Greisinger G 1409

Summary of Contents for GHM Greisinger G 1409

  • Page 1 Operating manual G 1409 Handheld Conductivity Meter / EC-Meter...

  • Page 2: Table Of Contents

    Table of contents Table of contents About this documentation .......................... 4 Foreword ................................4 Purpose of the document ..........................4 Legal notices ..............................4 Correctness of content ........................... 4 Layout of this document ..........................4 Further information ............................5 Safety ................................6 Explanation of safety symbols ........................
  • Page 3 Table of contents Disposal ................................. 24 Technical data .............................. 25 Spare parts and accessories ........................27 Service ................................28 12.1 Manufacturer ..............................28 12.2 Repairs processing ............................28 B-H87.0.01.DB2-2.1 3 / 28...

  • Page 4: About This Documentation

    1 | About this documentation G 1409 About this documentation Foreword Read this document carefully and familiarise yourself with the operation of the product before you use it. Keep this document ready to hand and in the immediate vicinity of the product so that it is available to the personnel/user for reference at all times in case of doubt.

  • Page 5: Further Information

    G 1409 About this documentation | 1 Prerequisite All mandatory prerequisites are then listed for each step. Instruction Tasks to be carried out by the personnel / user are represented as numbered instruc- tions. Adhere to the sequence of the specified instructions. Representation Shows an illustrative instruction or a configuration of the product.

  • Page 6: Safety

    2 | Safety G 1409 Safety Explanation of safety symbols DANGER This symbol warns of imminent danger, which can result in death, severe bodily injury, or severe property damage in case of non-observance. CAUTION This symbol warns of potential dangers or harmful situations, which can cause dam- age to the device or to the environment in case of non-observance.

  • Page 7: Safety Instructions

    G 1409 Safety | 2 Safety instructions NOTE This product does not belong in children's hands! Intended use The product is designed for measuring the conductivity in liquids. The measuring cell is connected permanently. Qualified personnel For commissioning, operation and maintenance, the relevant personnel must have adequate knowledge of the measuring process and the significance of the measure- ments.

  • Page 8: Description

    3 | Description G 1409 Description Scope of delivery Please check to ensure the completeness of the product after opening the package. You should find the following components: – Quick reference guide – Handheld measuring device, ready for operation, including batteries –...

  • Page 9: The Product At A Glance

    G 1409 The product at a glance | 4 The product at a glance The G 1409 LCD Display Front view Display elements Display Battery indicator Evaluation of the battery status Unit display Display of units or type of mode, min/max/hold Main display Measurement of the current conductivity value or value for min/max/hold...
  • Page 10 4 | The product at a glance G 1409 Up / Down button Press briefly Display of the min/max value Change value of the selected parameter Long press Reset the min/max value of the current measure- ment Both simultaneously Rotate display, overhead display Function key Press briefly Freeze measurement (Hold)

  • Page 11: Measurement Basics

    G 1409 Measurement Basics | 5 Measurement Basics Conductivity principles Conductivity γ Conductivity describes the capability of a material to conduct electrical current. It is al- so the inverse of specific resistance. The conductance is the inverse of the measured resistance R.

  • Page 12: Total Dissolved Solids / Tds Measurement

    5 | Measurement Basics G 1409 Total dissolved solids / TDS measurement The total dissolved solids measurement - TDS measurement - determines the total dissolved solids, which also called evaporation residue, based on the conductivity and a conversion factor CtdS of the total dissolved solids. Well-suited to conduct simple concentration measurements of salt solutions.

  • Page 13: Electrodes / Measuring Cell

    G 1409 Measurement Basics | 5 Electrodes / measuring cell 5.5.1 Design There are basically two different types of measuring cells: 2-pole and 4-pole measur- ing cells. Control and/or evaluation take place in a similar manner; the 4-pole measur- ing cells can compensate well for polarisation effects and contamination to a certain degree with the more elaborate measuring processes.

  • Page 14: Operation And Maintenance

    6 | Operation and maintenance G 1409 Operation and maintenance Operating and maintenance notices NOTE The product and conductivity measuring cell must be handled with care and used in accordance with the technical data. Do not throw or strike. NOTE If the product is stored at a temperature above 50 °C, or is not used for an extended period of time, the batteries must be removed.
  • Page 15 G 1409 Operation and maintenance | 6 CAUTION Damage! If the batteries have different charge levels, leaks and thus damage to the product can occur. – Use new, high-quality batteries! – Do not use different types of batteries! – Remove depleted batteries and dispose of them at a suitable collection point! NOTE Unnecessary screwing places the water-tightness of the product, among other things, at risk and should be avoided.

  • Page 16: Calibration And Adjustment Service

    6 | Operation and maintenance G 1409 Calibration and adjustment service 6.3.1 Certificates The certificates are categorised as ISO calibration certificates and DAkkS calibration certificates. The purpose of the calibration is to verify the precision of the measuring device by comparing it with a traceable reference. NOTE The ISO standard 9001 is applied for the iso-calibration certificates.

  • Page 17: Operation

    G 1409 Operation | 7 Operation Commissioning 7.1.1 Explanation Description The product is switched on with the On/Off button. It may be necessary to configure the product after switching on. See Configuration [ 17]. Prerequisite – Sufficiently full batteries are inserted in the product. Instruction –...

  • Page 18: Configuring Parameters Of The Configuration Menu

    7 | Operation G 1409 3. By briefly pressing the Function key, you can scroll through the parameters. Select the parameter you would like to configure. 4. When you have selected the desired parameter, change the parameter to the de- sired value with the Up button and the Down button.
  • Page 19 G 1409 Operation | 7 Representation Parameter Values Meaning Input (OND Measured variable - conductivity Measured unit – EC ( ~ mS/cm) Measured variable – CF (~ 10 x EC) Measured variable - total dissolved solids Factor for TDS CTDS 0.40 ..

  • Page 20: Adjustment Of The Measuring Input

    7 | Operation G 1409 Display unit UN,T Temperature display in °C °( Temperature display in °F °F Factory settings IN,T Use current configuration Reset product to factory settings. IN,T DONE appears in the display Outcome of an action The changed value is saved and the Configuration menu is closed. STOR appears in the display.

  • Page 21: Configuring Parameters Of The Adjustment Menu

    G 1409 Operation | 7 Representation Call up menu Hold Release Outcome of an action The Configuration menu is closed after the last parameter. NOTE If the product is switched off without saving the configuration, the last save value is re- produced on the next start-up of the product.
  • Page 22 7 | Operation G 1409 Gradient correction °C: Display = (measured value – T.OF) * (1 + T.SL / 100) Gradient correction °F: Display = (measured value – 32 °F – T.OF) * (1 + T.SL / 100) + 32 °F Gradient correction γ: Display = measured value / T.SL Example calculation...

  • Page 23: Error And System Messages

    G 1409 Error and system messages | 8 Error and system messages Display Meaning Possible causes Remedy ---- Range switches or Controlling instable Wait for the transient effect measured value of the controller Measuring cell de- unstable fect clean contamination Measurement far /bubbles Contamination or air...

  • Page 24: Disposal

    Please dispose of empty batteries at the collection points intended for this purpose. NOTE Fill in the return form available from the information base online at www.ghm-group.de and sent it in with the product. 24 / 28...

  • Page 25: Technical Data

    G 1409 Technical data | 10 Technical data Measuring range Conductivity 0 .. 5000 µS/cm 0 .. 5.000 EC (corresponds to mS/cm) 0.00 .. 50.00 CF(corresponds to 10 x EC) 0 .. 2000 mg/l Temperature -5.0 .. +80.0 °C (23.0 .. +176.0 °F). Accuracy Conductivity typ.
  • Page 26 10 | Technical data G 1409 Directives and standards The devices conform to the following Directives of the Council for the harmonisation of legal regulations of the Member States: 2014/30/EU EMC Directive 2011/65/EU RoHS Applied harmonised standards: EN 61326-1:2013 Emission limits: Class B Immunity according to Table 1 Additional errors: <...

  • Page 27: Spare Parts And Accessories

    G 1409 Spare parts and accessories | 11 Spare parts and accessories A selection of spare parts and accessories for this product is listed below. Article Number Name Description 610049 Mignon battery Mignon AA spare battery 603499 GWZ-01 Flow-through vessel (for measuring cells with Ø 12 mm and Ø...

  • Page 28: Service

    GHM GROUP - Greisinger Hans-Sachs-Str.26 Service Centre 93128 Regenstauf | GERMANY Tel: +49 94029383-39 Fax: +49 94029383-33 service@greisinger.de NOTE Fill in the return form available from the information base online at www.ghm-group.de and sent it in with the product. 28 / 28 B-H87.0.01.DB2-2.1...
