Quick reference guide
EN

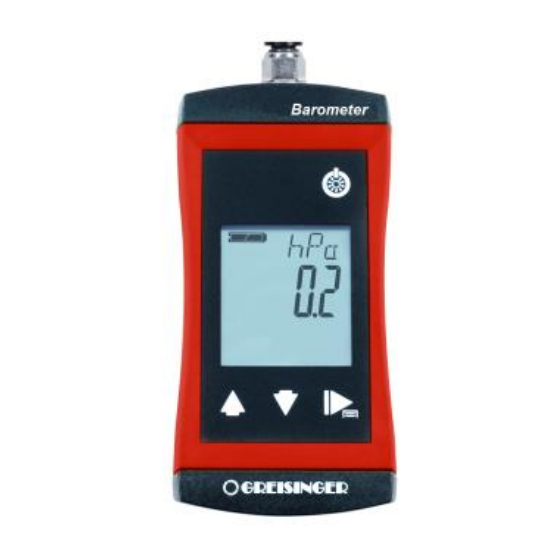

G 1107 / G 1113
Fine manometer | manometer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GREISINGER G 1000 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GHM GREISINGER G 1000 Series

Summary of Contents for GHM GREISINGER G 1000 Series

  • Page 1 Quick reference guide G 1107 / G 1113 Fine manometer | manometer...

  • Page 2: Table Of Contents

    Table of contents Table of contents About this documentation ............4 Purpose of the document ..............4 Legal notices .................. 4 Further information ................. 4 Safety ..................5 Explanation of safety symbols ............5 Foreseeable misuse ............... 5 Safety instructions ................6 Intended use ...................
  • Page 3 Table of contents 6.2.2 Changing battery ................18 Error and system messages ..........19 Technical data ............... 21 Service ................... 25 Manufacturer ................25 B-H88.0.2X.DK2-1.1 3 / 25...

  • Page 4: About This Documentation

    1 | About this documentation G 1107 / G 1113 About this documentation Purpose of the document – This document is intended as a quick reference option. – It does not replace the operating manual. – For this reason, read the operating manual before operating the product for the first time.

  • Page 5: Safety

    G 1107 / G 1113 Safety | 2 Safety Explanation of safety symbols DANGER This symbol warns of imminent danger, which can result in death, severe bodily injury, or severe property damage in case of non-observance. CAUTION This symbol warns of potential dangers or harmful situations, which can cause damage to the device or to the environment in case of non-observance.

  • Page 6: Safety Instructions

    2 | Safety G 1107 / G 1113 Safety instructions NOTE This product does not belong in children's hands! Intended use The device is designed as a manometer and measures even the smallest pressure differential pressures of up to ±200 hPa with a maximum resolution of up to 0.1 Pa in air or in non-corrosive/non-ionising gases between the two pressure connections.

  • Page 7: The Product At A Glance

    G 1107 / G 1113 The product at a glance | 3 The product at a glance The G 1100 manometer series Top view Front view LCD Display Connection variants Display elements Display Battery indicator Evaluation of the battery status Unit display Display of the units or Min/Max/Hold information text...

  • Page 8: Operating Elements

    3 | The product at a glance G 1107 / G 1113 Operating elements On / Off button Press briefly Switch on the product Activate / deactivate lighting Long press Switch off the product Reject changes in a menu Up / Down button Press briefly Display of the min/max value Change value of the selected parameter...

  • Page 9: Connections

    G 1107 / G 1113 The product at a glance | 3 Function key Press briefly Freeze measurement (Hold) Return to measurement display Call up next parameter Start menu configuration, (ONF appears in the Long press, 2s display Close menu, changes are saved Long press, 4s Depending on the selected special function: Activa- tion of the Tare function NVLL, high-resolution...

  • Page 10: Operation

    4 | Operation G 1107 / G 1113 Operation Opening the configuration menu Press the Function key for 2 seconds to open the Configuration menu. (ONF appears in the display. Release the Function key. Parameter Values Meaning Display unit UN,T (G 1107 ) mBaR (G 1113 )
  • Page 11 G 1107 / G 1113 Operation | 4 Activatable special functions NVLL Tare function available G 1107 F,NE High-resolution measurement with 0.1 Pa activata- G 1113 F,NE High-resolution measurement with 1 Pa activatable AVR 0:02 / AVR Rapid measurement with mean value over 2 s / 5 s / 10 s activatable 0:05 / AVR 0: 10 Measuring rate...
  • Page 12 4 | Operation G 1107 / G 1113 G 1107 Adjusted to the highest value, e.g. -200.0 .. +200.0 Adjusted to the lowest value, e.g. -20.00 .. +20.00 G 1113 Adjusted to the highest value, e.g. -2000 .. +2000 Adjusted to the lowest value, e.g. -200.0 .. +200.0 Shut-off time POFF No automatic shut-off...

  • Page 13: Open The Adjustment Menu

    G 1107 / G 1113 Operation | 4 IN,T Use current configuration Reset product to factory settings. IN,T DONE appears in the display Open the adjustment menu For information refer to the operating manual! B-H88.0.2X.DK2-1.1 13 / 25...

  • Page 14: Measurement Basics

    5 | Measurement Basics G 1107 / G 1113 Measurement Basics Special functions With the special functions that can be selected via the Configuration menu, the device can be optimised for special measuring tasks. After it is switched on, the device starts up in standard measuring mode, the relevant special function is started by pressing and holding the Function key for 4 s.

  • Page 15: Nvll Tare Function

    G 1107 / G 1113 Measurement Basics | 5 NVLL Tare function 5.1.1 The special function FVNC NVLL has been selected in the configuration menu. The display can be zeroed by pressing the Function key for 4 s. If the tare function is activated, NVLL blinks in the lower display.

  • Page 16: F,Ne High-Resolution Measurement With 1 Pa (G 1113)

    5 | Measurement Basics G 1107 / G 1113 By pressing and holding the Function key for 2 s., the special function can be activated. END FVNC appears in the display. F,NE High-resolution measurement with 1 Pa (G 1113) 5.1.3 High-resolution measurement for the finest adjustment work and many other applica- tions with the finest adjustment of pressure.

  • Page 17: Avr 0:02 / Avr 0:05 / Avr 0: 10

    G 1107 / G 1113 Measurement Basics | 5 AVR 0:02 / AVR 0:05 / AVR 0: 10 5.1.4 Fast measurement with mean value over 2 s / 5 s / 10 s Mean value mode for measurement of heavily fluctuating pressures. In the Configuration mode, a special function AVR 0:02, AVR 0:05 or AVR 0: 10 has been selected.

  • Page 18: Operation And Maintenance

    6 | Operation and maintenance G 1107 / G 1113 Operation and maintenance Operating and maintenance notices NOTE Pressure connections must be protected from soiling. Battery 6.2.1 Battery indicator For additional information, refer to the operating manual! 6.2.2 Changing battery Only use new, high-quality and suitable alkaline batteries! For additional information, refer to the operating manual! 18 / 25...

  • Page 19: Error And System Messages

    G 1107 / G 1113 Error and system messages | 7 Error and system messages Display Meaning Possible causes Remedy ---- Calculation not Measurement data Waiting for data collection possible acquisition is run- ning No display, Battery depleted Battery depleted Replace battery unclear System error...
  • Page 20 7 | Error and system messages G 1107 / G 1113 ERR.4 Display range has Incorrect display unit Correct setting been undercut Incorrect resolution Deactivate function F,NE Function active SYS ERR System error Error in the product Switch product on/off Replace batteries Send in for repair 20 / 25...

  • Page 21: Technical Data

    G 1107 / G 1113 Technical data | 8 Technical data G 1107 Measuring range Measuring range (Hi) Measuring range (Lo) -2000 .. +2000 Pa -20.00 .. +20.00 hPa -200.0 .. +200.0 hPa (mbar) (mbar) -2.900 .. +2.900 PSI -150.0 .. +150.0 mmHg -20.00 ..
  • Page 22 8 | Technical data G 1107 / G 1113 Housing Break-proof ABS housing Protection rating IP67 (pressure connections must be protected from soiling and moisture) Dimensions 108 * 54 * 28 mm without pressure connection L*W*H [mm] and 150 g incl. battery weight Operating conditions -20 to +50 °C;...
  • Page 23 G 1107 / G 1113 Technical data | 8 G 1113 Measuring range Measuring range (Hi) Measuring range (Lo) -2000 .. +2000 hPa -200.0 .. +200.0 hPa (mbar) (mbar) -2.000 .. +2.000 bar -29.00 .. +29.00 PSI -1500 .. +1500 mmHg (Torr) -200.0 ..
  • Page 24 8 | Technical data G 1107 / G 1113 Housing Break-proof ABS housing Protection rating IP67 (pressure connections must be protected from soiling and moisture) Dimensions 108 * 54 * 28 mm without pressure connection L*W*H [mm] and 150 g incl. battery weight Operating conditions -20 to +50 °C;...

  • Page 25: Service

    Service | 9 Service Manufacturer If you have any questions, please do not hesitate to contact us: Contact GHM Messtechnik GmbH GHM GROUP - Greisinger Hans-Sachs-Str. 26 93128 Regenstauf | GERMANY Email: info@greisinger.de | www.greisinger.de WEEE reg. no. DE 93889386 B-H88.0.2X.DK2-1.1...
