Final Assembly; Silicon Application - FrontLine FLBED9562LB Manual

12
8EQO16

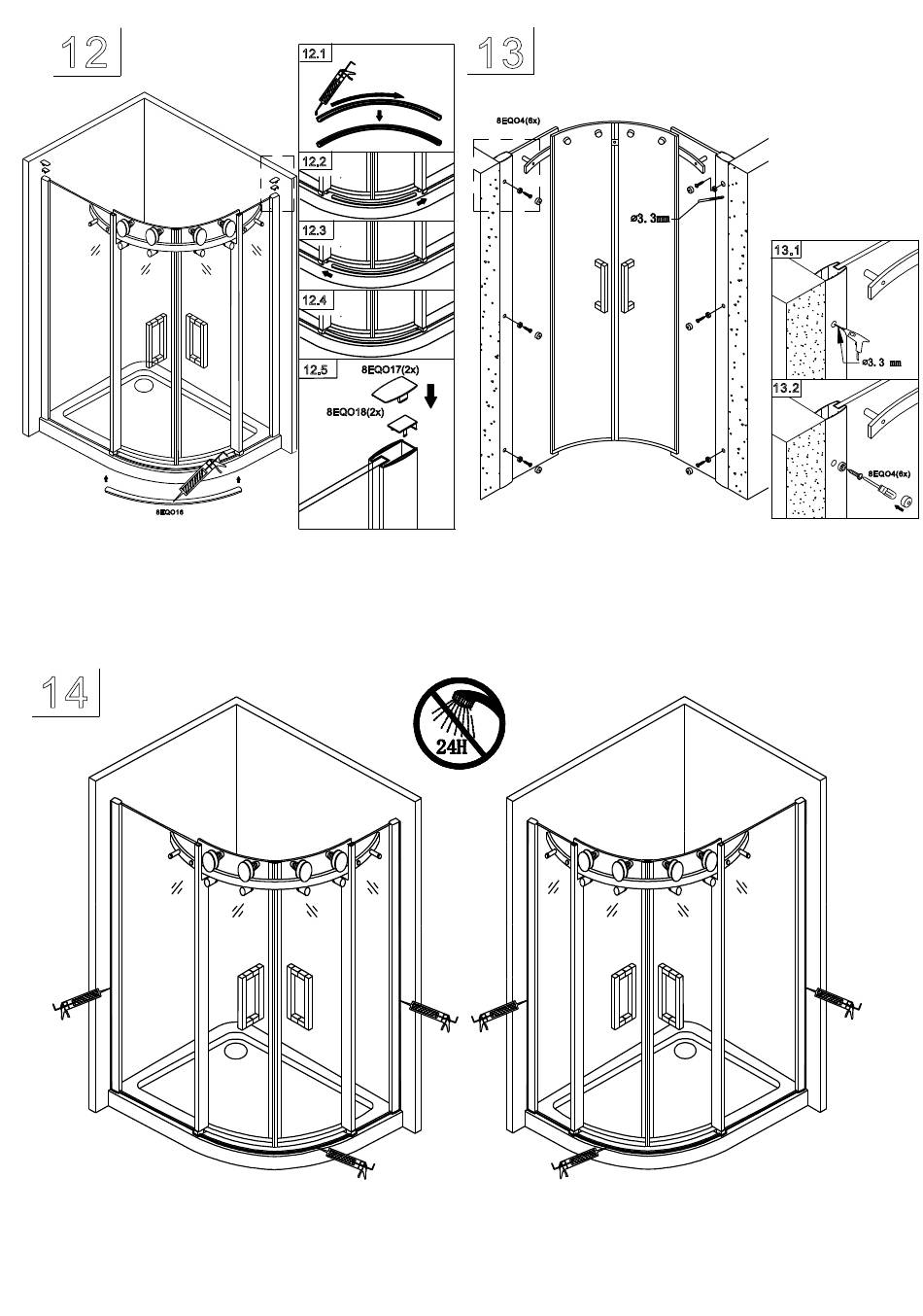

12. Put silicon glue on the back of bottom aluminum strip 8EQO16.
Put it on the tray edge between brackets 8EQO7.
Put the profile cover 8EQO18 on the vertical profile and put profile
cover 8EQO17 on the wall profile.
14
14. Finally, at all points connects to the wall, shower tray/floor andthe profiles, use silicone sealant only on the outside of the shower
enclosure.
This cabin can be installed handed. Above installation is based on right hand version. For left hand version, please follow up the step
in mirror direction.
12.1
12.2
12.3
12.4
12.5
8EQO17(2x)
8EQO18(2x)
For information and support phone: 0845 470 24 27
13
8EQO4(6x)
13. Drill the holes (6mm) on vertical profile into wall profile
8EQO3 and door profile. Use rubber washers and screws 8EQO4
to fix them in place. Press the screw caps over screws.
13.1
13.2
8EQO4(6x)
