FrontLine D Shape Cabin Manual

M A N U A L

D Shape Cabin（R9）

Table of Contents

Need help?

Do you have a question about the D Shape Cabin and is the answer not in the manual?

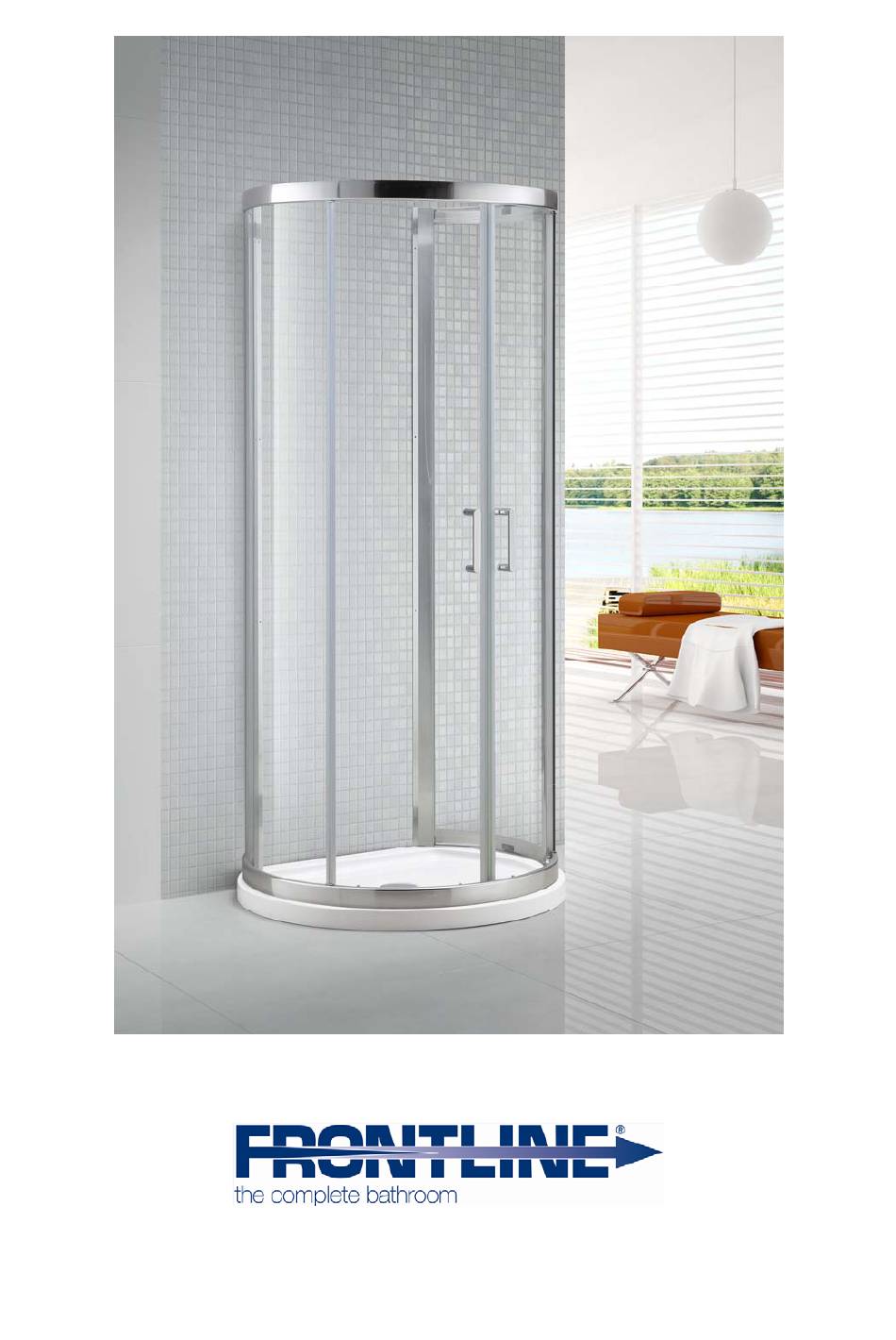

Page 1 M A N U A L D Shape Cabin（R9）...
Page 2 Installation instruction Aquaglass Purity D shape cabin Adjustment: -40 x (-25~ -20mm) x 1950mm Mounting preparation: After opening the package, read the instructions carefully, check whether all parts are present and there are no sign of shipping damage. If you find any problem, please contact your retailer directly.
Page 3 2.Drill the holes ((∮6mm) according to the marks and 1.Measure the ground with spirit level to make sure insert the wall plugs(6D9) into the holes ground is in level. Put the wall profiles (6D1) against the wall, ensuring the distance between the profile and the wall is correct.
Page 4 5. Put wall profile 6D1 on the 2 sides of frame. 6. Move the frame onto the wall. 8. Inside of cabin, drill the vertical profile into wall profile. 7. Inside of cabin, fasten wall profile on the wall with screw 6D6 and screw cap 6D10.
Page 5 11. Put spirit level on top of sliding panels. Adjust the rollers 12. Apply magnetic sealer 6D15 on the sliding door with driver to make sure sliding door vertical for better closing side. Apply vertical sealer on the other side of sliding effect.
