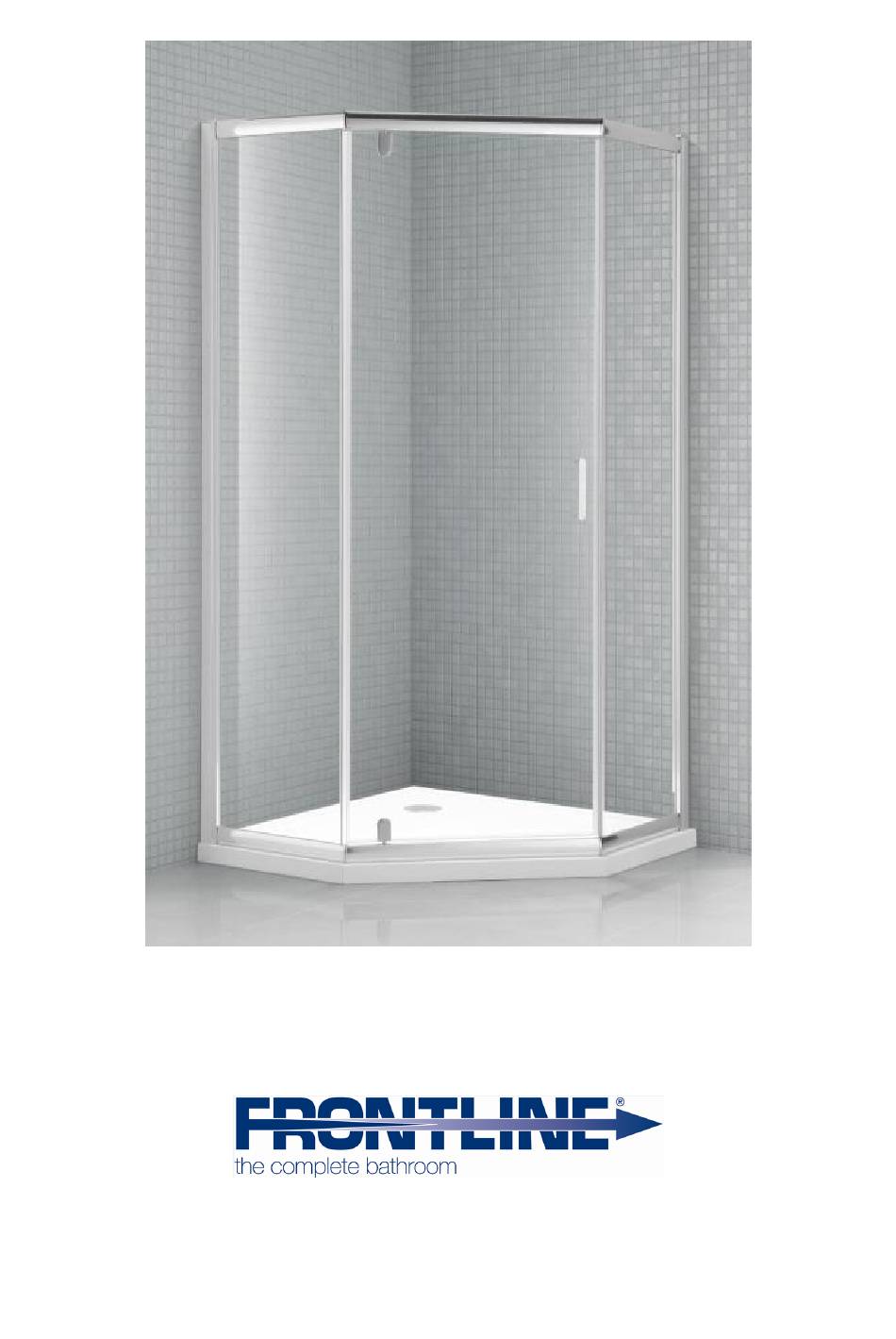

- Page 1 M A N U A L Pentangle...
- Page 2 Installation instruction Aquaglass Purity Pentangle Adjustment: (-20 ~0mm) x (-20 ~0mm) x 1950mm Mounting preparation: After opening the package, read the instructions carefully, check whether all parts are present and there are no sign of shipping damage. If you find any problem, please contact your retailer directly. Necessary tools: electric drill, masonry drill(∮6mm),drill(∮3.2mm),cross tip screw driver, spirit level, tape measure, rubber hammer, knife, pencil and silicone sealant.
- Page 3 Pentangle cabin is ok to mount in left hand or right hand. Please choose the direction you want and follow below steps. Below step is based on left version. For right version, please follow below steps in mirror direction. Measure the ground with spirit level to make sure the ground is in level. Put the wall profiles CP6D01(2X) against the wall, ensuring the distance between the profile and the wall is correct.
- Page 4 3. Fix wall profile on the wall with screw CP6D09(8X). 4. Apply silicon sealant into top and bottom plastic corner 5. Put top and bottom rail profile on the cabin, fix the piece as step 4.1 show. Insert CP6D15 into the top and rail profiles with screws CP6D09(8X).
- Page 5 8. Put the door CP6D04 on the cabin, and fix the door 9. Attach the magnetic sealer CP6D05 on the fixed panel. with CP6D15(2X). Please make sure 1pc washer on Please cut the bottom anti-water sealer CP6D07 into 2 each side of glass panel when mounting pivot. pieces according to the width of bottom glass panel edge.
- Page 6 14. From inside of the cabin, Attach concealed profile 15. From outside the enclosure, seal down the whole CP6D02(2X)on both cabin side as step 14.1 show. Put length of the join between the wall profile and the wall Please do not use showering within 24 hours after silicon top cap CP6D14(2X)on the vertical profile, put top cap CP6D13(2X)on wall profile.
