1

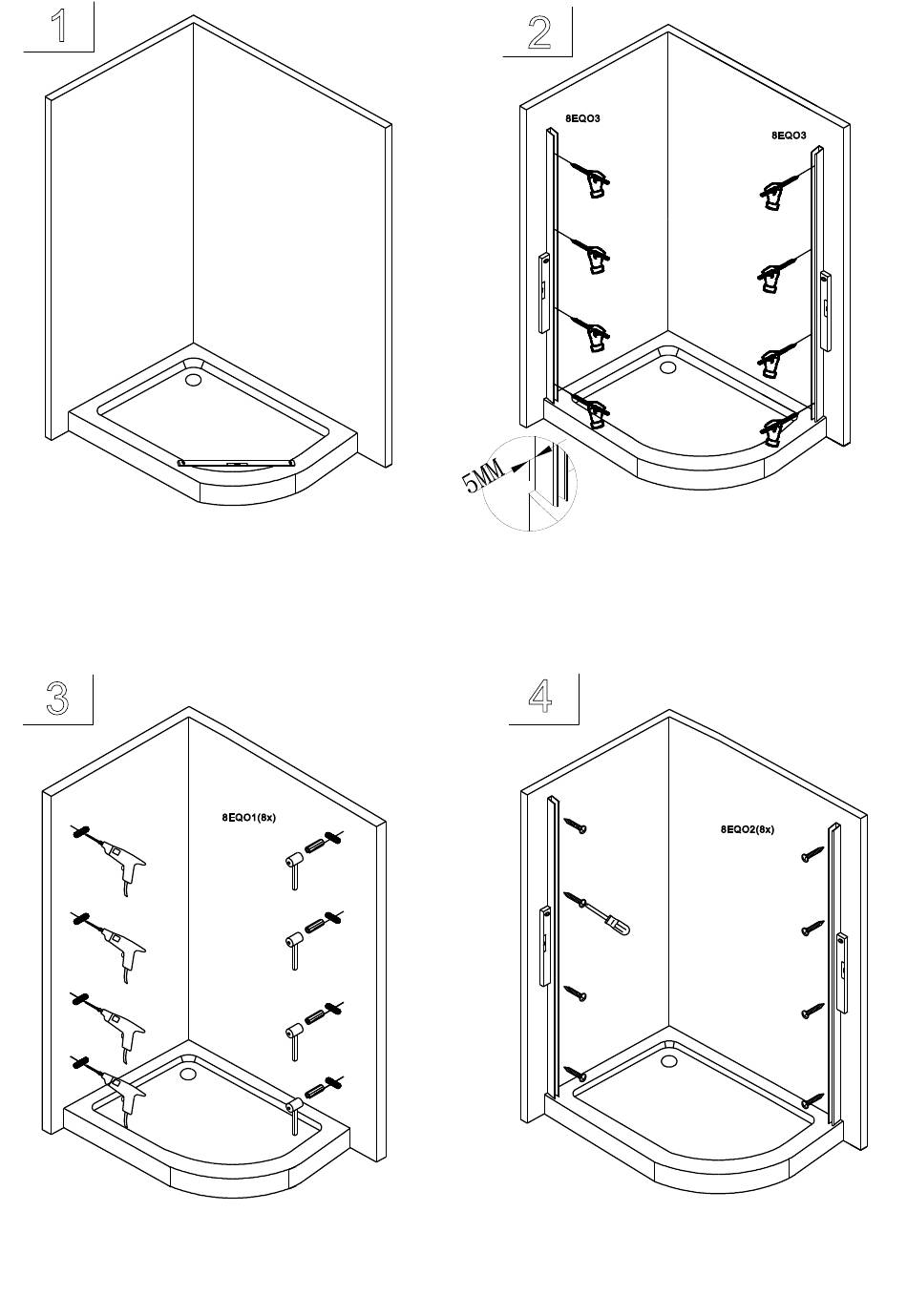

1. If the offset quadrant is placed onto a tray, first take a spirit
level to check whether the tray is placed horizontal. In case
the quadrant is installed directly onto the floor, please
proceed with step 2.
3
3. Drill the holes ( 6mm) according to the marks and
Ø
insert the wall plugs 8EQO1 into the holes.
8EQO1(8x)
2
8EQO3
2.Put the wall profiles 8EQO3 against the wall, ensuring the distance
between the profile and the wall is correct. Please make sure profile to
be 5mm away from outside edge. Adjust the profile to make sure it is
vertical by using a spirit level. Mark the holes on the wall.
4
4. Fix the wall profiles 8EQO3 with the St4x30 screws 8EQO2 to the
wall.
8EQO3
8EQO2(8x)
