5
8EQO5

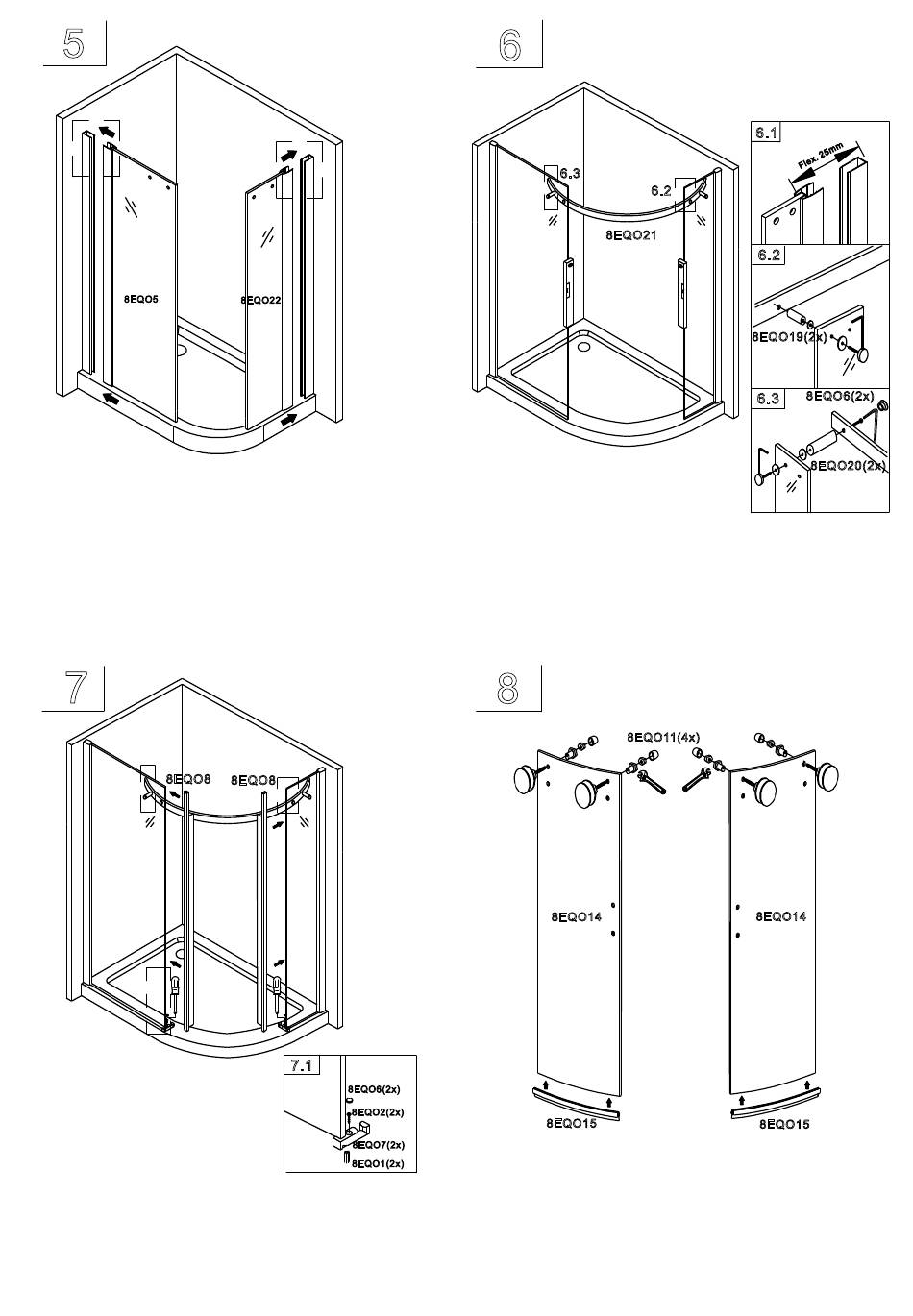

5.Insert the fixing glass 8EQO5 and 8EQO22 into the wall profiles.
7
8EQO8
7.Attach the vertical sealer 8EQO8 on the fixing panel 8EQO5. Put
the bottom bracket 8EQO7 on the fixing glass panel and mark the
hole for the bracket. Drill the holes ( 6mm) according to the marks
and insert the wall plugs 8EQO1 into the holes. Fix the bracket
8EQO7 with the St4x30 screws 8EQO2 to the tray. Put the cover
8EQO6 on screw.
Attach the vertical sealer 8EQO8 to fixing panel 8EQO5.
8EQO22
8EQO8
7.1
8EQO6(2x)
8EQO2(2x)
8EQO7(2x)
8EQO1(2x)
Ø
6
6.3
8EQO21
6. Adjust the position of vertical profile and wall profile to suitable
position and then mount rail profile 8EQO21 by assembling fixing
part 8EQO19 and 8EQO20 on fixing panels. Cover 8EQO6 on the back
of 8EQO20.
8
8EQO11(4x)
8EQO14
8EQO15
8. Assemble rollers 8EQO11 on sliding panel 8EQO14. Attach bottom
seal 8EQO15 on the bottom of glass.
6.1
6.2
6.2
8EQO19(2x)
8EQO6(2x)
6.3
8EQO20(2x)
8EQO14
8EQO15
