Summary of Contents for FrontLine FLBED9562LB

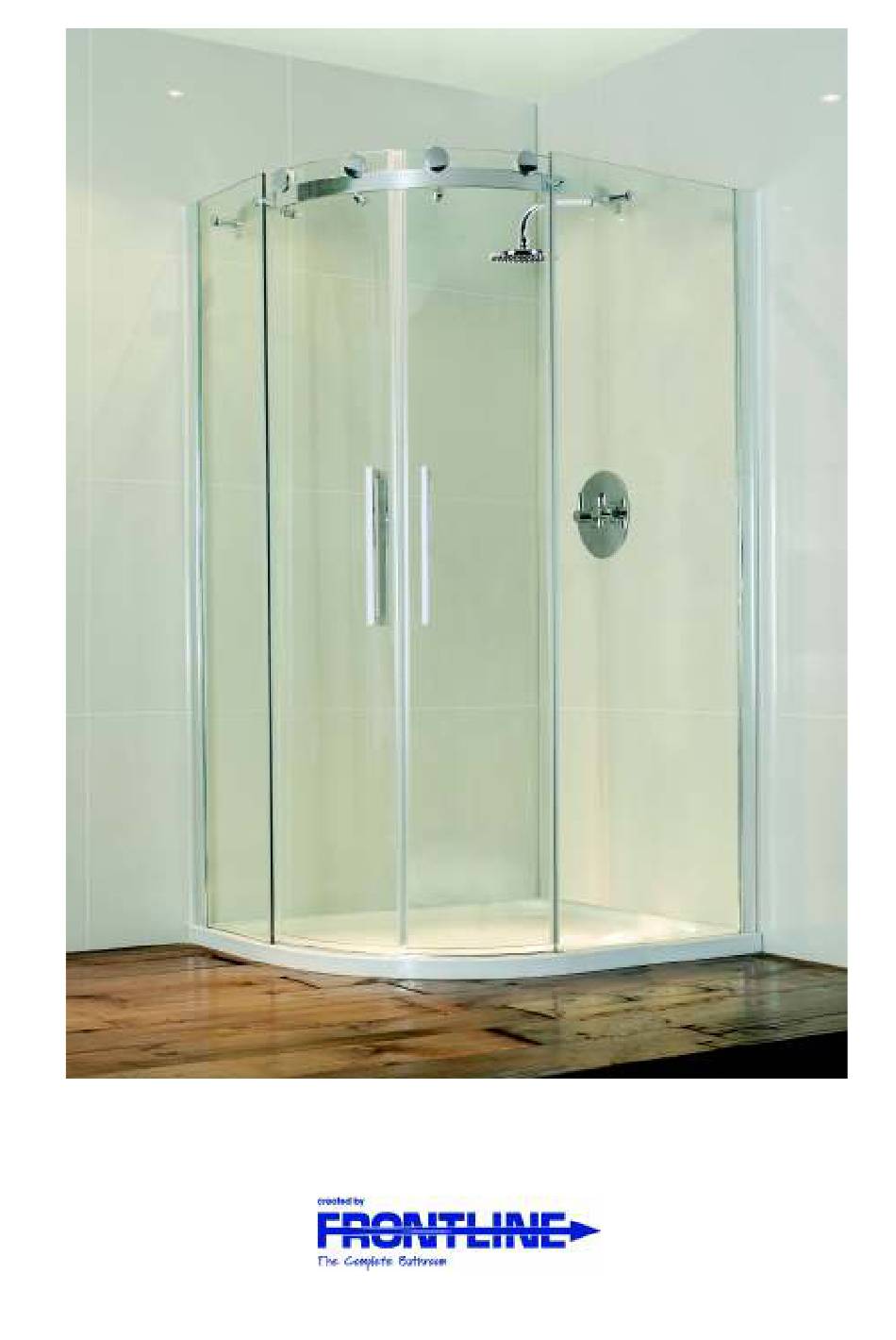

  • Page 1 m a n u a l EOS Offset Quadrant...
  • Page 2 Installation instructions: Offset Quadrant Adjustment range: (-25mm / -5mm) x (-30mm / -5mm) x 1900mm Mounting Preparation After opening the packaging, read the instructions carefully. Check whether all parts are present and there is no sign of shipping damage. If you find any problem, please contract your retailer directly. Necessary tools: spirit level electric drill...
  • Page 3 8EQO3 8EQO3 1. If the offset quadrant is placed onto a tray, first take a spirit 2.Put the wall profiles 8EQO3 against the wall, ensuring the distance level to check whether the tray is placed horizontal. In case between the profile and the wall is correct. Please make sure profile to the quadrant is installed directly onto the floor, please be 5mm away from outside edge.
  • Page 4 8EQO21 8EQO5 8EQO22 8EQO19(2x) 8EQO6(2x) 8EQO20(2x) 5.Insert the fixing glass 8EQO5 and 8EQO22 into the wall profiles. 6. Adjust the position of vertical profile and wall profile to suitable position and then mount rail profile 8EQO21 by assembling fixing part 8EQO19 and 8EQO20 on fixing panels. Cover 8EQO6 on the back of 8EQO20.
  • Page 5 8EQO12 8EQO9 8EQO9 10.Attach magnetic strip 8EQO12 to sliding panel 8EQO14. 9.Put the sliding panel on the rail profile. Attached vertical sealer 8EQO9 to the other side of sliding Adjust the top roller to make sure sliding panel is vertical to the rail panel.
  • Page 6 12.1 8EQO4(6x) 12.2 12.3 13.1 12.4 12.5 8EQO17(2x) 13.2 8EQO18(2x) 8EQO4(6x) 8EQO16 12. Put silicon glue on the back of bottom aluminum strip 8EQO16. 13. Drill the holes (6mm) on vertical profile into wall profile 8EQO3 and door profile. Use rubber washers and screws 8EQO4 Put it on the tray edge between brackets 8EQO7.
