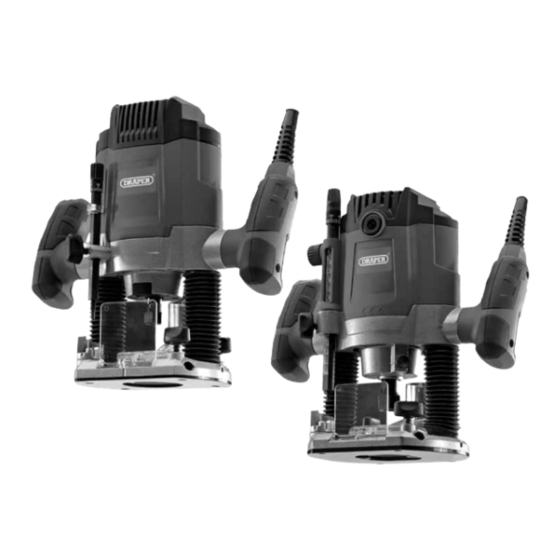

This product is suitable for enthusiasts and tradespersons alike. Any application other than that it was intended for is considered misuse. SPECIFICATION Stock No’s............. 02519 ............02520 Part No’s............. R8/1200D ........... R12/1800D Rated voltage ............ 230V~50Hz ........230V~50Hz Rated input ............
HEALTH AND SAFETY INFORMATION GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE Warning! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.
HEALTH AND SAFETY INFORMATION f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
In the event of an electrical or mechanical malfunction, immediately switch off the router and disconnect the power lead from the mains supply, and contact Draper for assistance. RESIDUAL RISK Important: Although the safety instructions and operating manuals for our tools contain extensive instructions of safe working with power tools, every power tool involves a certain residual risk which can not be completely excluded by safety mechanisms.
HEALTH AND SAFETY INFORMATION CONNECTION TO THE POWER SUPPLY Caution: Risk of electric shock. Do not open. This appliance is supplied with an approved plug and cable for your safety. The value of the fuse fitted is marked on the pin face of the plug. Should the fuse need replacing, ensure the substitute is of the correct rating, approved to BS1362 and ASTA or BS Kite marked.
Lay the contents out and check them against the parts shown below. If any part is damaged or missing, please contact the Draper Help Line (the telephone number appears on the Title page) and do not attempt to use the product.
PREPARING THE ROUTER Note: Remove the plug from the socket before carrying out adjustment, servicing or maintenance. (17.1) PARALLEL GUIDE FENCE – FIG. 1 (17.2) − If not already assembled, loosen the 2 fence locking screws (17.1) on the parallel guide body and slide the 2 guide rods (17.2) though the mounting holes.
If not already in place, slot the screen (14) into the recess and fasten, using the screw provided. FITTING & REPLACING ROUTER BITS – FIG. 4 Stock No.02519 is designed for use with 6mm, • 8mm and 1 ⁄ 4" shank router bits only. (14) Stock No.02520 is designed for use with 1 ⁄...
(the difference between the two measurements) and securely tighten the depth guide locking screw (6). Stock No. 02519 Example: The scale reads 23. After adjustment reads 33 – the plunge depth will be 10mm.
1mm plunge depth. When set, take another pass along the cut. FIG. Note: Remove the plug from the socket before Stock No. 02519 carrying out adjustment, servicing or maintenance. PARALLEL GUIDE ROUTING – FIG. 9 Ensure the edge along which the guide is going to (16.1)
BASIC ROUTER OPERATIONS PIVOT ROD TRAMMEL – FIG. 11 − Remove one of the 2 rods (17.2) from the parallel fence guide (17). − Loosen the parallel fence guide locking screw (20.1) (9) from the front channel. − Insert the rod into the rod channel. −...
10. MAINTENANCE AND TROUBLESHOOTING 10.1 MAINTENANCE Regular inspection and cleaning reduces the necessity for maintenance operations and will keep your tool in good working condition. The motor must be correctly ventilated during tool operation. Avoid blocking the air inlets and vacuum the ventilation slots regularly.
11. DISPOSAL 11.1 DISPOSAL – At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. – Contact your local authority for details of collection schemes in your area. In all circumstances: •...
12. EXPLANATION OF SYMBOLS 12.1 EXPLANATION OF SYMBOLS WEEE – Waste Electrical & Electronic Equipment. Read the instruction manual. Do not dispose of Waste Electrical & Electronic Equipment in with domestic rubbish. Continuous A-Weighted Sound Wear face mask and safety Pressure Level (example shown).
