Arylic A100 User Manual

Wireless multiroom full digital hifi amplifier

Advertisement

Quick Links

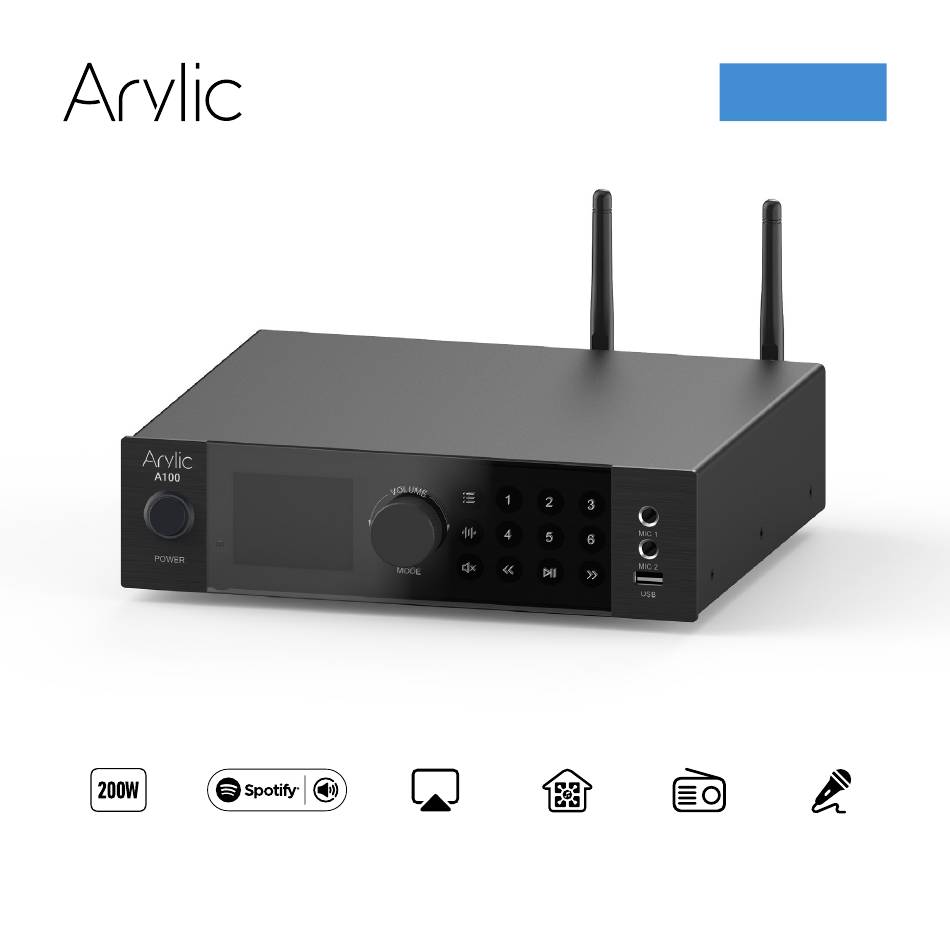

A100
User's Manual
Wireless Multiroom Full Digital HiFi Amplifier
100Wx2ch
Spotify Connect
AirPlay
Multi-Room
FM Radio
KTV

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Arylic A100

  • Page 1 A100 User's Manual Wireless Multiroom Full Digital HiFi Amplifier 100Wx2ch Spotify Connect AirPlay Multi-Room FM Radio...
  • Page 3: Table Of Contents

    Table of contents 1. Introduction ............................1 2. What's in the box ...........................1 3. Specification ............................2 4. Front Interface ............................3 5. Back Interface ............................4 6. Touch Button functions ........................5 7. How to use ............................6 7.1 App download ..........................6 7.2 Network Connection ........................7 7.3 Bluetooth Connection ........................7 7.4 Line in Connection ..........................7 7.5 Optical in Connection ........................7...
  • Page 4: Introduction

    1. Introduction A100 is a WiFi and Bluetooth 100W x2ch amplifier comes with many analog and digital inputs including line input, phono input, optical input and coaxial input. It also features FM radio for local radio stations. A100 also build with 2 microphone jacks for broadcasting voice message or even for KTV. You can stream music from your smart device, Spotify or AirPlay.
  • Page 5: Specification

    Build-in PSU 115-230V AC 50/60Hz Size 24.8x21.5x6.4 cm Weight 3.9 kg Music Sources Streaming Protocol Spotify Connect, AirPlay, Qplay Internet Radio Arylic Radio, YouRadio Local Music Mobile device music, USB flash drive music files, FM Radio Free Mobile APP Go Control...
  • Page 6: Front Interface

    4. Front Interface 1. Power Button: For power on/off 2. Display Panel: For display status and menu options 3. Volume Knob: Turn left to reduce volume / Move upward in menu Turn right to increase volume / Move downward in menu Press to switch input mode / Select menu item 4.
  • Page 7: Back Interface

    5. Back Interface 1. BT Antenna: for Bluetooth connection 2. Phono in: analog input for connection from turntable 3. Line out: analog output for connection to external device 4. FM Antenna: for receive FM radio channels 5. Coaxial in: digital input for connection from external device 6.
  • Page 8: Touch Button Functions

    6. Touch Button functions 1. Mode Menu button: 4. Number 1-6 buttons: - Single click to open the current mode menu function. - In WiFi mode: preset 1-6 channel/song list - Long press to restore factory settings. - In FM mode: preset 1-6 FM channels, single click to play the stored channel, double click to cancel the channel, long - In WiFi mode: the interface will prompt the user to press to save the current channel to the corresponding...
  • Page 9: How To Use

    7. How to use 7.1 App download Download the Go Control application from App Store for iOS based devices and Google Play Store for Android based devices. Features: 1. Manage multiple devices in one APP 2. Setup WiFi connection 3. Change audio input mode 4.
  • Page 10: Bluetooth Connection

    7.3 Bluetooth Connection 1. Switch the device mode to Bluetooth, by press the volume knob and select Bluetooth or use APP to switch mode. 2. On your mobile device Bluetooth connection settings, find and select A100_XXXX and connect to it To disconnect the current connection, press the Menu button on the front panel and select YES.
  • Page 11: Usb Back

    USB flash drive, A100 will start from the last song being played when you enter this mode again. If you use Go Control APP, you can access the song list which list out all the music files stored in the USB flash drive.
  • Page 12: Fm Radio

    7.10 FM Radio A100 will automatically search for FM radio channels and list out all the channels it can detect. You can access the list by pressing the Menu button on the front panel, the channel will change when you scroll through the list.
  • Page 13: Spotify Connect

    7.11 Spotify Connect A100 support Spotify Connect function, so you can find A100 in the device list on the Spotify application as output device. Please note, you need to use Spotify premium account and one account can only stream to one device at the same time.
  • Page 14: Restore Factory Settings

    You can update the device by using our Arylic Update Tool. It is a windows software and only works for Windows 10 or above. Once you finished download the Update Tool, use a USB Type-A to USB Type-A cable to connect A100 (Front USB port) to your PC.
  • Page 16 @Copyright 2024 by Arylic. All Rights Reserved. The information contained in this guide is believed to be accurate and reliable. Arylic assumes no responsibility for any errors contained in this guide. Arylic reserves the rights to make changes in the specifications and/or design of the above mentioned product without prior notice.
