StarTech.com CDP2HVGUASPD Quick Start Manual

USB-C to HDMI/VGA + GbE + USB-A + PD 3.0 and Presentation Mode

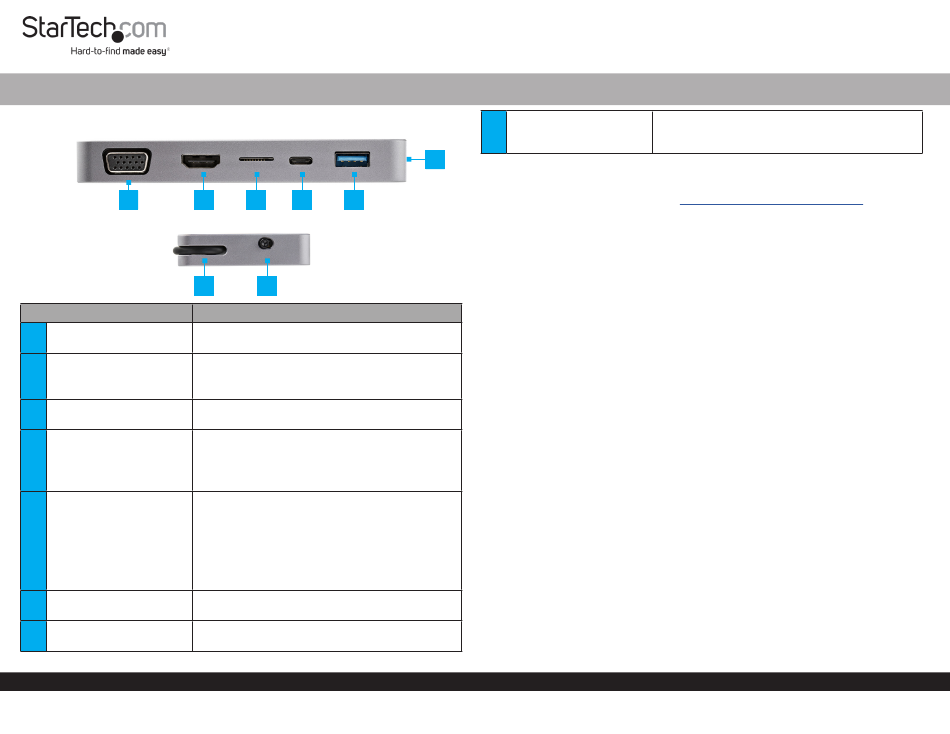

Product Diagram (CDP2HVGUASPD)
1
Component
1 VGA Port
2
HDMI Port
3 MicroSD Card Slot
4 USB-C Port
5 USB-A Port
6 RJ45 Port
7
Integrated USB-C Cable
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
2 3 4 5
7 8
Function
Used to connect a Display Device to the
•
Docking Station.
Used to connect a Display Device to the
•
Docking Station.
Maximum Resolution = 4K30.
•
Used to connect an MicroSD Card to the
•
Docking Station.
Used to connect a USB Device to the Docking
•
Station.
Power Delivery (PD) 3.0 Specification.
•
Charge Host Computer with up to 85W.
•
Used to connect a USB Device to the Docking
•
Station.
Supports BC1.2 5V/1.5A (7.5W) charging.
•
Note: When using Bus Powered mode to power
the Docking Station, the Docking Station needs
to be connected to a 15W USB-C port on the Host
Laptop, in order to use the fast charge function.
Used to connect a Network Device to the
•
Docking Station.
Used to connect the Docking Station to the
•
Host Computer.
8
Presentation Mode Switch
6
Requirements
For the latest requirements, please visit
Powering the Docking Station
Bus Powered
Connect the Integrated USB-C Cable on the Docking Station to a USB-C Port on
•
the Host Computer.
PD Passthough
Connect a USB-C Power Adapter (sold separately) to the USB-C Port on the
1.
Docking Station.
Note: The USB-C port on the Host Computer must support USB Power Delivery to
power and charge the Host Computer.
Connect the Integrated USB-C Cable on the Docking Station to a USB-C port on
2.
the Host Computer.
Connect the USB-C Power Adapter to an AC Electric Outlet.
3.
Connecting the Docking Station
Connect a USB-A Device to the USB-A Port on the Docking Station.
1.
If using the Bus Powered method to power the Docking Station, you can connect a
2.
USB-C Device to the USB-C Port on the Docking Station.
For information regarding the MicroSD Card Slot, see the Inserting/Removing
3.
MicroSD Card section.
Connect an HDMI Cable to the HDMI Port on the Docking Station and the other
4.
end to and HDMI port on the Display Device.
Connect an VGA Cable to the VGA Port on the Docking Station and the other end
5.
to and VGA port on the Display Device.
Note: If two Displays are connected to both the HDMI and VGA Ports at the same
time, the Display connected to the HDMI Port will take priority.
Connect a CAT5 Cable (or better) to the RJ45 Port on the Docking Station and the
6.
other end to an RJ45 port on a Network Device.
